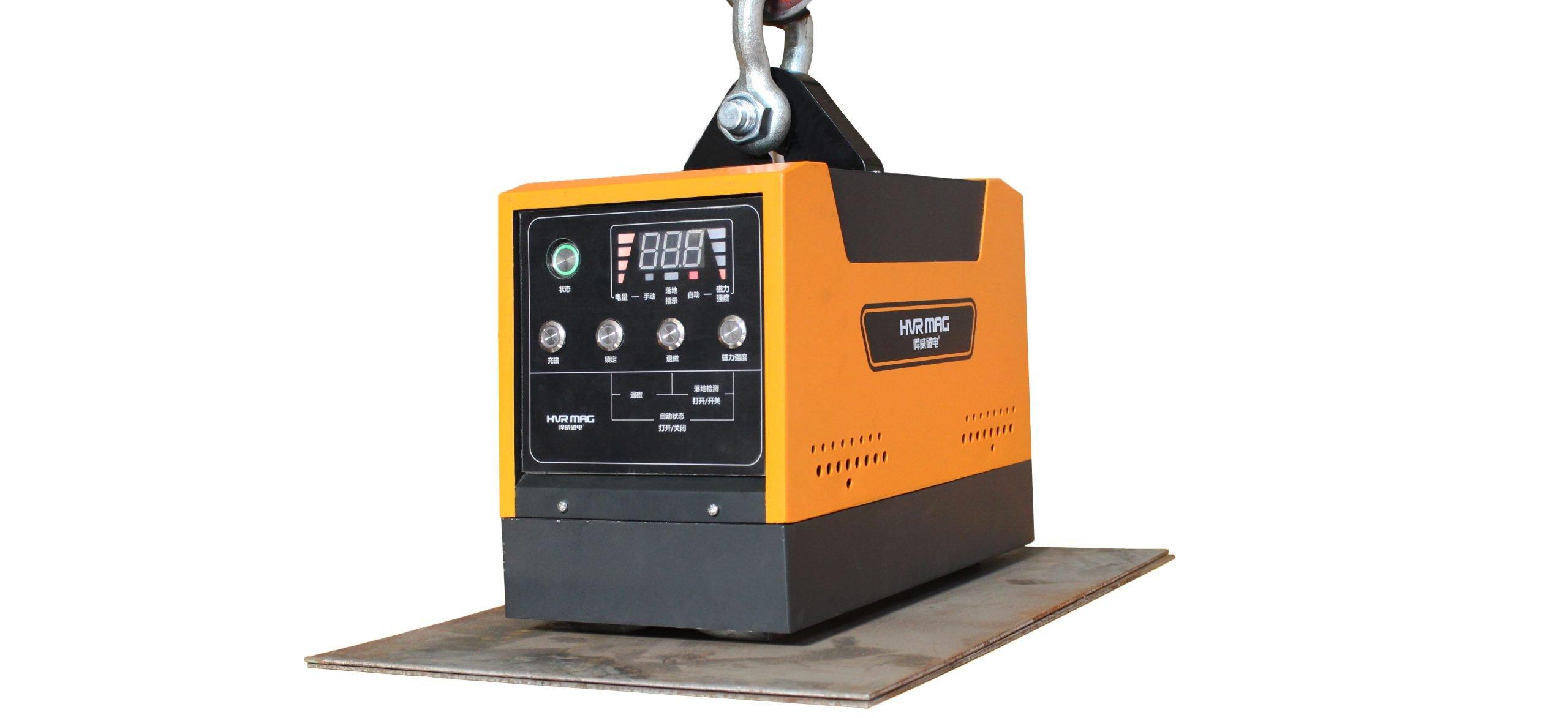

Battery Powered Magnetic Lifter 500kg-5,000kg
HBEP Series

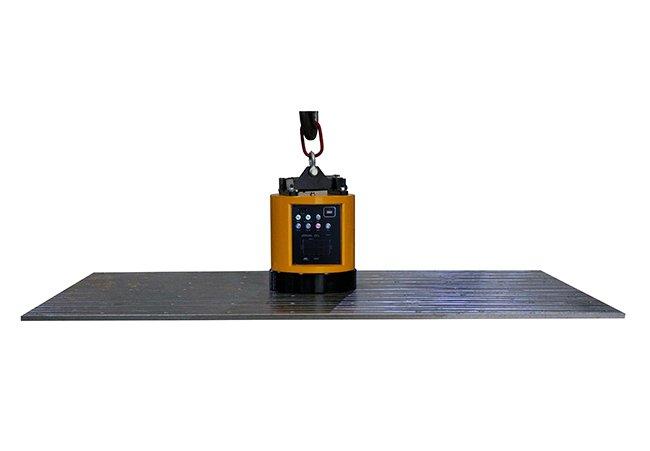

Battery Powered Magnetic Lifter 500kg-5,000kg integrated rechargeable battery group, light weight, small size, strong maneuverability, and flexible working in different condition. Allows users to activate specific magnetic zones for targeted material removal.
- No Power Supply Cable: Eliminates the need for a power supply cable for flexibility in operation.
- Extended Battery Life: Low power consumption allows for over 700 operational cycles per charge.
- Built-In Charger: Charges the battery in 5 to 8 hours using a standard 220V / 50Hz power supply.
- Fast Unloading Cycle:Features an automatic cycle for swift unloading in cutting machine operations.
- Remote Control: Digital push buttons and radio remote control
- High Safety: 3:1 safety factor.
- Battery Powered Magnetic Lifter 500kg-5,000kg Datasheet
| Model | Rated Lifting Force (kg) | Min. Plate Thickness (mm) | Working Voltage (DC:V) | Recharge Time (H) | Overall Dimension (mm) | Weight (kg) | ||||
| A | A1 | B | B1 | H | ||||||
| HBEP-005 | 500 | 4 | DC60 | 6-8 | 370 | 310 | 190 | 130 | 382 | 51 |
| HBEP-010 | 1000 | 6 | DC60 | 6-8 | 370 | 320 | 240 | 190 | 414 | 73 |
| HBEP-015 | 1500 | 6 | DC60 | 6-8 | 426 | 386 | 240 | 200 | 421 | 88 |
| HBEP-020 | 2000 | 8 | DC60 | 6-8 | 470 | 410 | 330 | 270 | 418 | 118 |
| HBEP-030 | 3000 | 10 | DC60 | 6-8 | 638 | 578 | 346 | 286 | 431 | 185 |
Battery Powered Magnetic Lifter 500kg-5,000kg

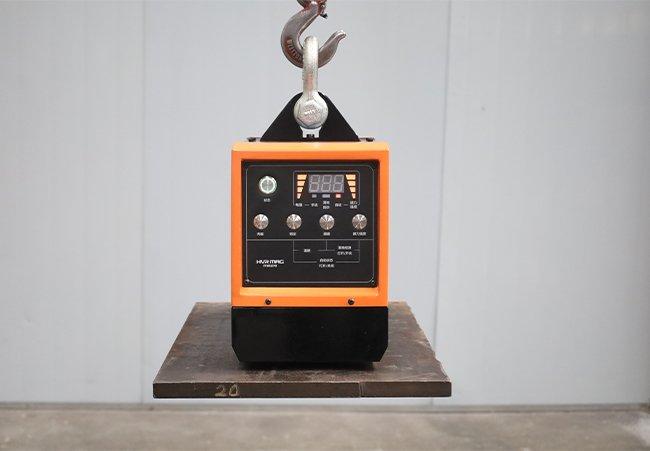

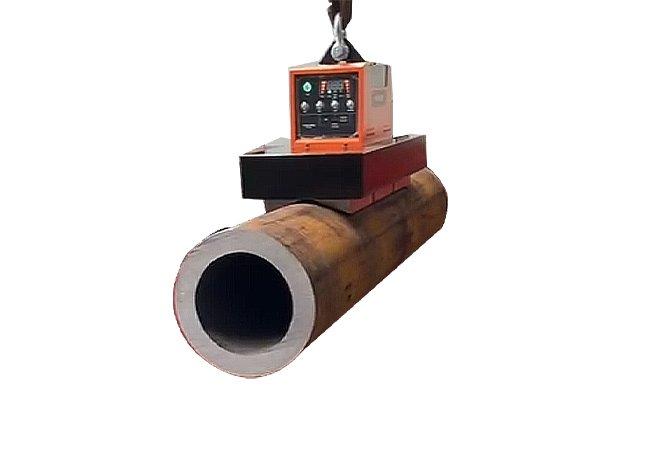

The HBEP Electro Permanent Battery Powered Magnetic Lifter 500kg-5,000kg represents a comprehensive solution for the manipulation of steel components weighing between 0 and 5,000 kg. This advanced magnet functions independently, thereby removing the necessity for a power supply cable.
It utilizes electric current solely for the purpose of reversing the orientation of magnet molecules, while the holding force is generated by permanent magnets. This design results in zero power consumption during the movements, leading to considerable energy savings.
Battery Powered Magnetic Lifter 500kg-5,000kg Advantages

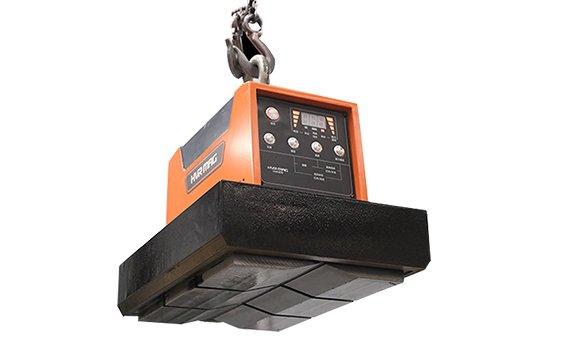

Battery Powered Magnetic Lifter 500kg-5,000kg utilizes electro-permanent magnets that require only a brief electrical pulse to activate and maintain a strong magnetic force without continuous power, ensuring safety even during power outages.
- No-Current Safety:Magnetic force holds in power outages
- Electro-Permanent Magnet: Suspended to conform perfectly to the steel sheet’s surface.
- High advanced SPC-system (System Performance Check)
- Lamp Block Indicator:allowing movement only when the green light is steadily illuminated.

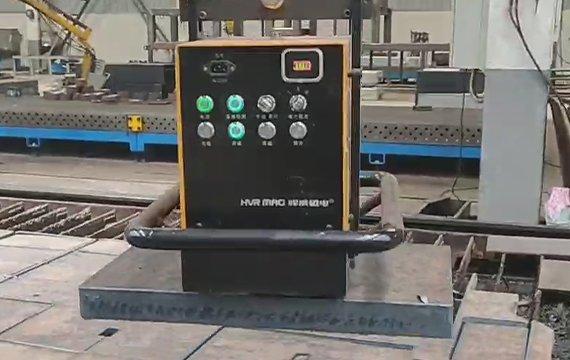

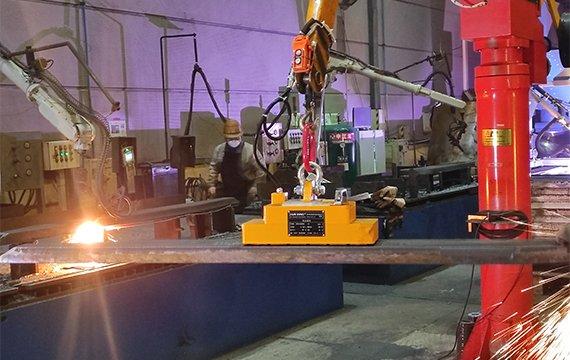

Battery Powered Magnetic Lifter 500kg-5,000kg Welding Application
Battery Powered Magnetic Lifter 500kg-5,000kg capable of handling weights from 0-5,000kg, are instrumental in welding applications by efficiently managing the movement of heavy steel components. These magnets ensure safe and precise placement of steel plates and sections, crucial for accurate alignment in welding processes.
They reduce manual handling, minimize the risk of work-related injuries, and protect the material’s surface integrity, which is essential for the quality of the final weld.

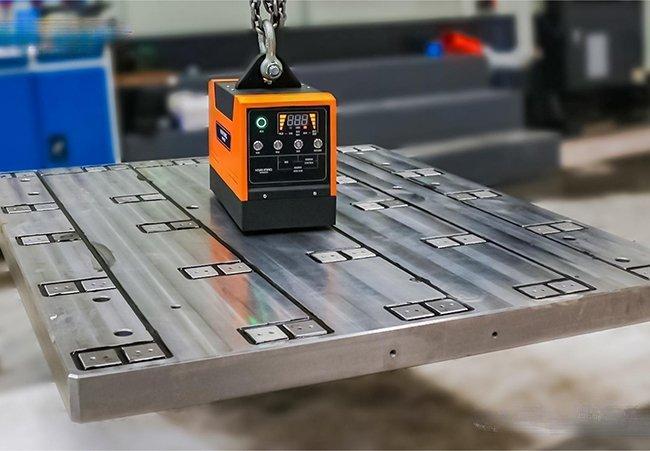

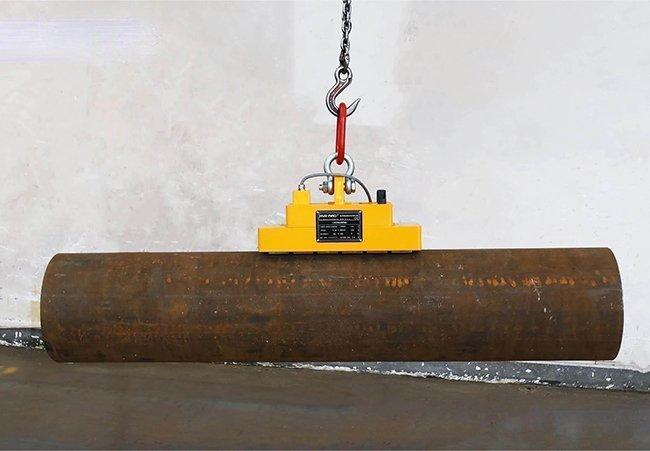

Battery Powered Magnetic Lifter 500kg-5,000kg Mechanical Application
Battery Powered Magnetic Lifter 500kg-5,000kg, is essential in heavy machinery manufacturing for the secure and efficient handling of large steel components. These magnets facilitate precise placement and positioning of heavy steel plates and rounds, critical for assembly and construction processes.
While reducing manual labor, enhancing safety, and ensuring the structural integrity of parts, which is critical for the durability and performance of heavy machinery.
