Why you can trust HVR MAG Magnetic Gripper
- Magnetic gripper can handle a variety of material sizes and shapes
- Magnets do not change their magnetic state when power failure
- Control unit could be integrated to the PLC system of robot
- Less energy consumption
- Low-maintenance
- Compact and powerful
Magnetic Gripper we make

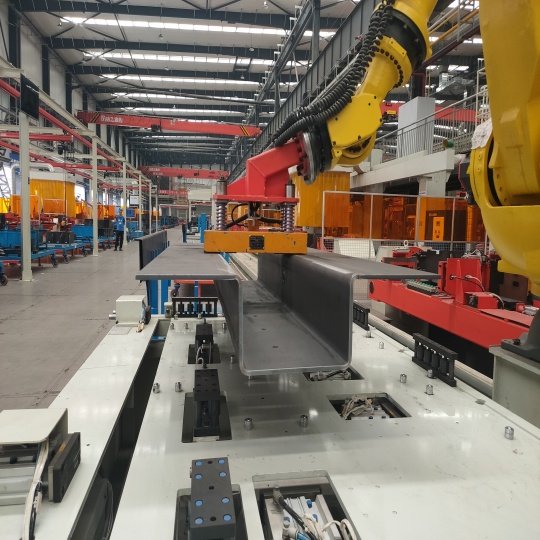

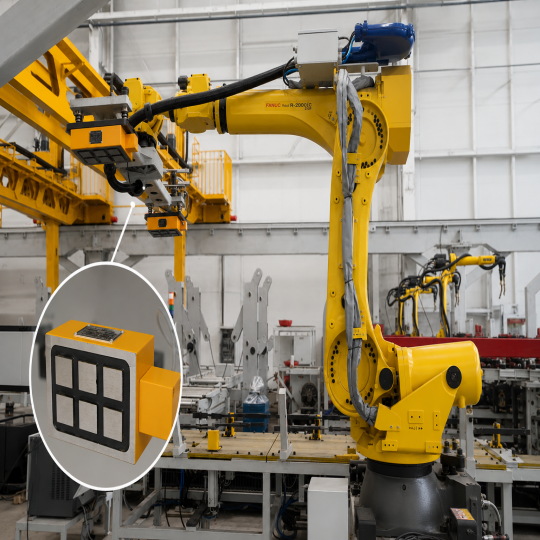

HVRMAG’s magnetic gripper can be used as magnetic grippers to pick, lift, load, place, transfer of ferrous parts for robot arm and automation line as an end-of arm-tool.
The end-of-arm tools can handle kinds of steel parts with high precision, reliability, operate stably in various automation scenarios.

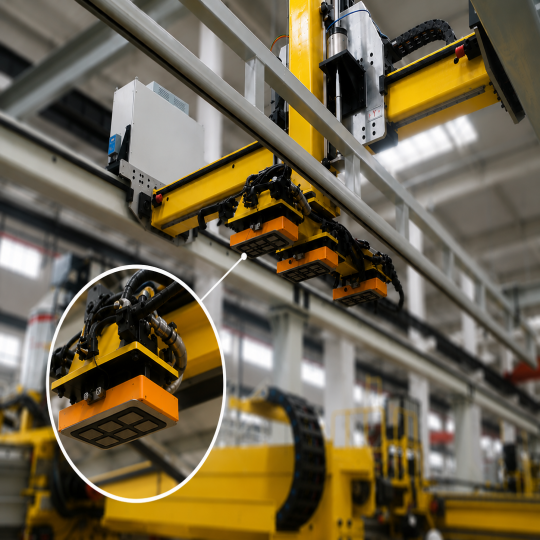

Magnetic Gripper can quickly and reliably grip metal workpieces, reducing handling time and improving production efficiency.
Fixture tooling can accurately locate workpieces and ensure accurate docking of various components during welding.
Product By Function
Designed for specific needs, HVRMAG’s magnetic gripper offer a range of functionalities and different working conditions such as used for loading and unloading in cutting system, welding,bending,palletizing,etc.

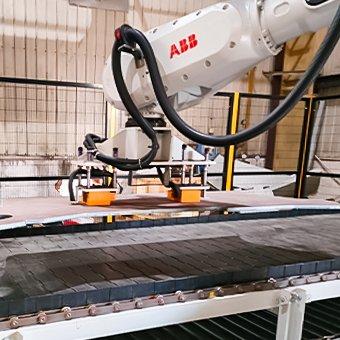

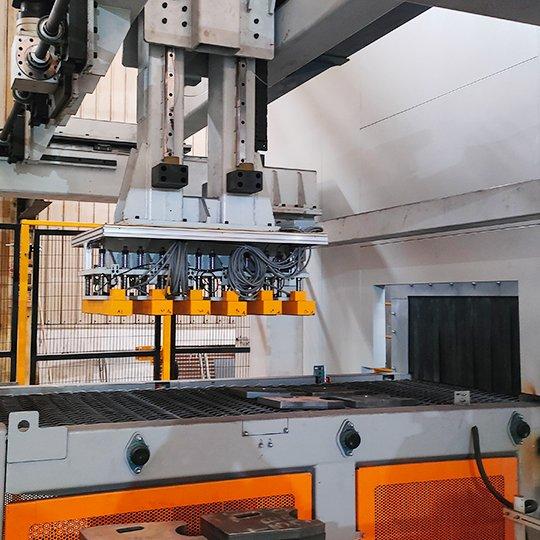

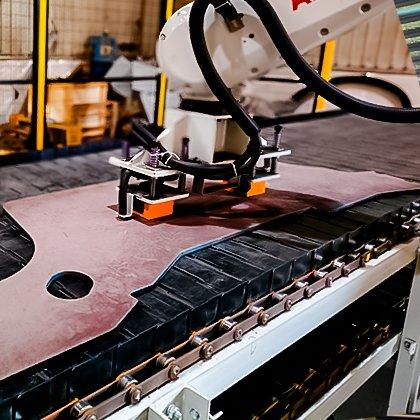

In the loading process, raw materials can be quickly and accurately placed in designated locations. In the unloading process, the cut workpiece can be safely removed, ensuring the smooth progress of the entire process.

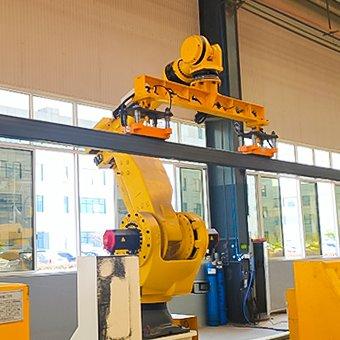

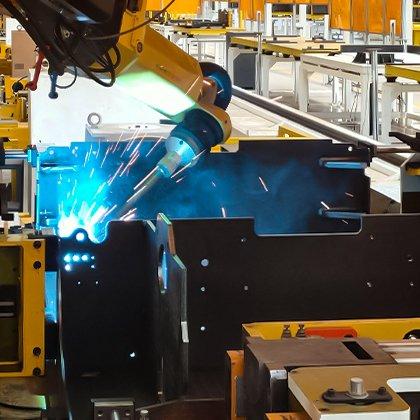

It has strong magnetic force and can firmly fix the workpiece during the welding process, ensuring the accuracy and stability of the welding. And it can adapt to workpieces of different shapes and sizes.Make sure welding quality.

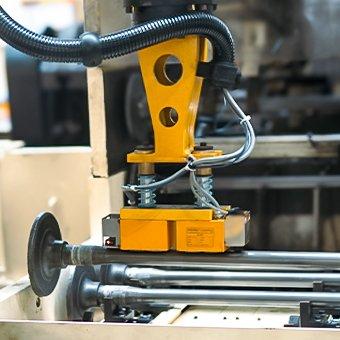

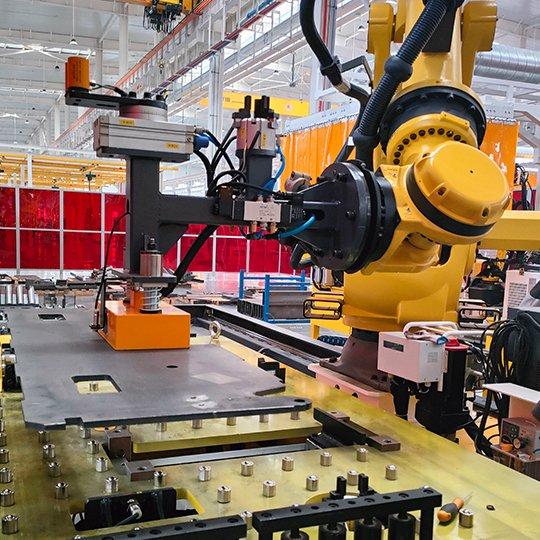

Powerful magnetic force ensures the stability of the workpiece during the bending process, and it can also reduce vibration and displacement during the bending process, lower the scrap rate, and improve production efficiency.

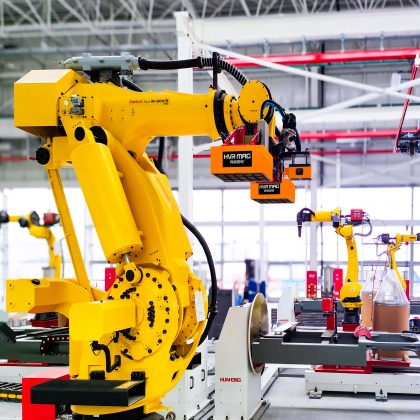

It can quickly and accurately place workpieces on pallets, ensuring the stability and neatness of palletizing. The highly precise operation greatly improves palletizing efficiency.Reduced the burden of manual operation.
Quality Production
HVR MAG compliance the ISO 9001 and ISO 14001, equipped advanced production equipment to assurance capacity and quality control , quality test before shipping, aim to delivery the high quality magnetic gripper to global customers on time.
Customization Service
With a experienced R&D team and over 40 patents, all of HVR MAG Electro Permanent Lifting Magnet are customized according to the customer local standard and reality usage necessary.Not only provide standard magnet model, but also provide customized magnetic gripper solutions according to different application.
What is HVRMAG Magnetic Gripper
Magnetic gripper is a transfer device for automation and robots, utilizing electro permanent magnetic modules and magnetic grippers for manipulation, clamping and moving of workpieces with various shapes and weight.
The technology of the double magnet uses electrical power only for few seconds in activation “MAG” and deactivation “DEMAG”cycles. The workpiece will not fall down due to the power outage.
Followed with “Industry 4.0” trend, magnetic grippers would be more and more widely applied to intelligent plant in the near future in automation applications such as:
- Transfer lines • Conveyor lines
- General engineering • Pick and place equipment
- Robotics • Packaging machinery
- Palletising/depalletising systems
Efficient, Precise, and Safe handling of Steel Material With Magnetic Gripper
- Energy Saving：Only uses electricity in MAG & DEMAG phase, saving energy up to 95%
- High Efficiency：Magnetization/demagnetization with in 2 seconds
- Flexible & Reliable：Unique structure consisting of dual magnetic source
- Safety First：Magnetic force can remain even in a sudden power failure
- Maintenance-Free：No moving parts inside nearly no maintenance cost
- Deformation-Free：Uniformly distributed magnetic force
Only uses electricity in MAG & DEMAG phase, saving energy up to 95%.
Short cycle time,magnetization/demagnetization with in 2 seconds.
Lightweight structure to maximise the end-of-arm capacity.
Magnetic force can remain even in a sudden power failure.
No moving parts inside nearly zero maintenance cost.
Customised design for perfect pick-up of any workpiece.
Resource
Click on the link to learn more.Choose the appropriate magnet based on your working conditions
Click on the link to learn more about our products. Fill in the form below to receive the brochure directly to your email.
Click on the link to learn more about our magnetic slolutions in all kinds of application.
HVR MAG Advantages
HVR MAG holds over 40 international and domestic patents. It owns an advanced manufacturing facility with an area of 24,000 square meters, and 45% of its products are exported globally.Let HVR MAG know your working conditions and technical requirement, HVR MAG will provide you with a customized magnetic gripper solution.HVR MAG’s local agents can provide technical services, and the Technical Consulting Window available at any time from HVR MAG.
Realisations & Achievements
The professional magnetic gripper solution and quotation will be provided based on your applications and requirements.

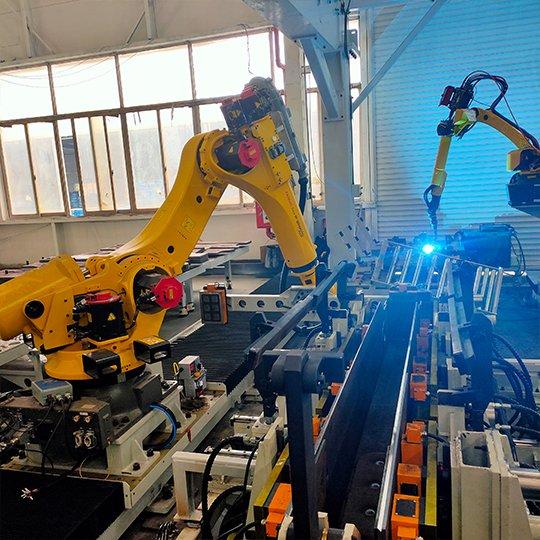

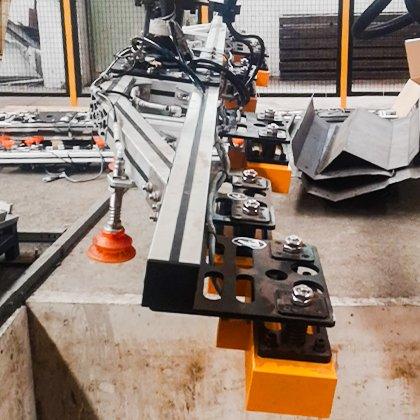

Magnetic Grippers will be helpful for material picking&place in the automation industry. For example, in the field of automotive applications, end-to-end tools can provide assistance in various processes of automobiles.

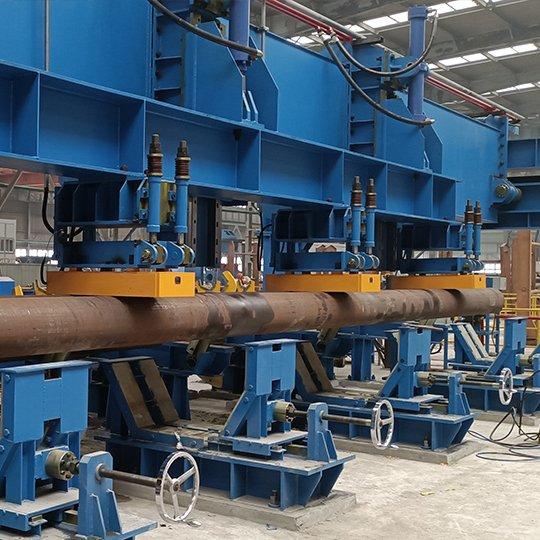

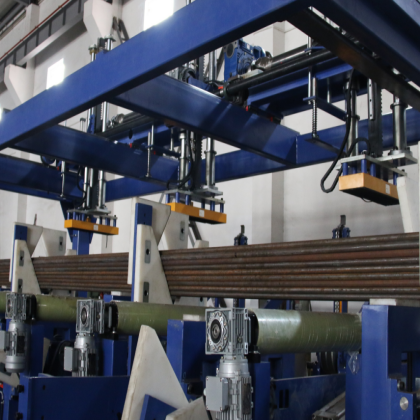

Magnetic Gripper can also provide great assistance in the energy industry, such as the handling and palletizing of various oil and gas pipes. End-of-arm tools can efficiently automate the stacking of steel pipes. This precise stacking can optimize storage space, ensure that steel pipes are neat and orderly, and facilitate subsequent use.
- For Thick plates
- For Thin Plates
- For Pipes&round bars
- Round shape magnent
| Model | Rated lifting force（thickness＞16mm) | Applicable thickness | L | W | H |
| HEPMP-1510P50 | 160kg | ≥6mm | 150mm | 100mm | 72mm |
| HEPMP-320P50 | 320kg | ≥6mm | 180mm | 180mm | 72mm |
| HEPMP-500P50 | 500kg | ≥6mm | 250mm | 180mm | 72mm |
| HEPMP-640P50 | 640KG | ≥6mm | 320mm | 180mm | 72mm |
| HEPMP-720P50 | 720kg | ≥6mm | 250mm | 250mm | 72mm |
| HEPMP-2012P70 | 320kg | ≥8mm | 190mm | 110mm | 72mm |
| HEPMP-2020P70 | 640kg | ≥8mm | 200mm | 200mm | 72mm |
| Model | Rated lifting force（thickness＞10mm) | Applicable thickness | L | W | H |
| HEPMP-30P30B | 30kg | 2-12mm | 100mm | 54mm | 58mm |
| HEPMP-60P30B | 60kg | 2-12mm | 100mm | 100mm | 58mm |
| HEPMP-100P30B | 100kg | 2-12mm | 140mm | 100mm | 58mm |
| HEPMP-200P30B | 200kg | 2-12mm | 260mm | 100mm | 58mm |
| HEPMP-300P30 | 300KG | 2-12mm | 260mm | 110mm | 58mm |
| HEPMP-60P30 | 60kg | 3-12mm | 110mm | 60mm | 58mm |
| HEPMP-1406P30 | 90kg | 3-12mm | 140mm | 60mm | 58mm |
| HEPMP-1817P30 | 300kg | 3-12mm | 180mm | 170mm | 58mm |
| HEPMP-1906P30 | 120kg | 2-12mm | 190mm | 60mm | 58mm |
| HEPMP-120P30 | 120KG | 2-12mm | 190mm | 60mm | 60mm |
| HEPMP-90P30 | 90KG | 2-12mm | 150mm | 60mm | 60mm |
| Model | Rated lifting force（thickness＞12mm) | Applicable thickness | L | W | H |
| HEPMSP-60P45×24 | 60kg | ≥3mm | 145mm | 90mm | 81mm |
| HEPMSP-100P45×24 | 100kg | ≥3mm | 200mm | 120mm | 81mm |
| HEPMP-2811S | 120KG | ≥3mm | 280mm | 110mm | 80mm |
| HEPMSP-200P45×24 | 200kg | ≥3mm | 370mm | 105mm | 81mm |
| HEPMSP-300P45×24 | 300kg | ≥3mm | 435mm | 105mm | 81mm |
| Model | Rated lifting force | Applicable thickness | Diameter | H | Weight |
| HEPM1-25 | 3KG | ≥2mm | 25mm | 35mm | 120g |
| HEPM1-40 | 20KG | ≥2mm | 40mm | 48mm | 420g |
| HEPM1-50 | 30KG | ≥10mm | 49mm | 45mm | 650g |
| HEPM1-60 | 50KG | ≥10mm | 60mm | 50mm | 1kg |
| HEPM1-75 | 90KG | ≥12mm | 78mm | 48mm | 1.5kg |
| HEPM1-100 | 150KG | ≥14mm | 100mm | 55mm | 3.5kg |
No, this system is an electro permanent magnetic system and independent from the electric current. It only uses the electric power for a very short period (0.5-2 sec) to run the MAG and DEMAG cycle. Then the power drops down. The effective force is generated by powerful permanent Rare-Earth magnets.
Yes! Except for some basic common models, our magnetic gripper can also be customized according to customer requirements
Depending on the version.Normally,the maximum temperature is:80℃，If it exceeds this temperature, we can make special designs. Currently, the highest temperature we have designed is 600 ℃
No problem.By using a multi-layer, waterproof, anti-oil, and corrosion-resistant structure, it is even possible to work in water, oil and gas environments.
