Electro Permanent Profiles Lifting Magnets
HS Series
Electro Permanent Profiles Lifting Magnets, aim to handle steel profiles, H-beam blanks, and angle irons with precision and safety.
- Slim Pole Shoes: Lift profiles from 80 to 600 mm, with lengths up to 24,000 mm.
- Adjustable Modules: Optional 90°rotation for profiles from 600-1000 mm
- Onboard Control Unit: Select magnetic modules based on profile length
- Battery Powered Option: For areas with restricted or limited power supply.
- Remote Control: Digital push buttons and radio remote control
- High Safety: 3:1 safety factor.
- Electro Permanent Profiles Lifting Magnets Datasheet
| Art No. | Series Code | Length(mm/in) | Width(mm/in) | Dead Weight(kg/Lbs) | Capacity(kg/Lbs) | ||
| Min. | Max. | Min. | Max. | ||||
| HS-06-013 | HS-013B0102-1 | 570/22.4 | 6000/236 | 80/3.1 | 160/6.3 | 500/1100 | 1300/2860 |
| HS-12-026 | HS-026B0104-1 | 1580/62.2 | 12000/472 | 80/3.1 | 160/6.3 | 900/1980 | 2600/5720 |
| HS-18-039 | HS-039B0106-1 | 1000/39.3 | 18000/709 | 80/3.1 | 160/6.3 | 1400/3080 | 3900/8580 |
| HS-24-052 | HS-052B0106-1 | 1000/39.3 | 24000/945 | 80/3.1 | 160/6.3 | 2100/4620 | 5200/11440 |
Electro Permanent Profiles Lifting Magnets

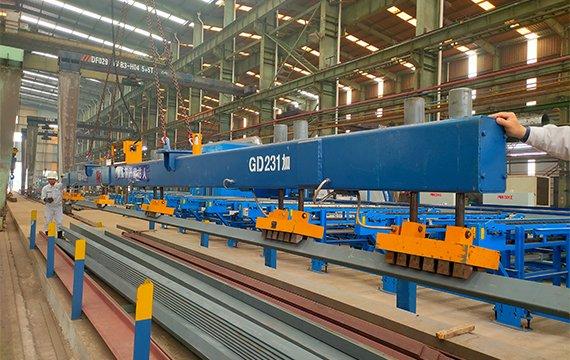

HS Series Electro Permanent Profiles Lifting Magnets designed to address the challenges of lifting long steel profiles safely and efficiently. Customized magnetic modules based on profile length, preventing sagging and ensuring secure handling.
This innovative solution is ideal for the production, storage, or logistics of beams and profiles, offering optimal space efficiency, a diverse range of materials, and rapid handling features.
Electro Permanent Profiles Lifting Magnets Advantage

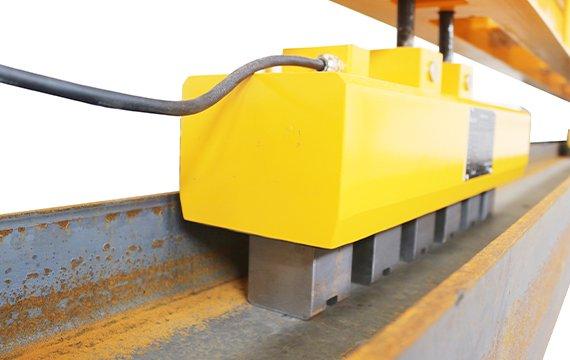

Electro Permanent Profiles Lifting Magnets utilizes electro-permanent magnets that require only a brief electrical pulse to activate and maintain a strong magnetic force without continuous power, ensuring safety even during power outages.
- No-Current Safety:Magnetic force holds in power outages
- Electro-Permanent Magnet: Suspended to conform perfectly to the steel sheet’s surface.
- High advanced SPC-system (System Performance Check)
- Lamp Block Indicator:allowing movement only when the green light is steadily illuminated.
Electro Permanent Profiles Lifting Magnets Automotive Application
Electro Permanent Profiles Lifting Magnets efficiently manage steel profiles utilized in the assembly of chassis, bodies, and components.
They guarantee accurate positioning, minimize handling time, and improve safety on the production floor, all while safeguarding the surface integrity of the materials and optimizing the overall manufacturing process.

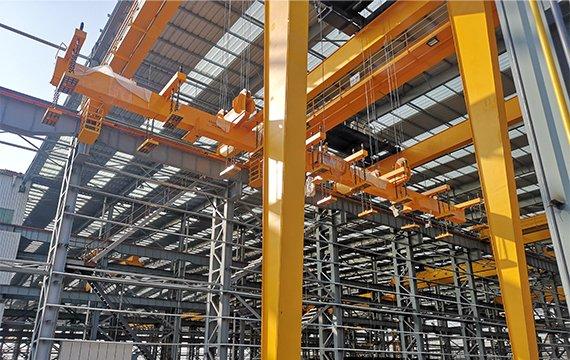

Electro Permanent Profiles Lifting Magnets Structural Steel Application
Electro Permanent Profiles Lifting Magnets allow for accurate handling of profiles during welding and cutting tasks. They securely lift and position heavy steel elements like I-beams and columns, facilitating the assembly of building structures.
By removing the necessity for manual lifting, these magnets enhance safety and efficiency on construction sites, minimizing the risk of injuries and material damage while boosting the speed and precision of steel erection activities.
