Lifting Magnets for Sheet Metal Loading&unloading
HM5 Series For Cutting System aim to effectively clear cut pieces and any leftover material from the cutting table in one seamless action.
- Thickness Lifting: starting from a minimum thickness of 1.5 mm
- Selective Zone Activation: Allows users to activate specific magnetic zones for targeted material removal.
- Cutting System Compatibility: Designed for use with laser, plasma, and flame cutting systems.
- Single Sheet Lifting: handling of individual steel sheets with precision.
- Remote Control: Digital push buttons and radio remote control
- High Safety: 3:1 safety factor.
lifting magnets for sheet metal for whole plate loading and all cutting parts unloading

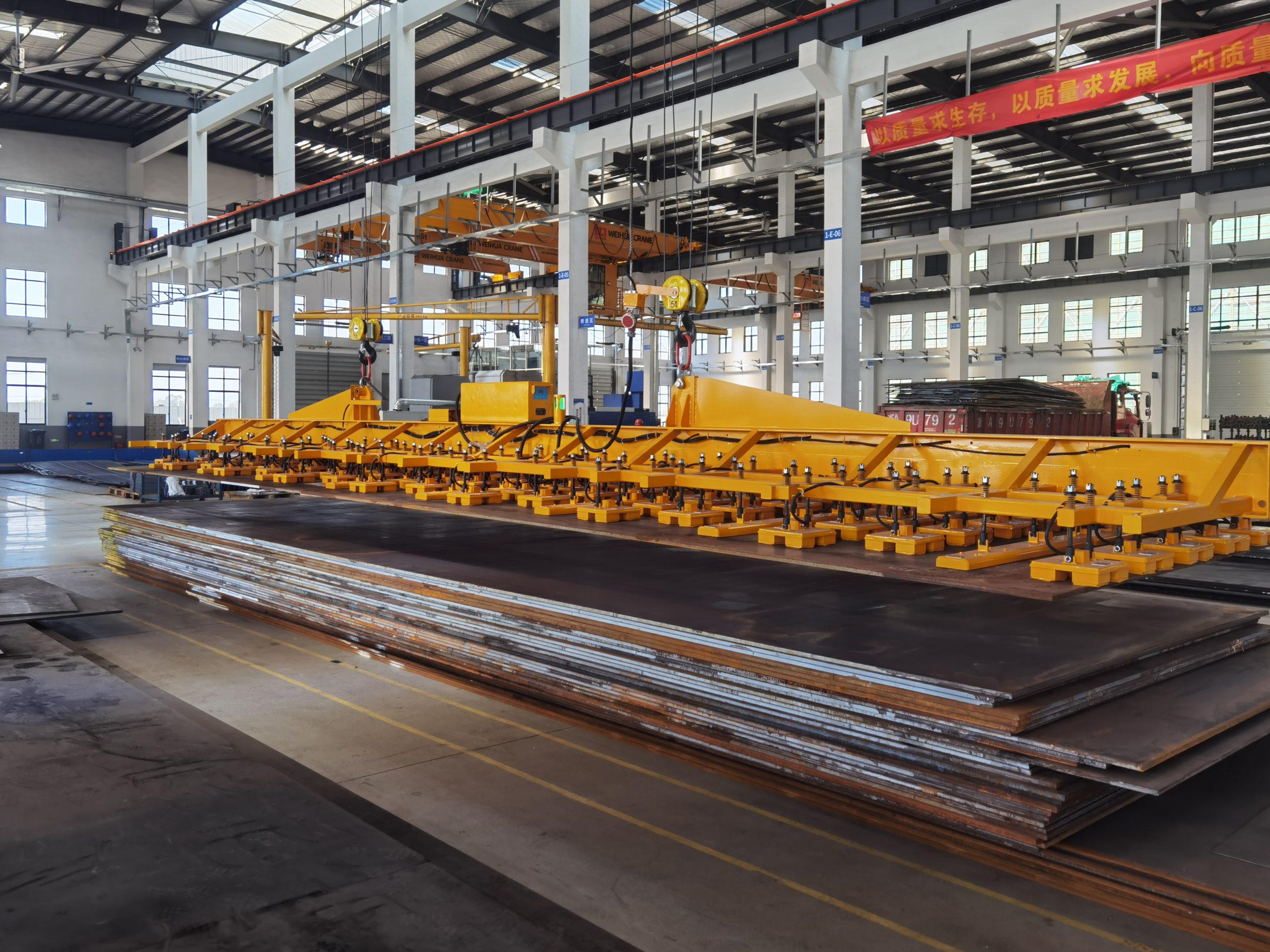

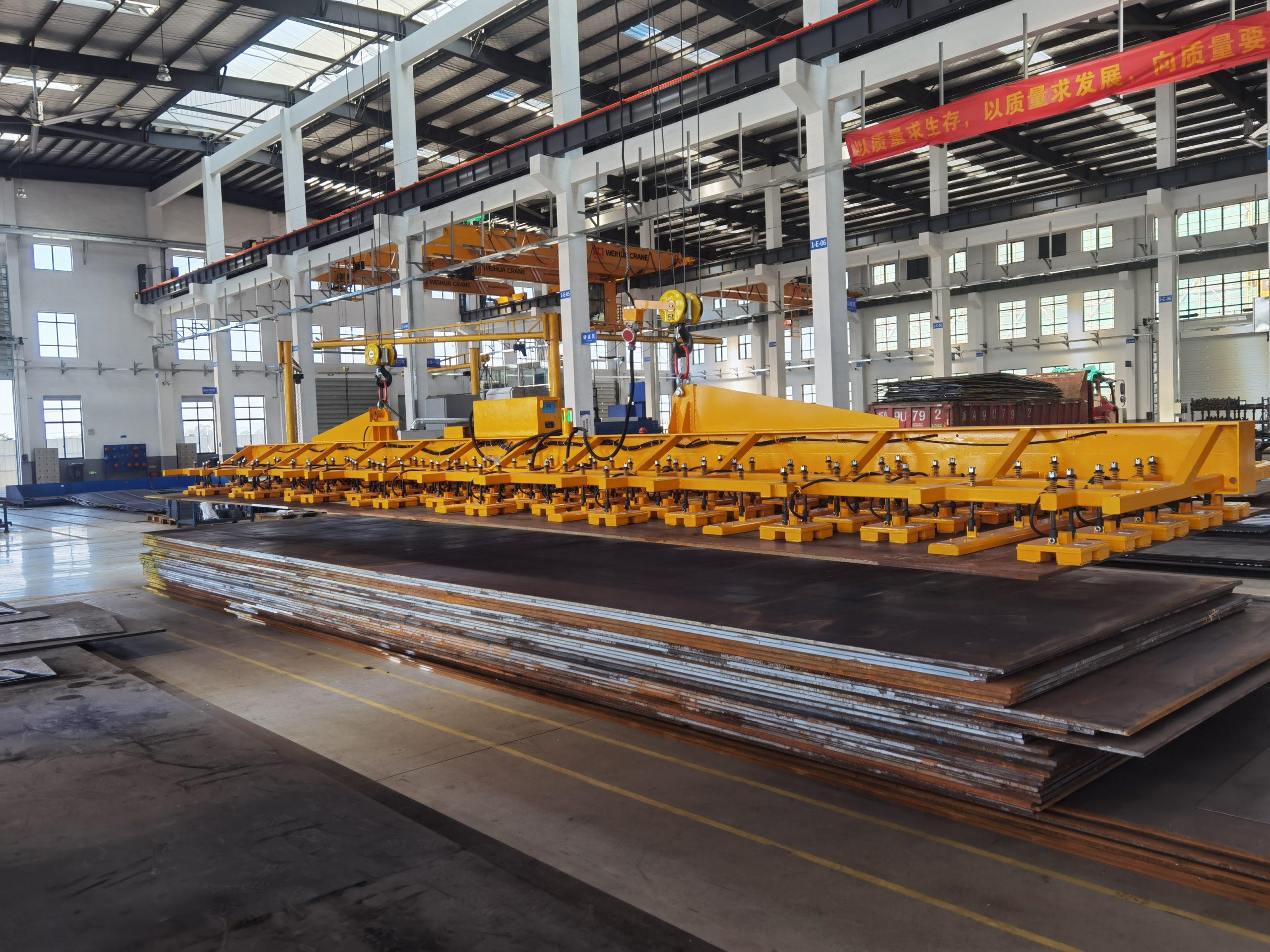

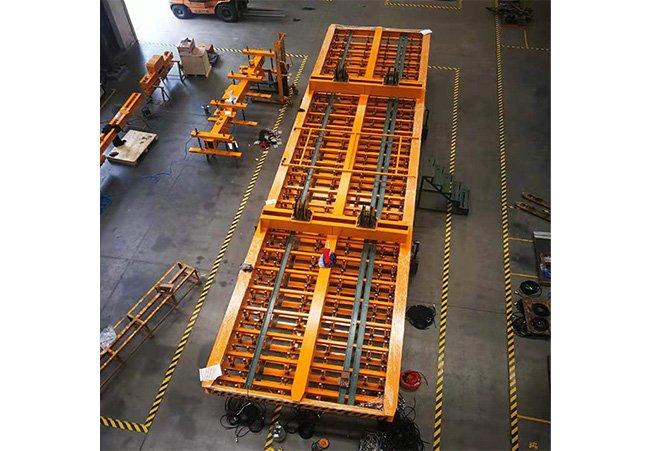

The specification of a single steel plate is 12500 × 2580 × (6-130mm), and it is required to lift the single steel plate to the cutting table. After cutting is completed, the entire plate should be lifted to the sorting table to ensure that workpieces with a size specification of 100 × 100mm do not miss suction, with a leakage rate of ≤ 3%. The maximum weight of steel plate shall not exceed 30 tons

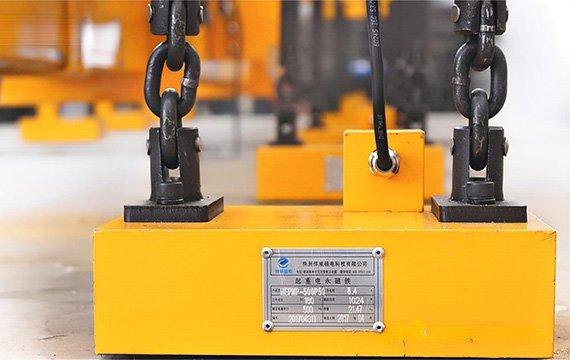

HVR designed magnet model: HEPMP-392A-QG,Magnet Quantity: 330 units, used in 11X30 combination, and equipped with 1 set of HEPC5-900A model controller, single magnet unit controllable.

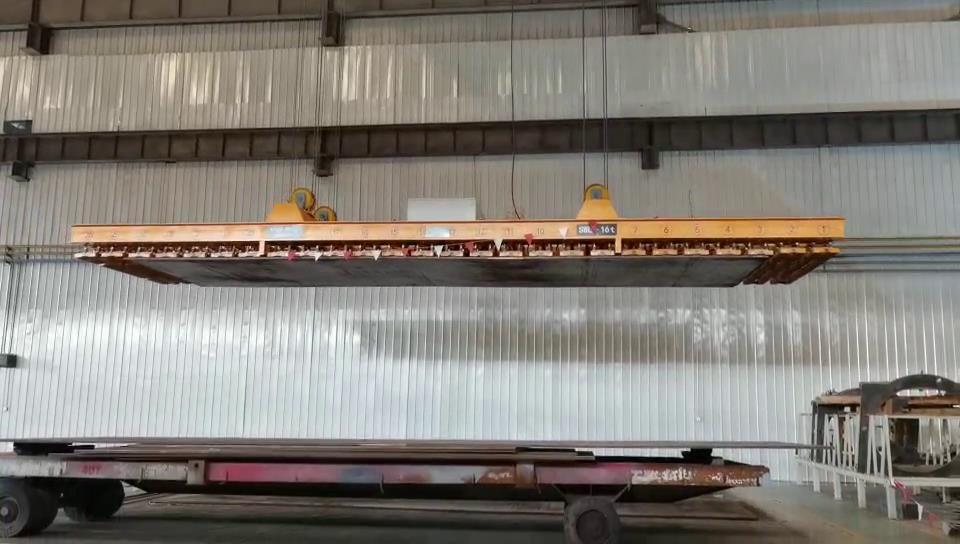

lifting magnets for sheet metal for 3T steel plate cutting application

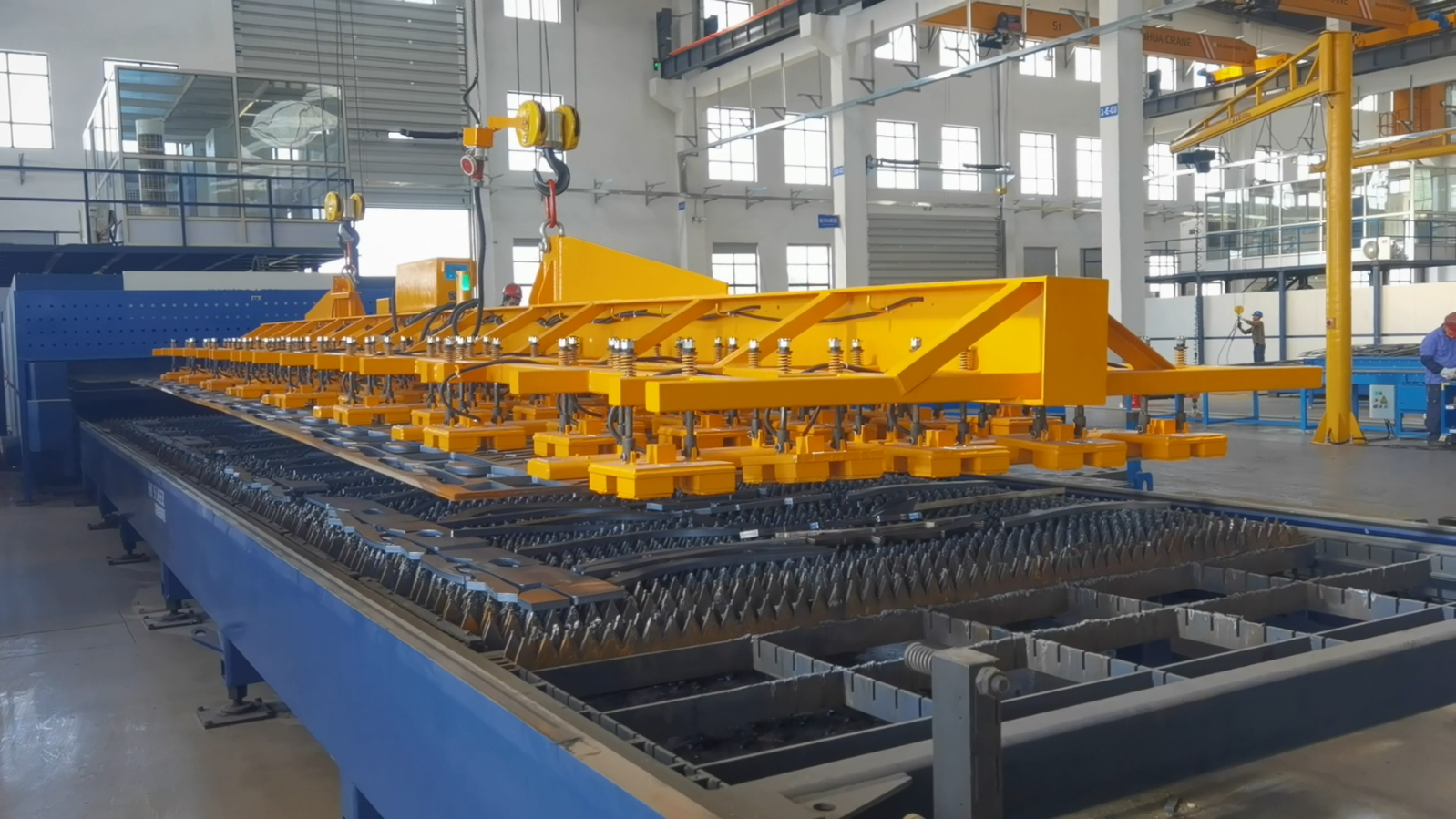

This magnet system is designed for lifting 3000 × 2000 steel plates loading and unloading after cutting, with a minimum requirement of 70 × 70 without any leakage.
1. Easy and convenient to use, no manual pick up, saving labor.
2. Customized design to meet customer cutting requirements(unloading Min.70*70 cutting parts at one time).
3. No-Current Safety:Magnetic force holds in power outages
lifting magnets for sheet metal application in Steel Structure Company

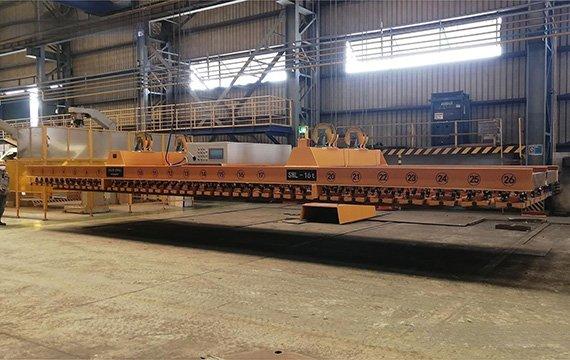

Steel plate dimension in customer factory: single steel plate range from 2 to 12mX1.5 to 2.5mX6 to 60mm, ensuring that components with dimensions of 150 (length) and X80mm (width) do not leak after laser cutting.

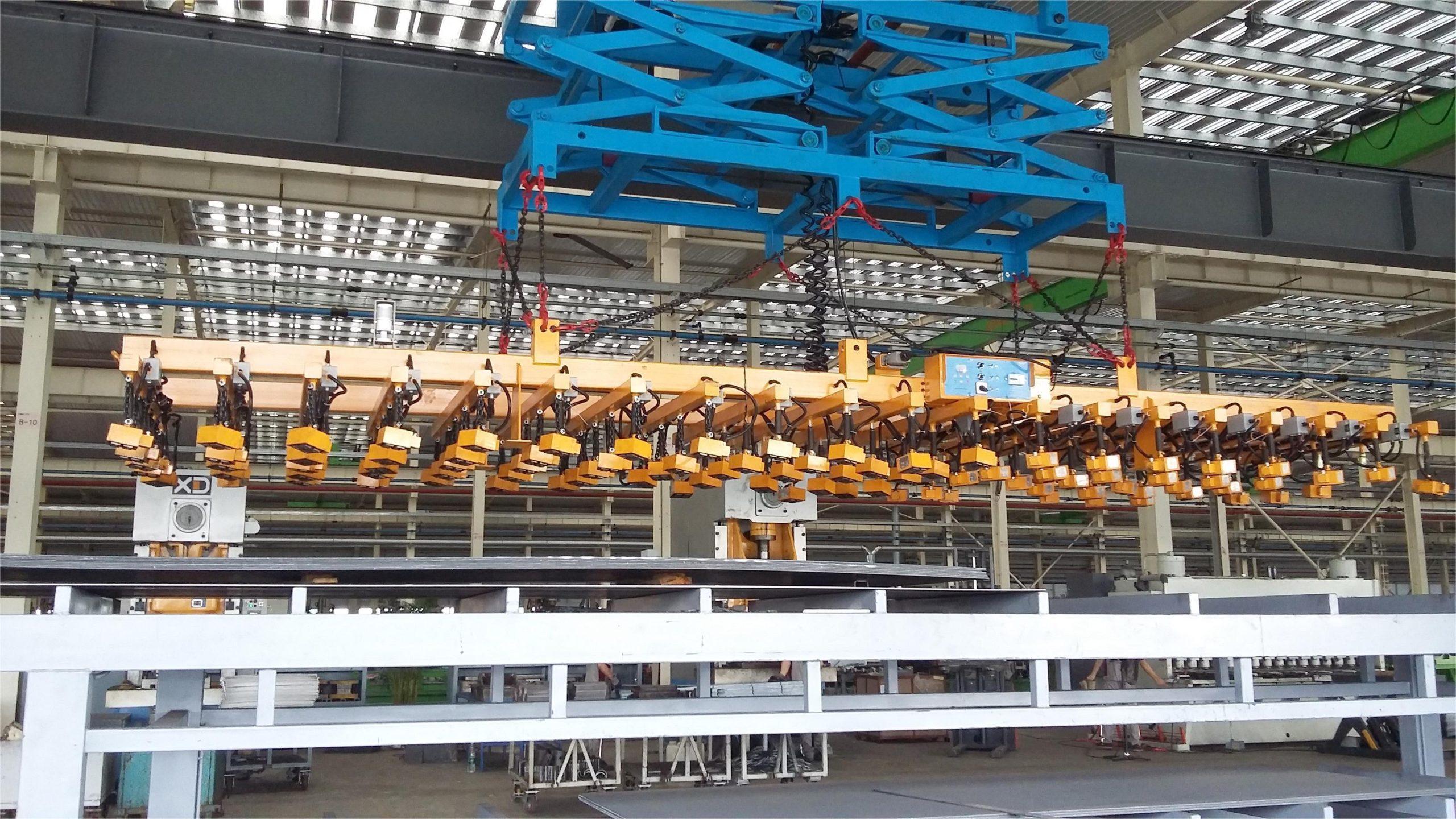

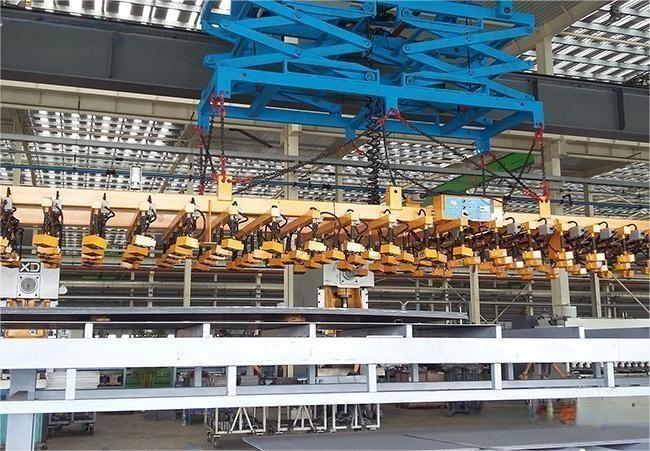

HVR provides a complete set of magnetic lifting system and connect with customer intelligent crane.Achieve lifts the steel plate to the cutting table, and after cutting is completed, the entire plate is lifted to the sorting table, the automation crane working with magnetic lifting system seamlessly, making it fast and efficient.
Electro Permanent Lifting Magnets For Cutting System Heavy Machinery Application
Electro Permanent Lifting Magnets For Cutting System support precisely manage and position large steel plate during cutting operations, which is crucial for fabricating significant machinery components like frames, gears, and shafts. These magnets ensure a secure grip to avoid any distortion of the workpiece during handling， and safeguard the steel’s surface finish from scratches and other damages that could undermine the final product’s integrity.
Additionally, they enhance the cutting process’s efficiency by facilitating quicker material changeovers and minimizing downtime, which is especially advantageous in high-volume production settings.
