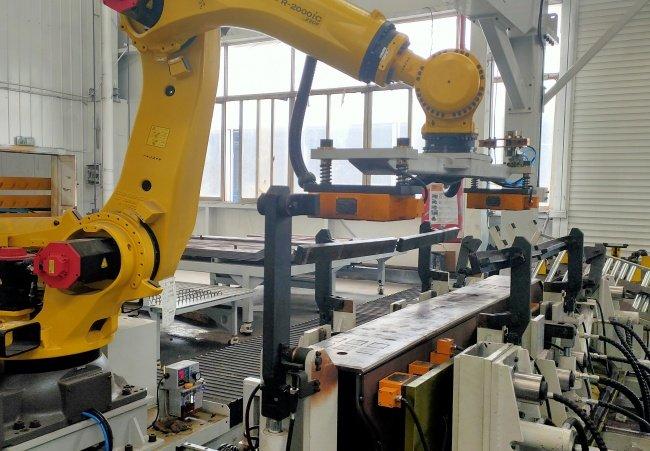

Fixture Tooling for Welding Automation Line
Fixture Tooling is a tool and equipment used in the welding process, whose main function is to ensure that the workpiece remains fixed and stable during the welding process.
- Fixture Tooling can ensure the accuracy and consistency of workpiece welding.
- Improvingwelding efficiency significantly.
- Can accelerate welding preparation and operation process.
- Support repeated use in large-scale production and batch welding operations.
- Magnets do not change their magnetic state when power failure.
- Control unit could be integrated to the PLC system of robot.
- For Thick plates
- For Thin Plates
- For Pipes&round bars
- Round shape magnent
| Model | Rated lifting force（thickness＞16mm) | Applicable thickness | L | W | H |
| HEPMP-1510P50 | 160kg | ≥6mm | 150mm | 100mm | 72mm |
| HEPMP-320P50 | 320kg | ≥6mm | 180mm | 180mm | 72mm |
| HEPMP-500P50 | 500kg | ≥6mm | 250mm | 180mm | 72mm |
| HEPMP-640P50 | 640KG | ≥6mm | 320mm | 180mm | 72mm |
| HEPMP-720P50 | 720kg | ≥6mm | 250mm | 250mm | 72mm |
| HEPMP-2012P70 | 320kg | ≥8mm | 190mm | 110mm | 72mm |
| HEPMP-2020P70 | 640kg | ≥8mm | 200mm | 200mm | 72mm |
| Model | Rated lifting force（thickness＞10mm) | Applicable thickness | L | W | H |
| HEPMP-30P30B | 30kg | 2-12mm | 100mm | 54mm | 58mm |
| HEPMP-60P30B | 60kg | 2-12mm | 100mm | 100mm | 58mm |
| HEPMP-100P30B | 100kg | 2-12mm | 140mm | 100mm | 58mm |
| HEPMP-200P30B | 200kg | 2-12mm | 260mm | 100mm | 58mm |
| HEPMP-300P30 | 300KG | 2-12mm | 260mm | 110mm | 58mm |
| HEPMP-60P30 | 60kg | 3-12mm | 110mm | 60mm | 58mm |
| HEPMP-1406P30 | 90kg | 3-12mm | 140mm | 60mm | 58mm |
| HEPMP-1817P30 | 300kg | 3-12mm | 180mm | 170mm | 58mm |
| HEPMP-1906P30 | 120kg | 2-12mm | 190mm | 60mm | 58mm |
| HEPMP-120P30 | 120KG | 2-12mm | 190mm | 60mm | 60mm |
| HEPMP-90P30 | 90KG | 2-12mm | 150mm | 60mm | 60mm |
| Model | Rated lifting force（thickness＞12mm) | Applicable thickness | L | W | H |
| HEPMSP-60P45×24 | 60kg | ≥3mm | 145mm | 90mm | 81mm |
| HEPMSP-100P45×24 | 100kg | ≥3mm | 200mm | 120mm | 81mm |
| HEPMP-2811S | 120KG | ≥3mm | 280mm | 110mm | 80mm |
| HEPMSP-200P45×24 | 200kg | ≥3mm | 370mm | 105mm | 81mm |
| HEPMSP-300P45×24 | 300kg | ≥3mm | 435mm | 105mm | 81mm |
| Model | Rated lifting force | Applicable thickness | Diameter | H | Weight |
| HEPM1-25 | 3KG | ≥2mm | 25mm | 35mm | 120g |
| HEPM1-40 | 20KG | ≥2mm | 40mm | 48mm | 420g |
| HEPM1-50 | 30KG | ≥10mm | 49mm | 45mm | 650g |
| HEPM1-60 | 50KG | ≥10mm | 60mm | 50mm | 1kg |
| HEPM1-75 | 90KG | ≥12mm | 78mm | 48mm | 1.5kg |
| HEPM1-100 | 150KG | ≥14mm | 100mm | 55mm | 3.5kg |

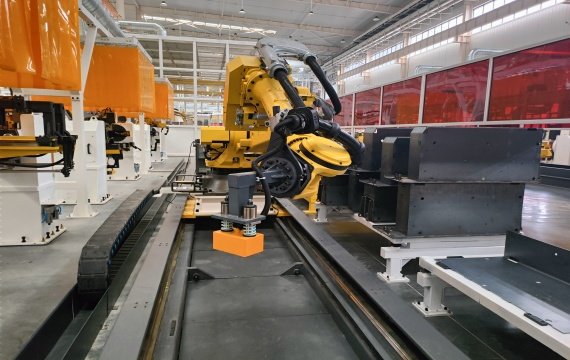

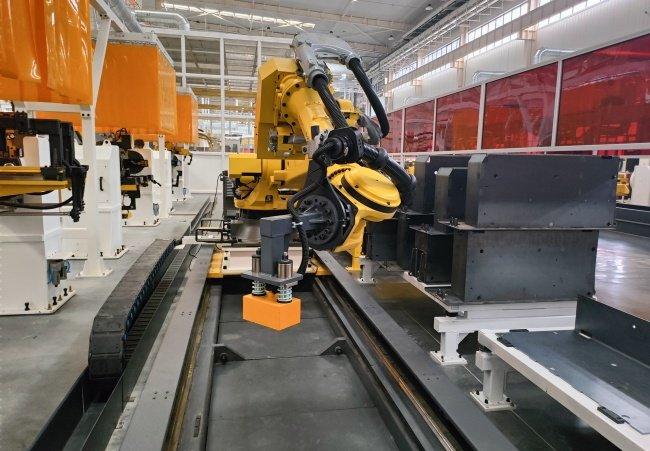

Welding Application of Automotive
Automated welding technology plays a key role in automotive，For example, welding of components such as car frames, doors, and roofs. This not only greatly improves the welding speed, but also ensures the welding quality and structural strength of the vehicle body, and can adapt to the production of various vehicle models.

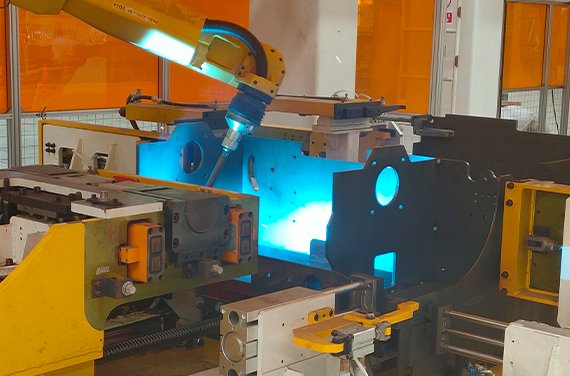

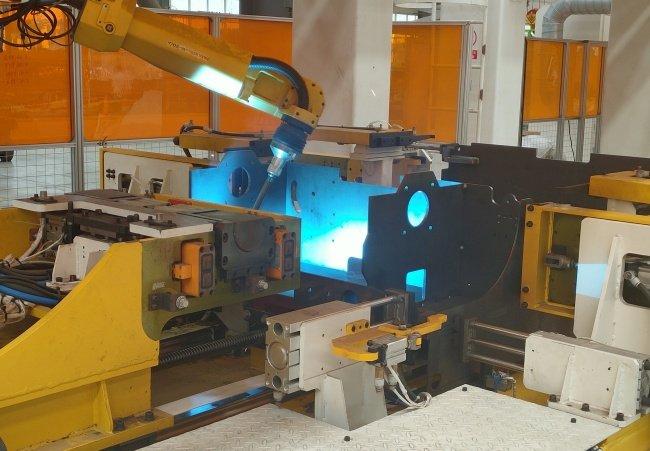

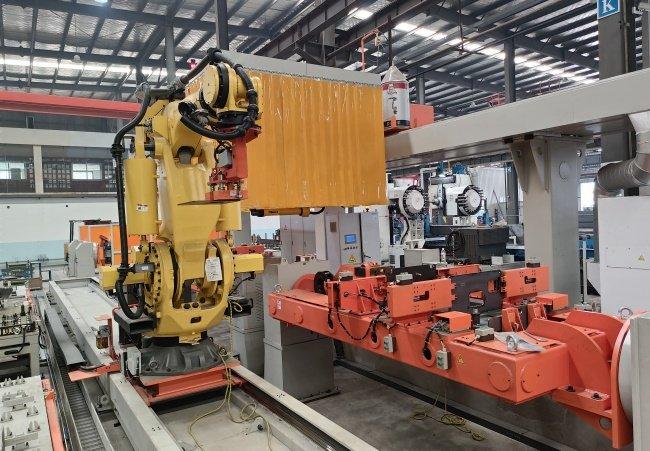

Welding Application of Plates
The Fixture Tooling in automated welding system can be adjusted according to different steel plate thicknesses, types, and welding processes to meet diverse production needs.Capable of quickly completing welding tasks, significantly improving the overall efficiency of the production line.

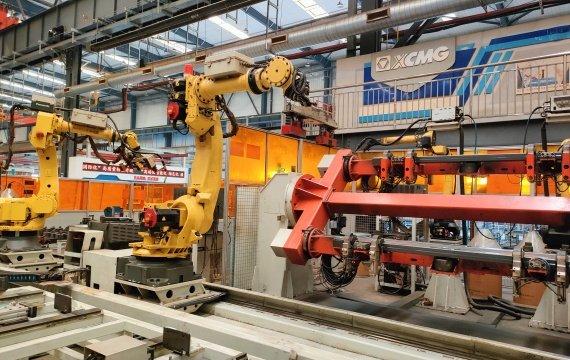

Welding Application of Components
Many components have complex shapes and high precision requirements, and automated welding can ensure the accuracy and quality stability of welding.Thus producing high-quality components.
Your Site Related Products
One Stop Customized Fixture Tooling manufacturer in China
- We will provide customized solutions
- Complete qualification certification, exported to all over the world
- Quick response, both pre-sales and after-sales services are guaranteed
ABB、 Ten major brands including Fanuc and Estun, as well as Sany Vision Bit, Sylt, Shenyang Xinsong, Huaheng Robotics, Foxconn (Electronics), BYD (Electronics, Automotive)
Sure, we have our own R&D and design team that can customize products that meet your requirements based on the working conditions and requirements you provide.
Our company’s products are all independently developed and supported by a team of German technical experts. We have independent intellectual property rights (six invention patents, thirty utility model patents) and can provide you with comprehensive pre-sales and after-sales services.
Our warranty is 1 year.
