End-of-Arm Tool for Gantry Robot in Automation Line
End-of-Arm Tool provides diverse and efficient solutions for the application of gantry robot, driving the automation and intelligence development of modern manufacturing.
- Customized design to best fit each varying automation needs.
- Improvingproduction efficiency significantly.
- Special magnetic pole is available for taking care any kinds of steel load.
- Suitable for various types of workpieces (Plates,H-beam blanks, angle iron,square tubes, pipes etc.)
- Magnets do not change their magnetic state when power failure.
- Control unit could be integrated to the PLC system of robot.

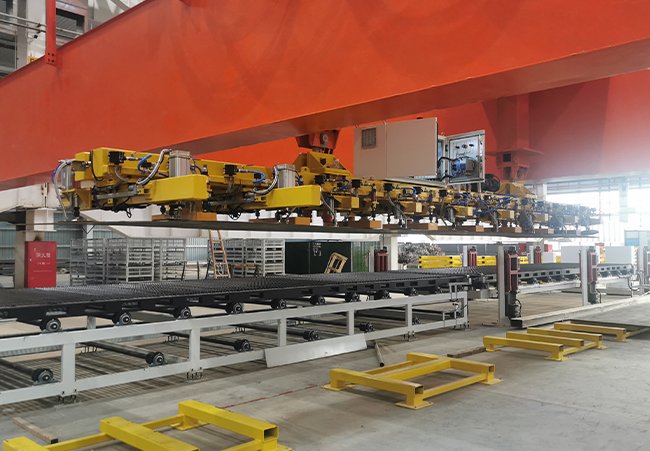

- For Thick plates
- For Thin Plates

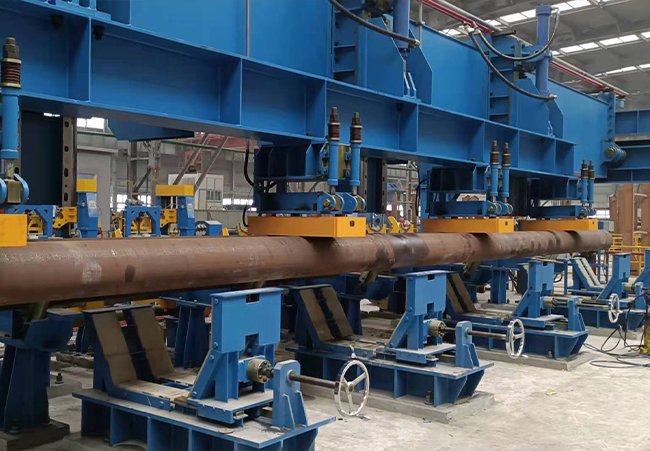

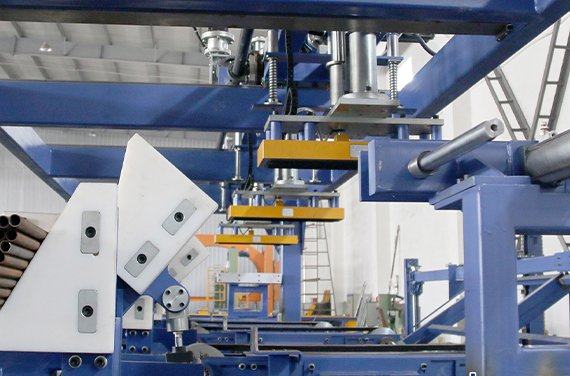

- For Pipes&round bars
- Round shape magnent
| Model | Rated lifting force（thickness＞16mm) | Applicable thickness | L | W | H |
| HEPMP-1510P50 | 160kg | ≥6mm | 150mm | 100mm | 72mm |
| HEPMP-320P50 | 320kg | ≥6mm | 180mm | 180mm | 72mm |
| HEPMP-500P50 | 500kg | ≥6mm | 250mm | 180mm | 72mm |
| HEPMP-640P50 | 640KG | ≥6mm | 320mm | 180mm | 72mm |
| HEPMP-720P50 | 720kg | ≥6mm | 250mm | 250mm | 72mm |
| HEPMP-2012P70 | 320kg | ≥8mm | 190mm | 110mm | 72mm |
| HEPMP-2020P70 | 640kg | ≥8mm | 200mm | 200mm | 72mm |
| Model | Rated lifting force（thickness＞10mm) | Applicable thickness | L | W | H |
| HEPMP-30P30B | 30kg | 2-12mm | 100mm | 54mm | 58mm |
| HEPMP-60P30B | 60kg | 2-12mm | 100mm | 100mm | 58mm |
| HEPMP-100P30B | 100kg | 2-12mm | 140mm | 100mm | 58mm |
| HEPMP-200P30B | 200kg | 2-12mm | 260mm | 100mm | 58mm |
| HEPMP-300P30 | 300KG | 2-12mm | 260mm | 110mm | 58mm |
| HEPMP-60P30 | 60kg | 3-12mm | 110mm | 60mm | 58mm |
| HEPMP-1406P30 | 90kg | 3-12mm | 140mm | 60mm | 58mm |
| HEPMP-1817P30 | 300kg | 3-12mm | 180mm | 170mm | 58mm |
| HEPMP-1906P30 | 120kg | 2-12mm | 190mm | 60mm | 58mm |
| HEPMP-120P30 | 120KG | 2-12mm | 190mm | 60mm | 60mm |
| HEPMP-90P30 | 90KG | 2-12mm | 150mm | 60mm | 60mm |
| For Pipes&round bars | |||||
| Model | Rated lifting force（thickness＞12mm) | Applicable thickness | L | W | H |
| HEPMSP-60P45×24 | 60kg | ≥3mm | 145mm | 90mm | 81mm |
| HEPMSP-100P45×24 | 100kg | ≥3mm | 200mm | 120mm | 81mm |
| HEPMP-2811S | 120KG | ≥3mm | 280mm | 110mm | 80mm |
| HEPMSP-200P45×24 | 200kg | ≥3mm | 370mm | 105mm | 81mm |
| HEPMSP-300P45×24 | 300kg | ≥3mm | 435mm | 105mm | 81mm |
| Model | Rated lifting force | Applicable thickness | Diameter | H | Weight |
| HEPM1-25 | 3KG | ≥2mm | 25mm | 35mm | 120g |
| HEPM1-40 | 20KG | ≥2mm | 40mm | 48mm | 420g |
| HEPM1-50 | 30KG | ≥10mm | 49mm | 45mm | 650g |
| HEPM1-60 | 50KG | ≥10mm | 60mm | 50mm | 1kg |
| HEPM1-75 | 90KG | ≥12mm | 78mm | 48mm | 1.5kg |
| HEPM1-100 | 150KG | ≥14mm | 100mm | 55mm | 3.5kg |

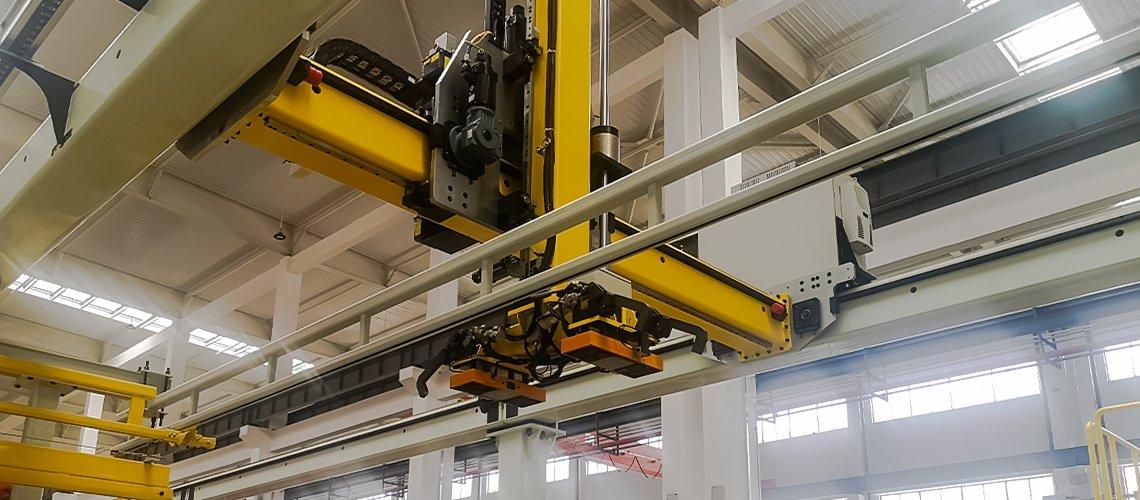

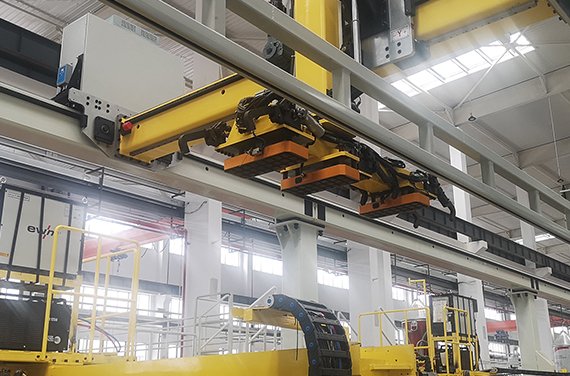

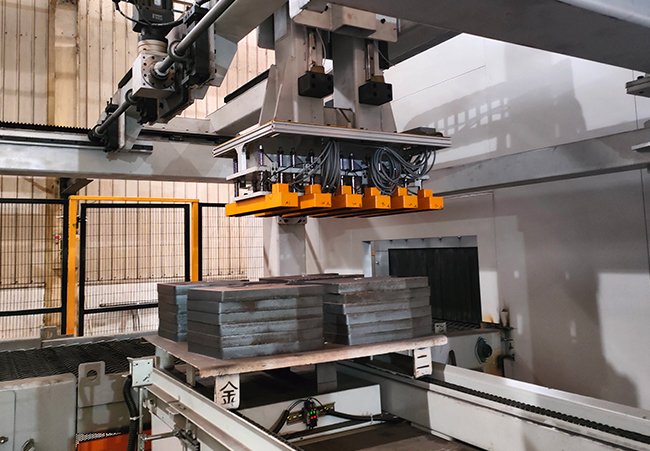

End-of-Arm Tool For Gantry Robot
End-of-Arm Tool ensures a strong hold on steel plates, allowing for quick and reliable loading and unloading in various applications.
This innovative solution not only boosts productivity but also enhances workplace safety, making it an ideal choice for industries that require efficient steel handling.

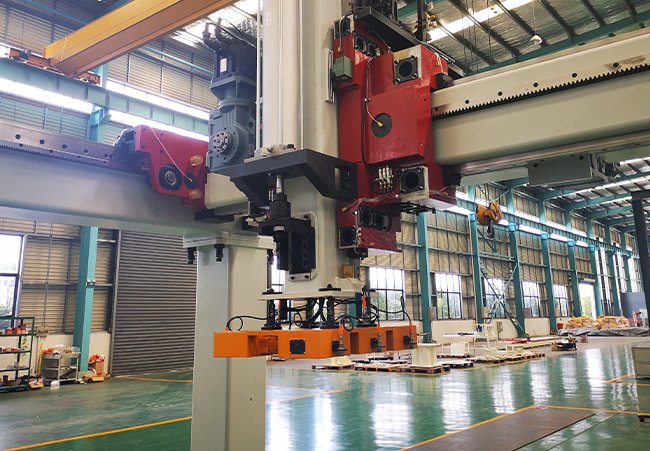

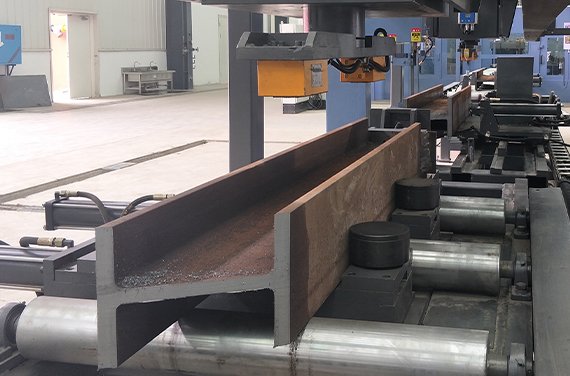

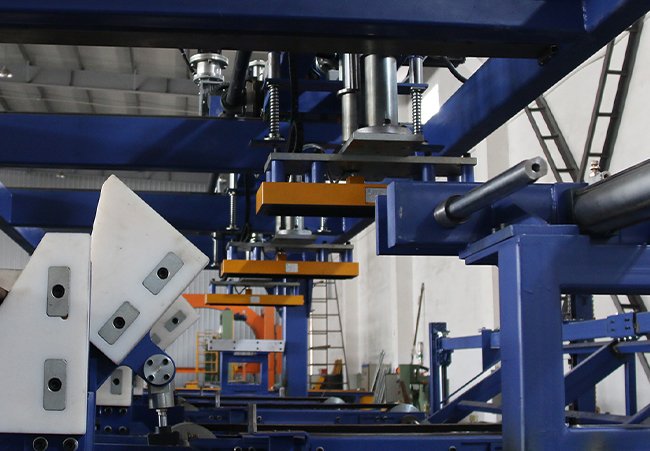

Gantry Robot For Profile
End-of-Arm Tool in conjunction with robotic arms, offers a versatile solution for handling various types of materials.
End-of-Arm Tool technology ensures a firm hold on diverse materials, enabling robot arms to perform precise lifts and placements with ease.

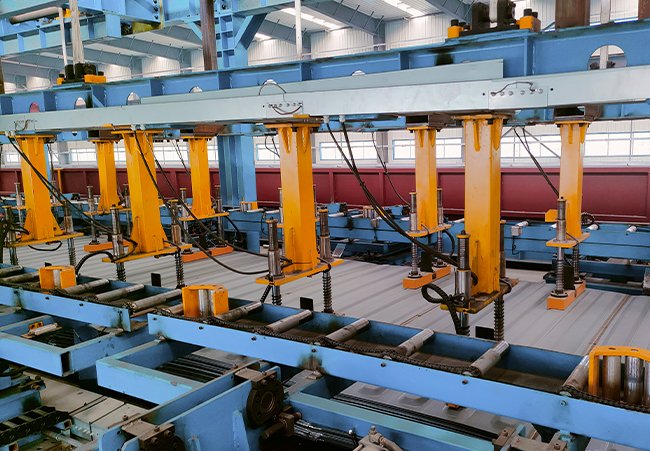

Gantry Robot For Bundled
End-of-Arm Tool for gantry robot can maintain a strong hold on bundled materials, while the intelligent gantry system provides precise movement and positioning. This synergy not only enhances operational efficiency but also reduces the risk of damage to the workpieces during transport.
Your Site Related Products
One Stop Customized End-of-Arm Tool manufacturer in China
- We will provide customized solutions
- Complete qualification certification, exported to all over the world
- Quick response, both pre-sales and after-sales services are guaranteed
Our products have CE certification from the European Union, product standard implementation certificate, and product patent certificate.
Yes, we have agents in Europe, South America, Türkiye, the United States and other regions
Under normal use, as long as the temperature does not exceed the allowable range, the magnetic field of the electro permanent magnet will decay by no more than 5% within 10 years.
Composed of neodymium iron boron, aluminum nickel cobalt, coils, magnetic poles, and other components. The most important thing is our technology.
