Why Choose HVR MAG Magnetic Grippers for Robotics
Magnetic Grippers for Robotics provides diverse and efficient solutions for the application of robot arms, driving the automation and intelligence development of modern manufacturing.
- Can handle a variety of material sizes and shapes.
- Improving production efficiency significantly.
- Special magnetic pole is available for taking care any kinds of steel load.
- Suitable for various types of workpieces (Plates,H-beam blanks, angle iron,square tubes, pipes etc.)
- Magnets do not change their magnetic state when power failure.
- Control unit could be integrated to the PLC system of robot.
- For Thick plates
- For Thin Plates
- For Pipes&round bars
- Round shape magnent
| Model | Rated lifting force（thickness＞16mm) | Applicable thickness | L | W | H |
| HEPMP-1510P50 | 160kg | ≥6mm | 150mm | 100mm | 72mm |
| HEPMP-320P50 | 320kg | ≥6mm | 180mm | 180mm | 72mm |
| HEPMP-500P50 | 500kg | ≥6mm | 250mm | 180mm | 72mm |
| HEPMP-640P50 | 640KG | ≥6mm | 320mm | 180mm | 72mm |
| HEPMP-720P50 | 720kg | ≥6mm | 250mm | 250mm | 72mm |
| HEPMP-2012P70 | 320kg | ≥8mm | 190mm | 110mm | 72mm |
| HEPMP-2020P70 | 640kg | ≥8mm | 200mm | 200mm | 72mm |
| Model | Rated lifting force（thickness＞10mm) | Applicable thickness | L | W | H |
| HEPMP-30P30B | 30kg | 2-12mm | 100mm | 54mm | 58mm |
| HEPMP-60P30B | 60kg | 2-12mm | 100mm | 100mm | 58mm |
| HEPMP-100P30B | 100kg | 2-12mm | 140mm | 100mm | 58mm |
| HEPMP-200P30B | 200kg | 2-12mm | 260mm | 100mm | 58mm |
| HEPMP-300P30 | 300KG | 2-12mm | 260mm | 110mm | 58mm |
| HEPMP-60P30 | 60kg | 3-12mm | 110mm | 60mm | 58mm |
| HEPMP-1406P30 | 90kg | 3-12mm | 140mm | 60mm | 58mm |
| HEPMP-1817P30 | 300kg | 3-12mm | 180mm | 170mm | 58mm |
| HEPMP-1906P30 | 120kg | 2-12mm | 190mm | 60mm | 58mm |
| HEPMP-120P30 | 120KG | 2-12mm | 190mm | 60mm | 60mm |
| HEPMP-90P30 | 90KG | 2-12mm | 150mm | 60mm | 60mm |
| Model | Rated lifting force（thickness＞12mm) | Applicable thickness | L | W | H |
| HEPMSP-60P45×24 | 60kg | ≥3mm | 145mm | 90mm | 81mm |
| HEPMSP-100P45×24 | 100kg | ≥3mm | 200mm | 120mm | 81mm |
| HEPMP-2811S | 120KG | ≥3mm | 280mm | 110mm | 80mm |
| HEPMSP-200P45×24 | 200kg | ≥3mm | 370mm | 105mm | 81mm |
| HEPMSP-300P45×24 | 300kg | ≥3mm | 435mm | 105mm | 81mm |
| Model | Rated lifting force | Applicable thickness | Diameter | H | Weight |
| HEPM1-25 | 3KG | ≥2mm | 25mm | 35mm | 120g |
| HEPM1-40 | 20KG | ≥2mm | 40mm | 48mm | 420g |
| HEPM1-50 | 30KG | ≥10mm | 49mm | 45mm | 650g |
| HEPM1-60 | 50KG | ≥10mm | 60mm | 50mm | 1kg |
| HEPM1-75 | 90KG | ≥12mm | 78mm | 48mm | 1.5kg |
| HEPM1-100 | 150KG | ≥14mm | 100mm | 55mm | 3.5kg |

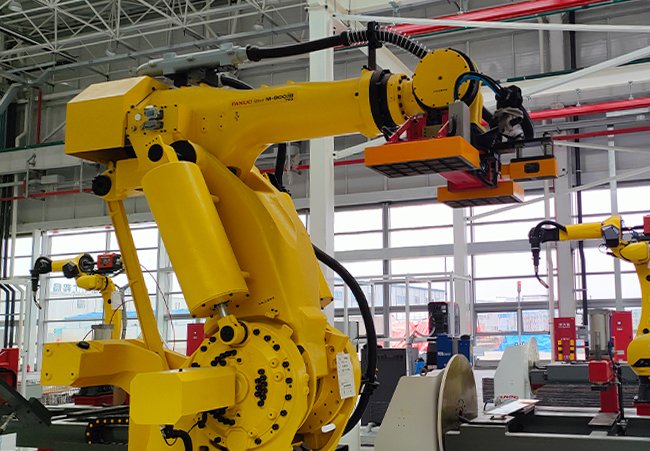

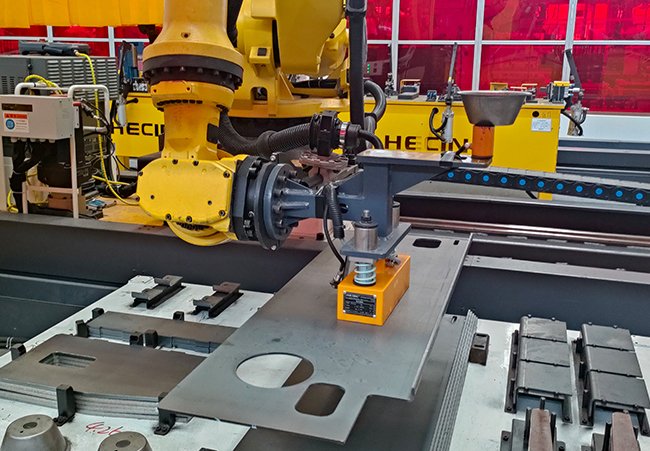

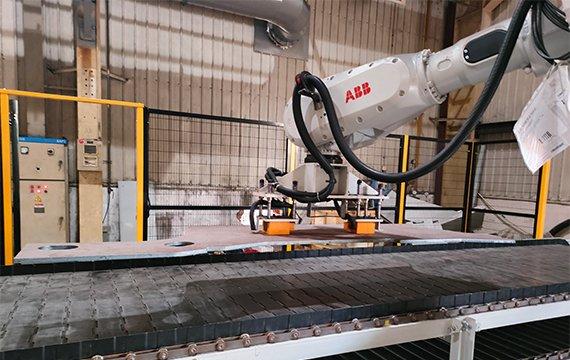

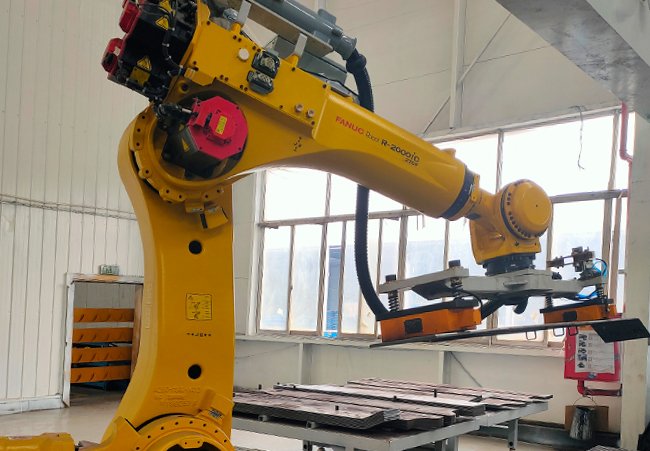

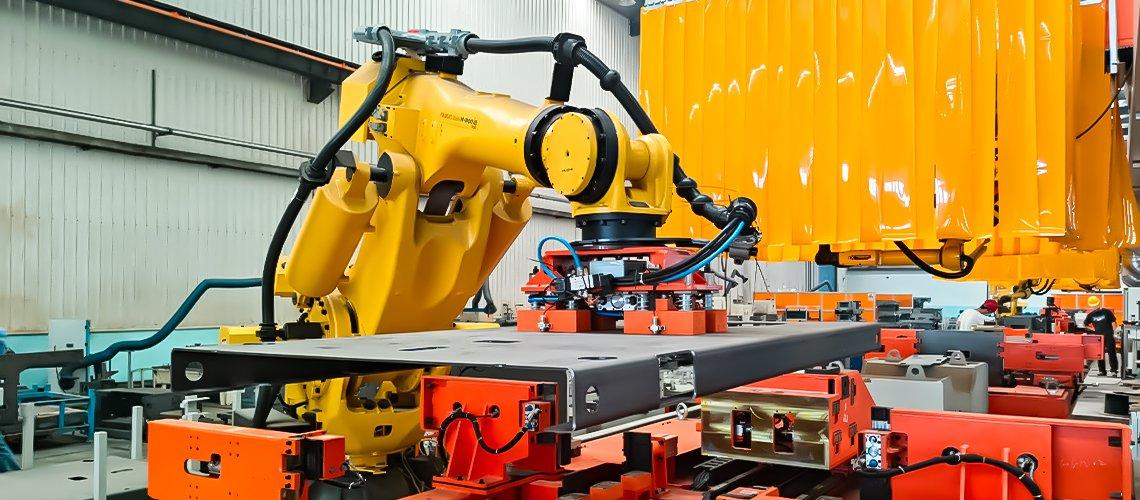

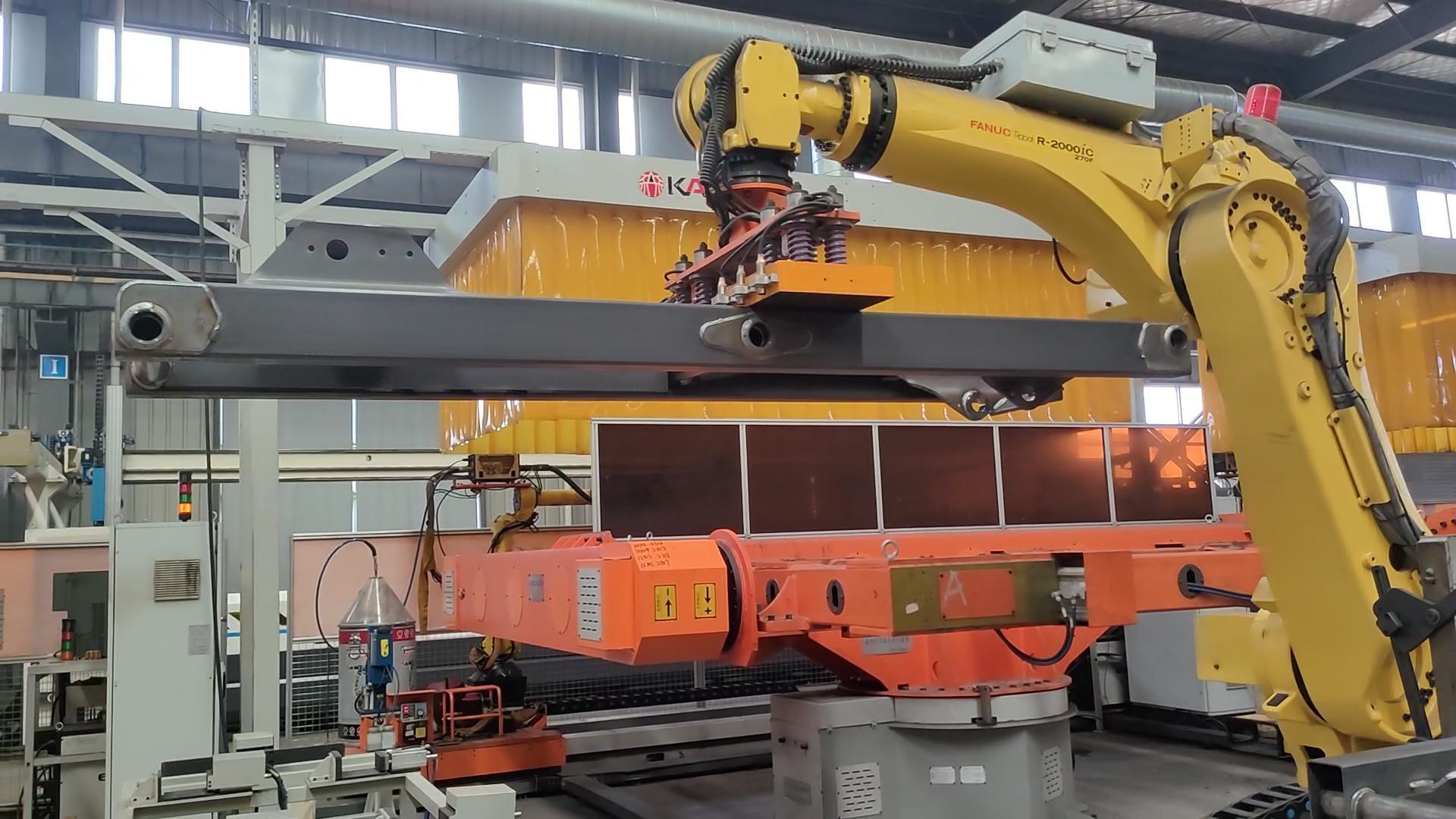

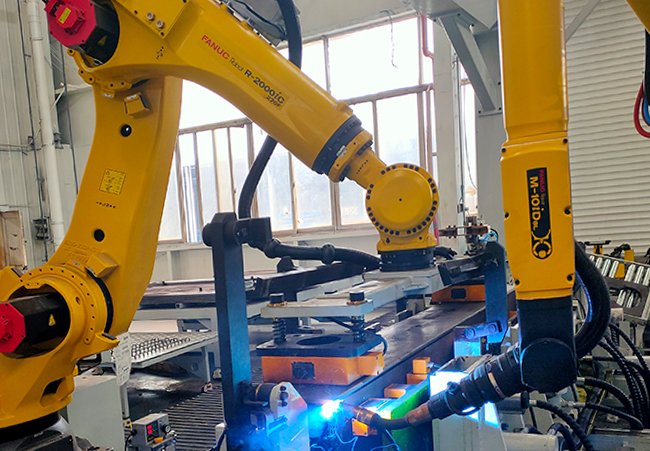

Magnetic Gripper in Robotics For Steel Plates Handling
Integrated with robotic arms, the system enables fast and stable gripping of steel plates with different sizes and thicknesses. HVR MAG magnetic grippers maintain reliable holding force without continuous power, helping reduce energy consumption while preventing workpiece dropping during operation.

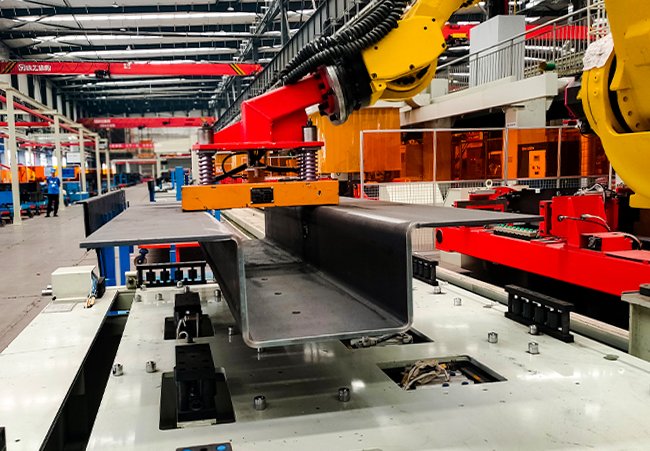

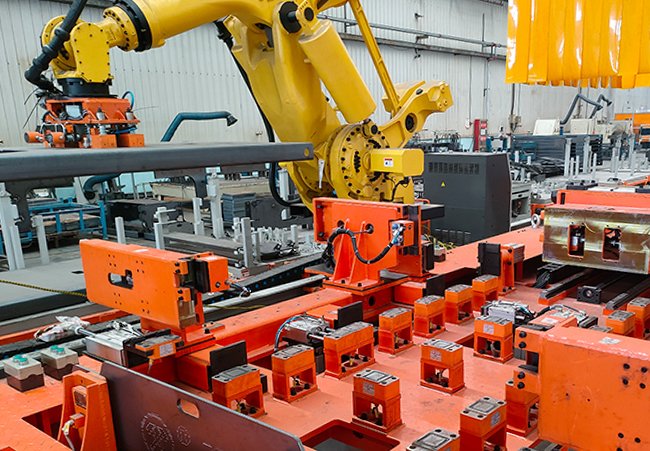

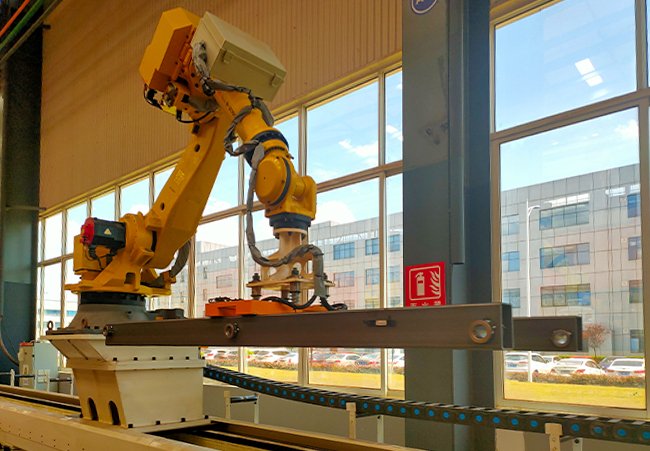

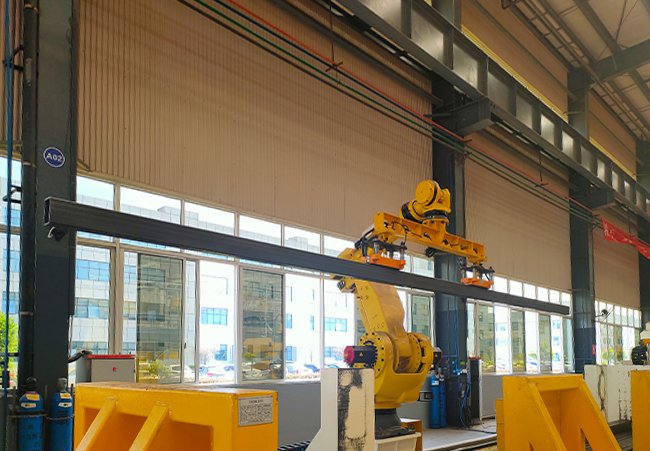

Magnetic Gripper in Robotics For Profile Handling
With customized magnetic pole designs, the system achieves stable gripping on curved and irregular surfaces. Integrated with robotic automation, it enables fast transfer, reduces manual handling, and ensures reliable operation in profile fabrication and processing applications.

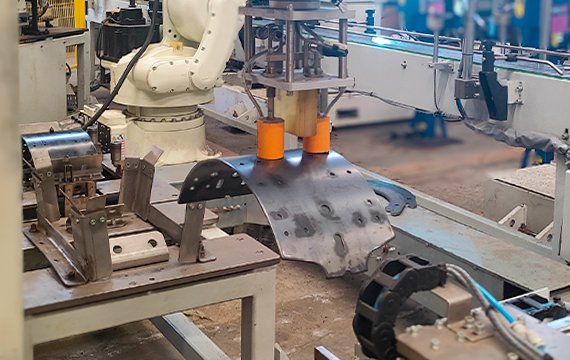

Magnetic Gripper in Robotics For Small Parts
With fast magnetizing and demagnetizing performance, the gripper enables reliable transfer in continuous automation applications. The electro-permanent design also maintains holding force without continuous power, improving operational safety and reducing energy consumption in steel handling processes.
Your Site Related Products
One Stop Customized End-of-Arm Tool manufacturer in China
- We will provide customized solutions
- Complete qualification certification, exported to all over the world
- Quick response, both pre-sales and after-sales services are guaranteed
Yes. HVR MAG magnetic grippers are designed with sufficient safety margins to maintain stable gripping on oily, scaled, or slightly rusty steel workpieces.
Electro-permanent magnetic technology maintains holding force without continuous power, helping keep the workpiece securely held even during unexpected power loss.
Yes. The magnetic gripper can adapt to different plate sizes and thicknesses, reducing the need for frequent tooling changes in automated production.
No. The magnetic field penetration is shallow and can be controlled through proper magnet arrangement, helping avoid interference near welding seams or cutting areas.
