End-of-Arm Tool for Bin Picking in Automation Line
End-of-Arm Tool for Bin Picking with Pickup 3D system, able to recognize the position and posture of objects, achieving precise grasping.
- End-of-Arm Tool can handle a variety of material sizes and shapes.
- Improvingproduction efficiency significantly.
- Special magnetic pole is available for taking care any kinds of steel load.
- Suitable for various types of workpieces (Plates,H-beam blanks, angle iron,square tubes, pipes etc.)
- Magnets do not change their magnetic state when power failure.
- Control unit could be integrated to the PLC system of robot.

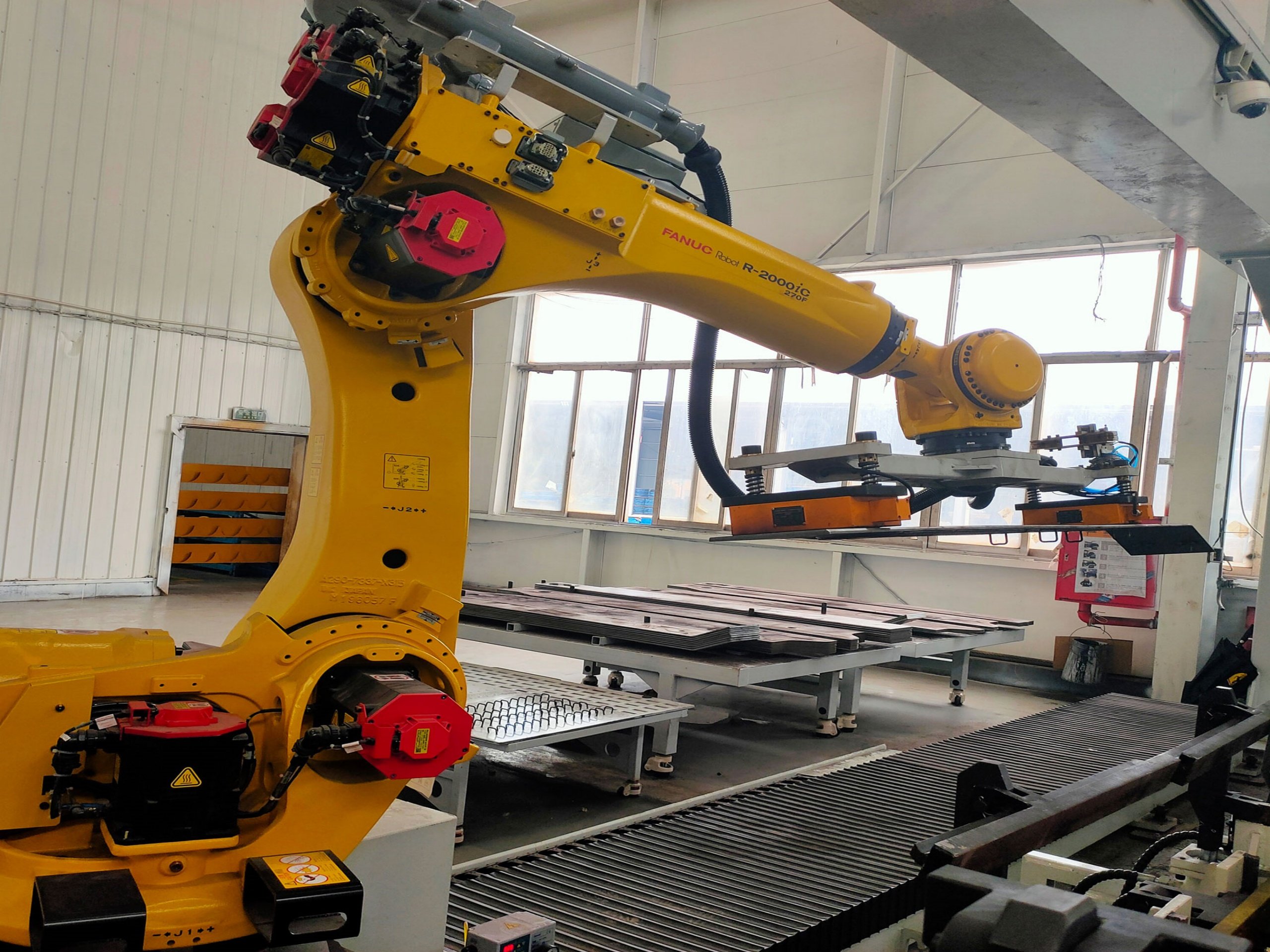

- For Thick plates
- For Thin Plates

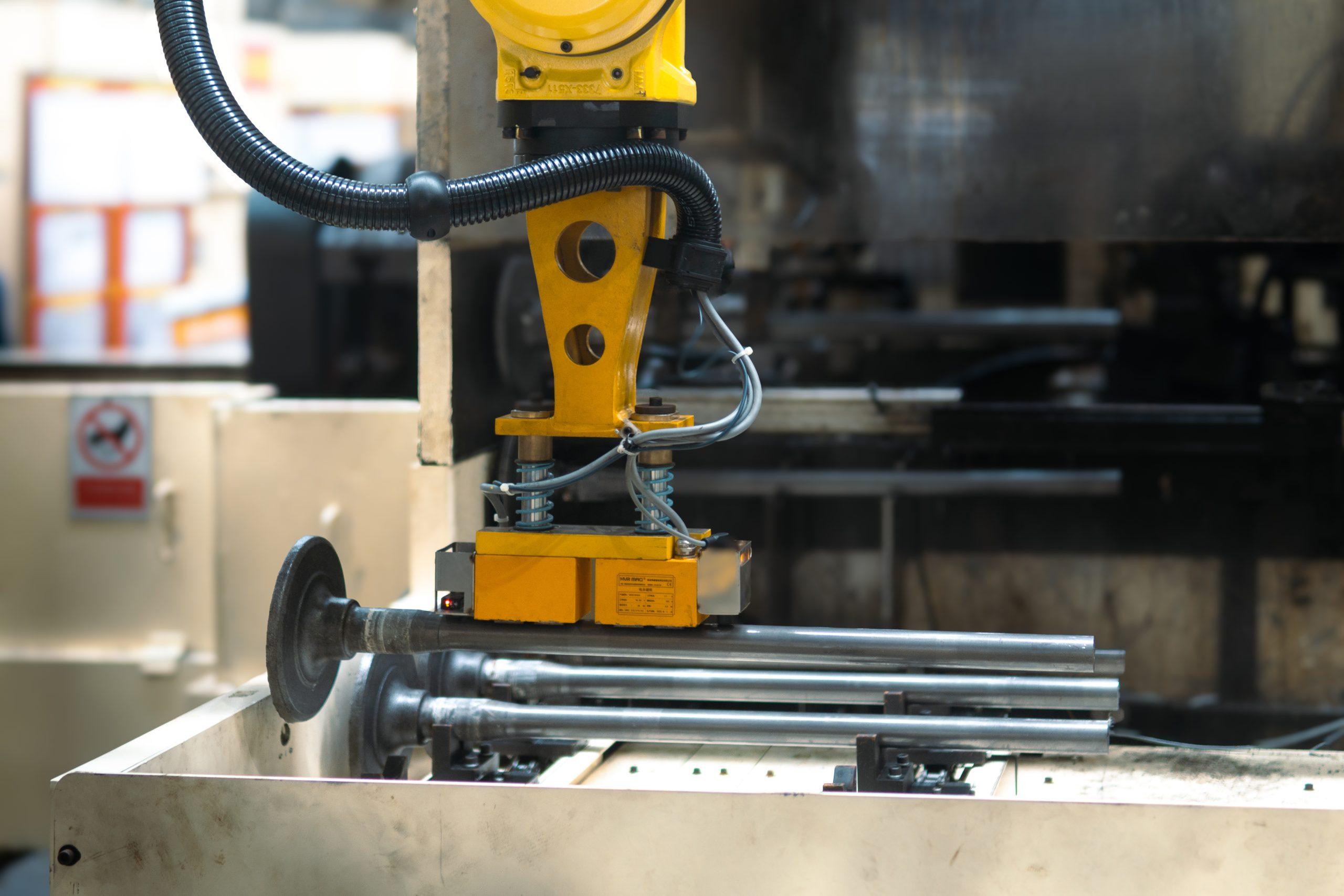

- For Pipes&round bars
- Round shape magnent
| Model | Rated lifting force（thickness＞16mm) | Applicable thickness | L | W | H |
| HEPMP-1510P50 | 160kg | ≥6mm | 150mm | 100mm | 72mm |
| HEPMP-320P50 | 320kg | ≥6mm | 180mm | 180mm | 72mm |
| HEPMP-500P50 | 500kg | ≥6mm | 250mm | 180mm | 72mm |
| HEPMP-640P50 | 640KG | ≥6mm | 320mm | 180mm | 72mm |
| HEPMP-720P50 | 720kg | ≥6mm | 250mm | 250mm | 72mm |
| HEPMP-2012P70 | 320kg | ≥8mm | 190mm | 110mm | 72mm |
| HEPMP-2020P70 | 640kg | ≥8mm | 200mm | 200mm | 72mm |
| Model | Rated lifting force（thickness＞10mm) | Applicable thickness | L | W | H |
| HEPMP-30P30B | 30kg | 2-12mm | 100mm | 54mm | 58mm |
| HEPMP-60P30B | 60kg | 2-12mm | 100mm | 100mm | 58mm |
| HEPMP-100P30B | 100kg | 2-12mm | 140mm | 100mm | 58mm |
| HEPMP-200P30B | 200kg | 2-12mm | 260mm | 100mm | 58mm |
| HEPMP-300P30 | 300KG | 2-12mm | 260mm | 110mm | 58mm |
| HEPMP-60P30 | 60kg | 3-12mm | 110mm | 60mm | 58mm |
| HEPMP-1406P30 | 90kg | 3-12mm | 140mm | 60mm | 58mm |
| HEPMP-1817P30 | 300kg | 3-12mm | 180mm | 170mm | 58mm |
| HEPMP-1906P30 | 120kg | 2-12mm | 190mm | 60mm | 58mm |
| HEPMP-120P30 | 120KG | 2-12mm | 190mm | 60mm | 60mm |
| HEPMP-90P30 | 90KG | 2-12mm | 150mm | 60mm | 60mm |
| Model | Rated lifting force（thickness＞12mm) | Applicable thickness | L | W | H |
| HEPMSP-60P45×24 | 60kg | ≥3mm | 145mm | 90mm | 81mm |
| HEPMSP-100P45×24 | 100kg | ≥3mm | 200mm | 120mm | 81mm |
| HEPMP-2811S | 120KG | ≥3mm | 280mm | 110mm | 80mm |
| HEPMSP-200P45×24 | 200kg | ≥3mm | 370mm | 105mm | 81mm |
| HEPMSP-300P45×24 | 300kg | ≥3mm | 435mm | 105mm | 81mm |
| Model | Rated lifting force | Applicable thickness | Diameter | H | Weight |
| HEPM1-25 | 3KG | ≥2mm | 25mm | 35mm | 120g |
| HEPM1-40 | 20KG | ≥2mm | 40mm | 48mm | 420g |
| HEPM1-50 | 30KG | ≥10mm | 49mm | 45mm | 650g |
| HEPM1-60 | 50KG | ≥10mm | 60mm | 50mm | 1kg |
| HEPM1-75 | 90KG | ≥12mm | 78mm | 48mm | 1.5kg |
| HEPM1-100 | 150KG | ≥14mm | 100mm | 55mm | 3.5kg |

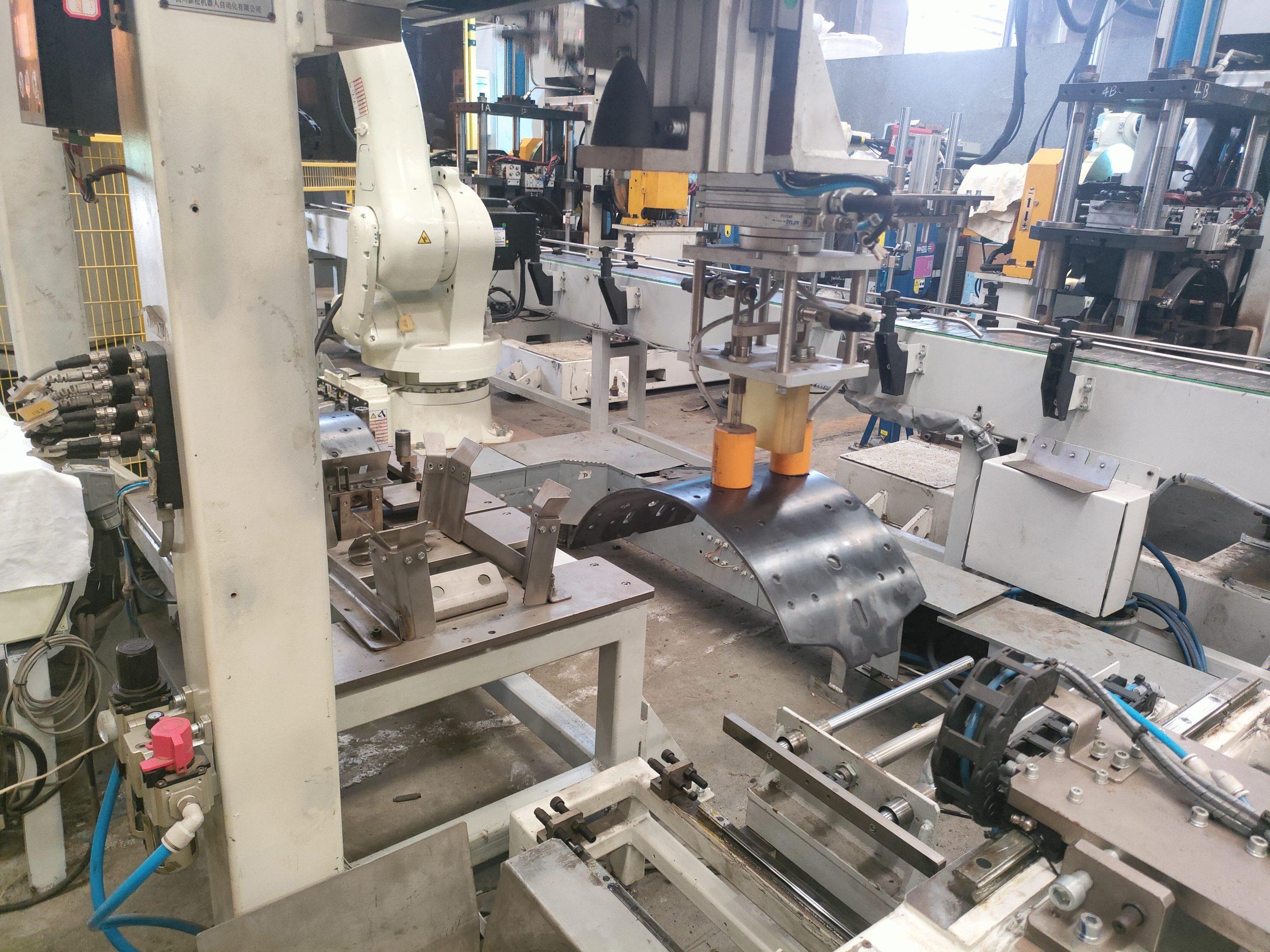

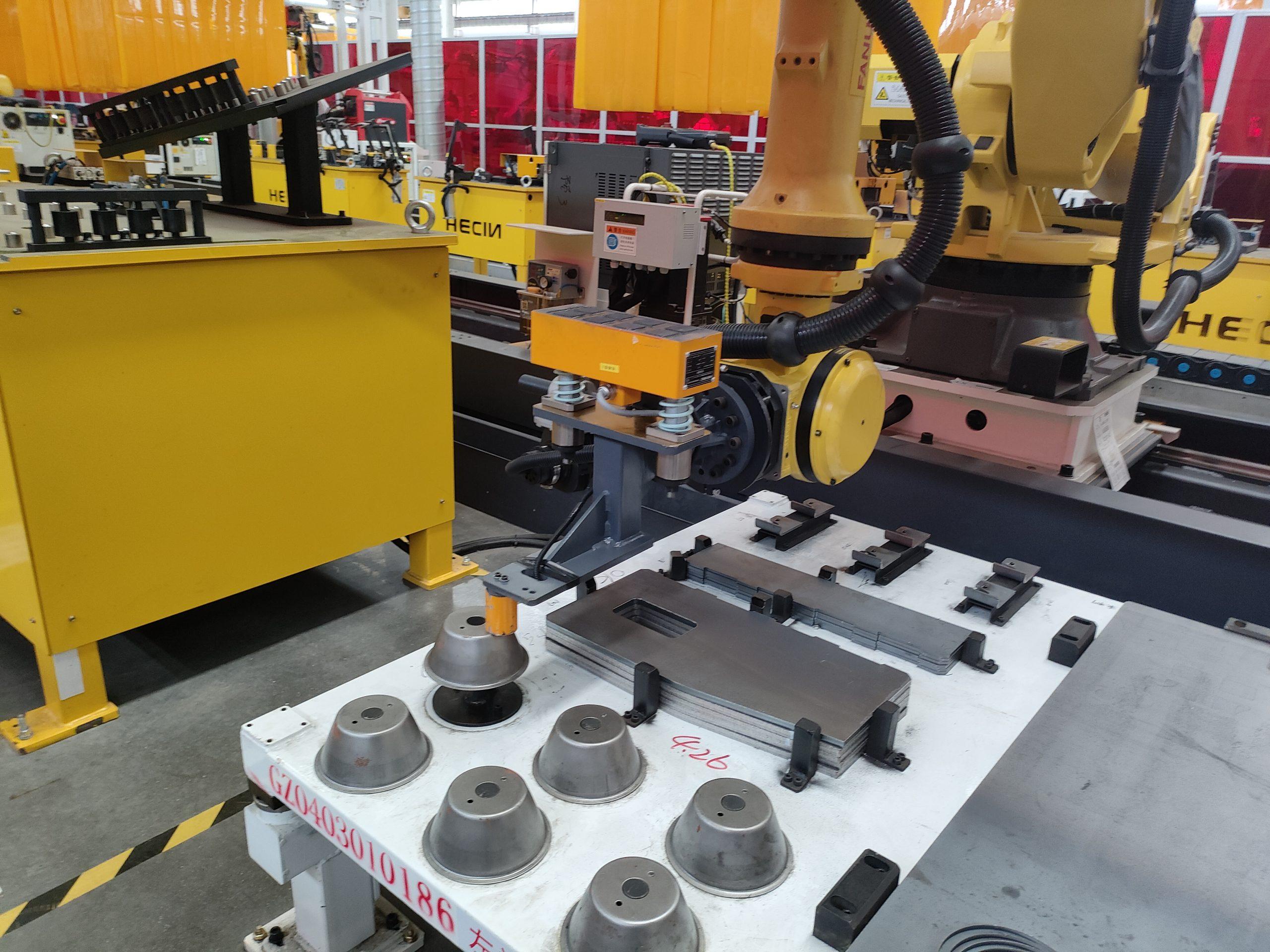

Bin Picking Application
End-of-Arm Tool for bin picking on an automated production line, it is possible to continuously pick up workpieces from the material box and deliver them to designated processing or assembly positions, thereby improving the production efficiency of the entire production line.
Your Site Related Products
One Stop Customized End-of-Arm Tool manufacturer in China
- We will provide customized solutions
- Complete qualification certification, exported to all over the world
- Quick response, both pre-sales and after-sales services are guaranteed
Under normal use, as long as the temperature does not exceed the allowable range, the magnetic field of the electro permanent magnet will decay by no more than 5% within 10 years.
Composed of neodymium iron boron, aluminum nickel cobalt, coils, magnetic poles, and other components. The most important thing is our technology.
Our company’s product standard maximum working temperature is 80 ° C. If it exceeds 80 ° C, it will have an impact on the electric permanent magnet magnetic force. Special high-temperature design is required.
Yes, we have agents in Europe, South America, Türkiye, the United States and other regions
