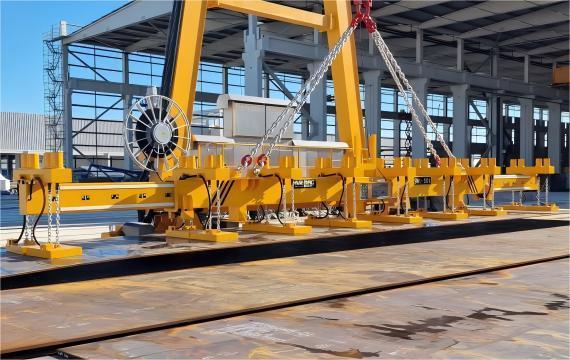

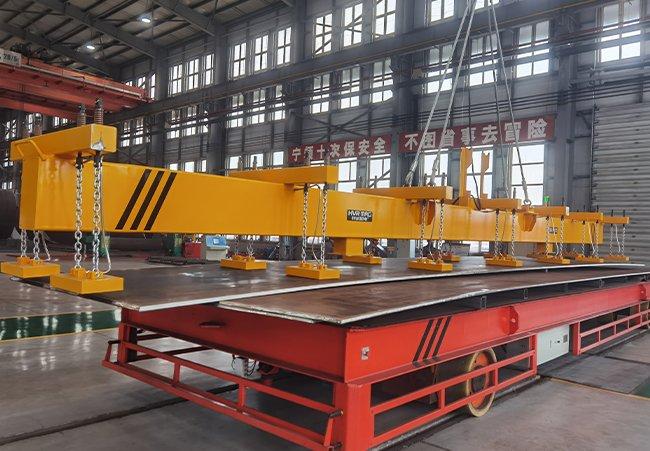

Electro Permanent Steel Plate Lifting Magnets
Electro Permanent Steel Plate Lifting Magnets offer precise, single-plate lifting with superior strength and safety, designed for efficient steel handling, ensure secure lifting without damaging the surface.
- Spreader Beam: Designed for steel plates of varying dimensions and weights
- Thickness Lifting: Starting from a minimum thickness of 5mm
- Single Sheet Lifting: Handling of individual steel sheets with precision.
- Multi-Level Pickup: 4 Levels integrated cycle for thin plates.
- Remote Control: Digital push buttons and radio remote control
- High Safety: 3:1 safety factor.

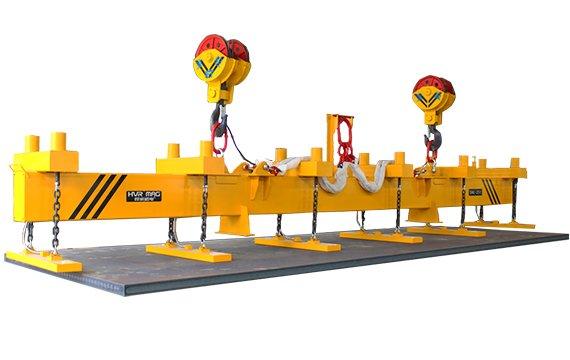

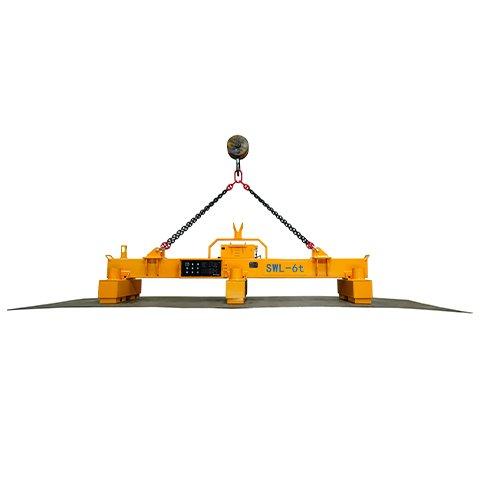

- HM1 Electro Permanent Steel Plate Lifting Magnets

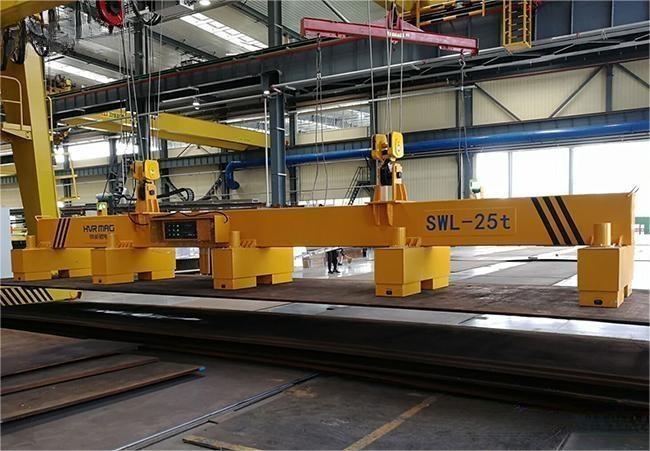

- HM2 Series Electro Permanent Magnetic Telescopic Lifting Beam
- HBEPP Serie Battery Powered Lifting Magnets For Plates
| Art No. | Series Code | Length(mm/in) | Width(mm/in) | Thickness(mm/in) | Dead Weight(kg/Lbs) | Capacity(kg/Lbs) | ||
| Min. | Max. | Min. | Max. | Min. | ||||
| HM1-06-010 | HM1-010A0104-1 | 400/15.7 | 6000/236 | 60/2.3 | 400/45.7 | 4/0.1 | 4230/947 | 1000/2200 |
| HM1-06-012 | HM1-012A0104-1 | 200/7.9 | 6000/236 | 250/9.8 | 1500/59 | 8/0.3 | 450/992 | 1200/2640 |
| HM1-06-030 | HM1-030A0203-1 | 500/19.7 | 6000/236 | 500/19.7 | 3200/126 | 5/0.2 | 900/1984 | 3000/6600 |
| HM1-06-060 | HM1-060A0203-1 | 500/19.7 | 6000/236 | 500/19.7 | 3200/126 | 5/0.2 | 1000/2200 | 6000/2727 |
| HM1-06-090 | HM1-090A0203-1 | 500/19.7 | 6000/236 | 500/19.7 | 3200/126 | 5/0.2 | 1100/2420 | 9000/19800 |
| HM1-06-240 | HM1-240A0203-1 | 500/19.7 | 6000/236 | 580/22.8 | 3200/126 | 8/0.3 | 1600/3520 | 24000/52800 |
| HM1-09-050 | HM1-050A0204-1 | 2350/92.5 | 9000/354 | 500/19.7 | 3200/126 | 5/0.2 | 1200/2640 | 5000/11000 |
| HM1-09-080 | HM1-080A0204-1 | 2350/92.5 | 9000/354 | 500/19.7 | 3200/126 | 5/0.2 | 1300/2860 | 8000/3636 |
| HM1-09-090 | HM1-090A0204-1 | 2350/92.5 | 9000/354 | 500/19.7 | 3200/126 | 5/0.2 | 1400/3080 | 9000/19800 |
| HM1-09-120 | HM1-120A0204-1 | 2350/92.5 | 9000/354 | 500/19.7 | 3200/126 | 5/0.2 | 1500/3300 | 12000/26400 |
| HM1-09-160 | HM1-160A0204-1 | 2350/92.5 | 9000/354 | 600/23.6 | 3200/126 | 5/0.2 | 1600/3520 | 16000/35200 |
| HM1-12-019 | HM1-019A0106-1 | 2100/82.8 | 12000/472 | 250/9.8 | 1500/59 | 5/0.2 | 740/1628 | 1900/4180 |
| HM1-12-050 | HM1-050A0205-1 | 5000/196 | 12000/472 | 500/19.7 | 3500/137.8 | 5/0.2 | 1600/3520 | 5000/11000 |
| HM1-12-080 | HM1-080A0205-1 | 5000/196 | 12000/472 | 500/19.7 | 3500/137.8 | 5/0.2 | 1800/3960 | 8000/17600 |
| HM1-12-100 | HM1-100A0205-1 | 5000/196 | 12000/472 | 500/19.7 | 3500/137.8 | 5/0.2 | 2000/4400 | 10000/22000 |
| HM1-12-150 | HM1-150A0205-1 | 5000/196 | 12000/472 | 500/19.7 | 3500/137.8 | 5/0.2 | 2200/4840 | 15000/33000 |
| HM1-12-200 | HM1-200A0205-1 | 5000/196 | 12000/472 | 600/23.6 | 3500/137.8 | 5/0.2 | 2400/5280 | 20000/44000 |
| HM1-12-240 | HM1-240A0206-1 | 5000/196 | 12000/472 | 600/23.6 | 3500/137.8 | 5/0.2 | 2800/6160 | 24000/52800 |
| HM1-15-025 | HM1-025A0108-1 | 4000/15.7 | 15000/590 | 200/7.8 | 800/31.4 | 6/0.2 | 950/2090 | 2500/5500 |
| HM1-16-100 | HM1-100A0206-1 | 2800/110 | 16000/630 | 500/19.7 | 3500/137.8 | 5/0.2 | 2600/5720 | 10000/22000 |
| HM1-16-140 | HM1-140A0206-1 | 2800/110 | 16000/630 | 500/19.7 | 3500/137.8 | 5/0.2 | 2900/6380 | 14000/30800 |
| HM1-16-200 | HM1-200A0206-1 | 2800/110 | 16000/630 | 600/23.6 | 3500/137.8 | 5/0.2 | 3100/6820 | 20000/44000 |
| HM1-16-240 | HM1-240A0206-1 | 2800/110 | 16000/630 | 650/25.5 | 3500/137.8 | 5/0.2 | 3400/7480 | 24000/52800 |
| HM1-06-005 | HM1-010A0104-1 | 400/15.7 | 6000/236 | 60/2.3 | 400/16 | 8/0.3 | 430/946 | 480/1056 |
| Art No. | Series Code | Length(mm/in) | Width(mm/in) | Thickness(mm/in) | Dead Weight(kg/Lbs) | Capacity(kg/Lbs) | ||
| Min. | Max. | Min. | Max. | Min. | ||||
| HM2-12-050 | HM2-050A0204-1 | 3000/118 | 12000/472 | 500/20 | 3500/137.8 | 5/0.2 | 2350/5170 | 5000/11000 |
| HM2-12-080 | HM2-080A0204-1 | 3000/118 | 12000/472 | 500/20 | 3500/137.8 | 5/0.2 | 2500/5500 | 8000/17600 |
| HM2-12-090 | HM2-090A0204-1 | 3000/118 | 12000/472 | 500/20 | 3500/137.8 | 5/0.2 | 2650/5830 | 9000/19800 |
| HM2-12-120 | HM2-120A0204-1 | 3000/118 | 12000/472 | 500/20 | 3500/137.8 | 5/0.2 | 2800/6160 | 12000/26400 |
| HM2-12-150 | HM2-150A0204-1 | 3000/118 | 12000/472 | 500/20 | 3500/137.8 | 5/0.2 | 2950/6490 | 15000/33000 |
| HM2-12-200 | HM2-200A0206-1 | 3800/149.6 | 12000/472 | 500/20 | 3500/137.8 | 8/0.3 | 3350/7370 | 20000/44000 |
| HM2-12-240 | HM2-240A0206-1 | 3800/149.6 | 12000/472 | 500/20 | 3500/137.8 | 5/0.2 | 3550/7810 | 24000/52800 |
| HM2-16-090 | HM2-090A0206-1 | 3100/122 | 16000/630 | 500/20 | 3500/137.8 | 5/0.2 | 3300/7260 | 9000/19800 |
| HM2-16-120 | HM2-120A0206-1 | 3100/122 | 16000/630 | 500/20 | 3500/137.8 | 5/0.2 | 3400/7480 | 12000/26400 |
| HM2-16-160 | HM2-160A0206-1 | 3100/122 | 16000/630 | 500/20 | 3500/137.8 | 5/0.2 | 3600/7920 | 16000/35200 |
| HM2-16-200 | HM2-200A0206-1 | 3100/122 | 16000/630 | 500/20 | 3500/137.8 | 5/0.2 | 3800/8360 | 20000/44000 |
| HM2-16-240 | HM2-240A0206-1 | 3100/122 | 16000/630 | 250/9.8 | 500/20 | 5/0.2 | 4000/8800 | 24000/52800 |
|
Art No. |
Series Code | Length(mm/in) | Width(mm/in) | Thickness(mm/in) | Dead Weight(kg/Lbs) | Capacity(kg/Lbs) | ||
| Min. | Max. | Min. | Max. | Min. |
|
|||
| HBEPP-03-008 | HBEPP-008L0203-2 | 500/20 | 3000/118 | 900/35.4 | 2000/79 | 2/0.1 | 465/1023 | 600/13200 |
| HBEPP-03-010 | HBEPP-010A0102-2 | 500/20 | 3000/118 | 500/20 | 1500/59 | 5/0.2 | 500/1100 | 1000/22000 |
| HBEPP-06-030L | HBEPP-030A0204-2 | 1700/66.9 | 6000/236 | 500/20 | 2000/79 | 2/0.1 | 1140/2508 | 3000/66000 |
| HBEPP-15-014 | HBEPP-025A0108-2 | 2100/82.6 | 15000/590 | 310/12.2 | 800/31 | 5/0.2 | 1090/2398 | 1400/30800 |
| HBEPP-06-030 | HBEPP-030B0203-2 | 500/20 | 6000/236 | 500/20 | 3500/137.8 | 5/0.2 | 950/2090 | 3000/66000 |
| HBEPP-06-060 | HBEPP-060J0203-2 | 500/20 | 6000/236 | 500/20 | 3500/137.8 | 5/0.2 | 1250/2750 | 6000/132000 |
| HBEPP-06-090 | HBEPP-090J0203-2 | 300/11.8 | 6000/236 | 600/23.6 | 3500/137.8 | 6/0.2 | 950/2090 | 9000/198000 |
| HBEPP-09-080 | HBEPP-080J0204-2 | 2500/98.4 | 9000/354 | 500/20 | 3500/137.8 | 5/0.2 | 1640/3608 | 8000/176000 |
| HBEPP-09-120 | HBEPP-120J0204-2 | 2500/98.4 | 9000/354 | 500/20 | 3500/137.8 | 5/0.2 | 1750/3850 | 12000/264000 |
| HBEPP-12-100 | HBEPP-100J0205-2 | 500/20 | 12000/472 | 500/20 | 3500/137.8 | 5/0.2 | 2010/4422 | 10000/220000 |
| HBEPP-12-180 | HBEPP-180J0208-2 | 1700/66.9 | 12000/472 | 1200/47.2 | 3500/137.8 | 5/0.2 | 3260/7172 | 18000/396000 |
| HBEPP-06-020/T | HBEPP-020B0104-2 | 500/20 | 6000/236 | 250/9.8 | 500/20 | 6/0.2 | 780/1716 | 2000/44000 |
| HBEPP-06-060/T | HBEPP-060B0104-2 | 500/20 | 6000/236 | 500/20 | 3500/137.8 | 6/0.2 | 1030/2260 | 6000/132000 |
| HBEPP-16-200 | HBEPP-200J0208-2 | 2100/82 | 16000/630 | 1300/51 | 3500/137.8 | 6/0.2 | 4650/10230 | 20000/44000 |
| HBEPP-16-250 | HBEPP-250J0208-2 | 2100/82 | 16000/630 | 1300/51 | 3500/137.8 | 6/0.2 | 4860/10692 | 25000/55000 |

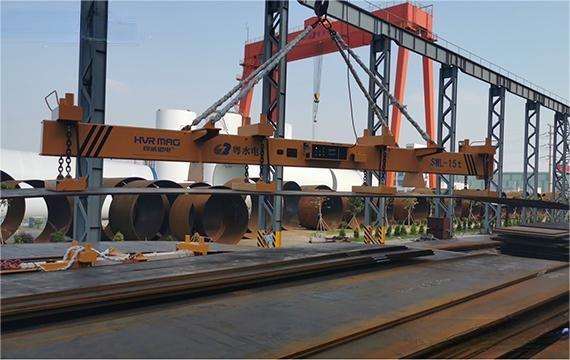

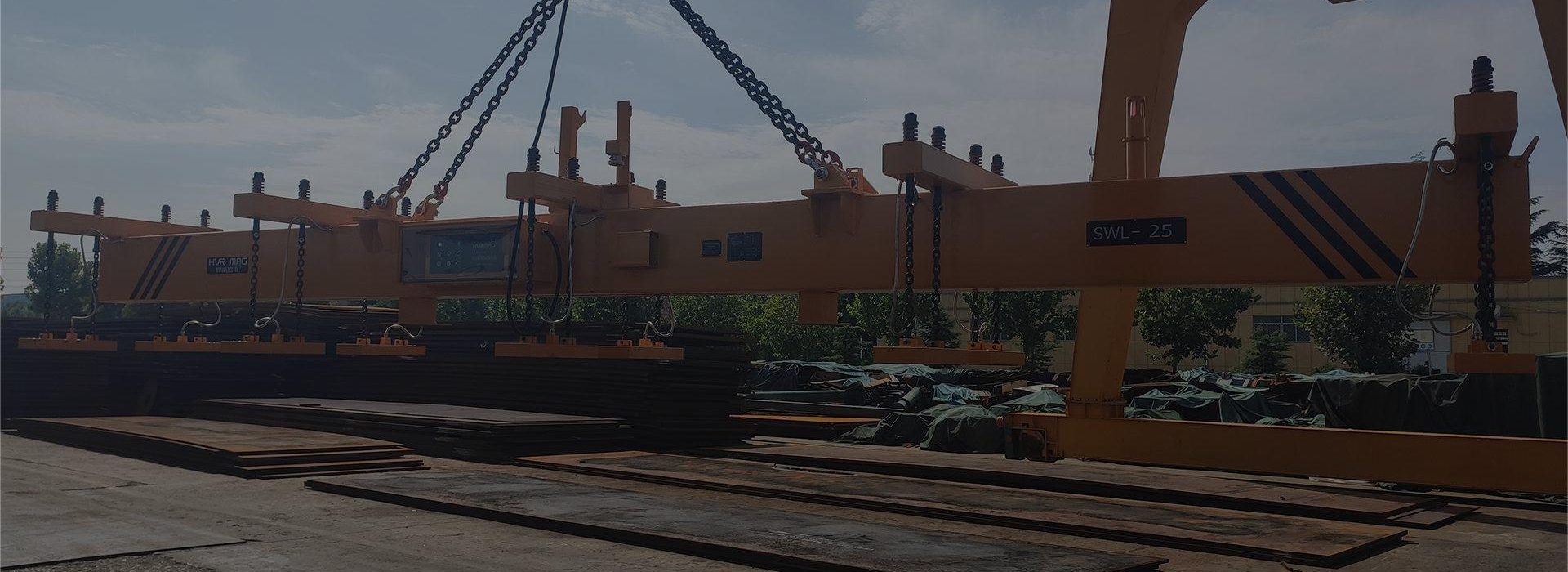

Electro Permanent Steel Plate Lifting Magnets
HVRMAG Electro Permanent Steel Plate Lifting Magnets designed for the efficient and safe handling of individual steel plates, ensures each steel plate is securely gripped and moved without the risk of damage or deformation, maintaining the integrity of the material.
Offers customizable solutions to fit the specific dimensions and weight capacities required by various industries, ensuring the lifting magnets are perfectly suited for the intended application.

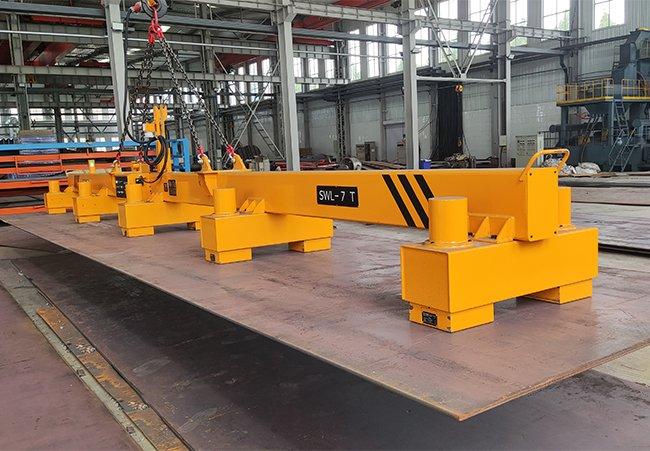

Electro Permanent Steel Plate Lifting Magnets Advantage
Utilizes electro-permanent magnets that require only a brief electrical pulse to activate and maintain a strong magnetic force without continuous power, ensuring safety even during power outages.
- No-Current Safety:Magnetic force holds in power outages
- Electro-Permanent Magnet: Suspended to conform perfectly to the steel sheet’s surface.
- High advanced SPC-system (System Performance Check)
- Lamp Block Indicator:allowing movement only when the green light is steadily illuminated.

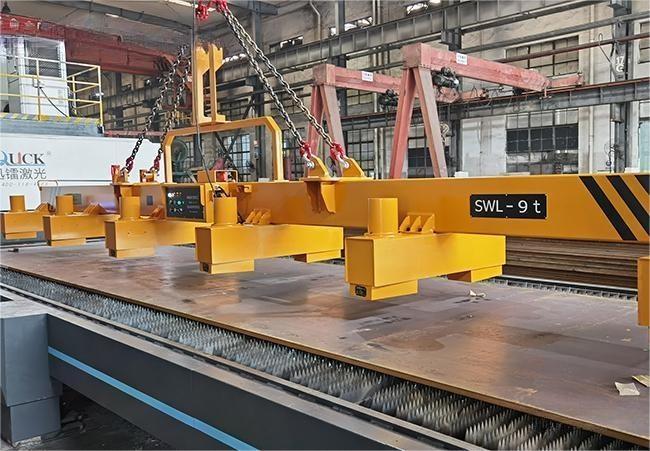

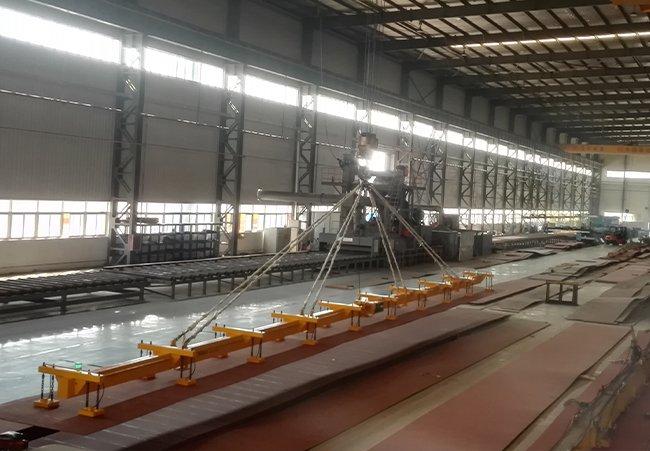

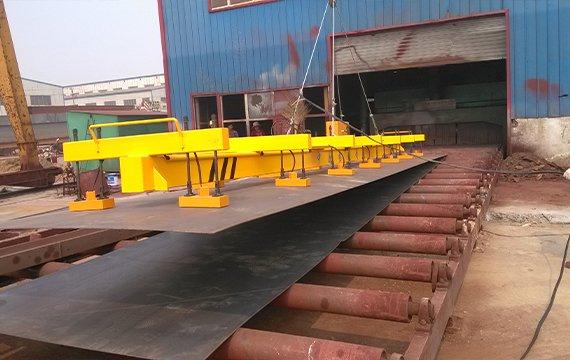

Electro Permanent Steel Plate Lifting Magnets Cutting Application
Electro Permanent Steel Plate Lifting Magnets securely grip and lift single steel plates with precision without disturbing others, which is crucial for maintaining order and efficiency in cutting processes.
They minimize the risk of manual handling injuries and prevent surface damage to the steel, which is essential for maintaining the quality of the final cutting pieces.

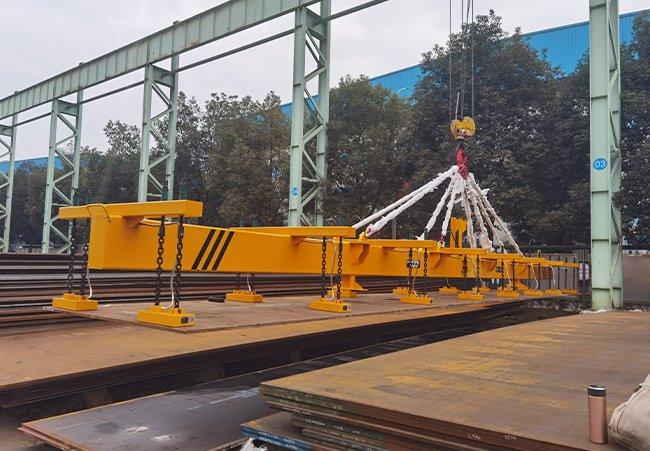

Electro Permanent Steel Plate Lifting Magnets Shipyard Application
Electro Permanent Steel Plate Lifting Magnets handle large steel plates with precision and efficiency, ensure safe and secure lifting, reducing the risk of accidents and surface damage during ship assembly.
They are also crucial for tasks like welding, fitting, and positioning, providing a strong grip on steel without the need for electricity, which is particularly beneficial in environments where power outages could compromise safety .
