Electro-Permanent Battery Powered Lifting Magnet

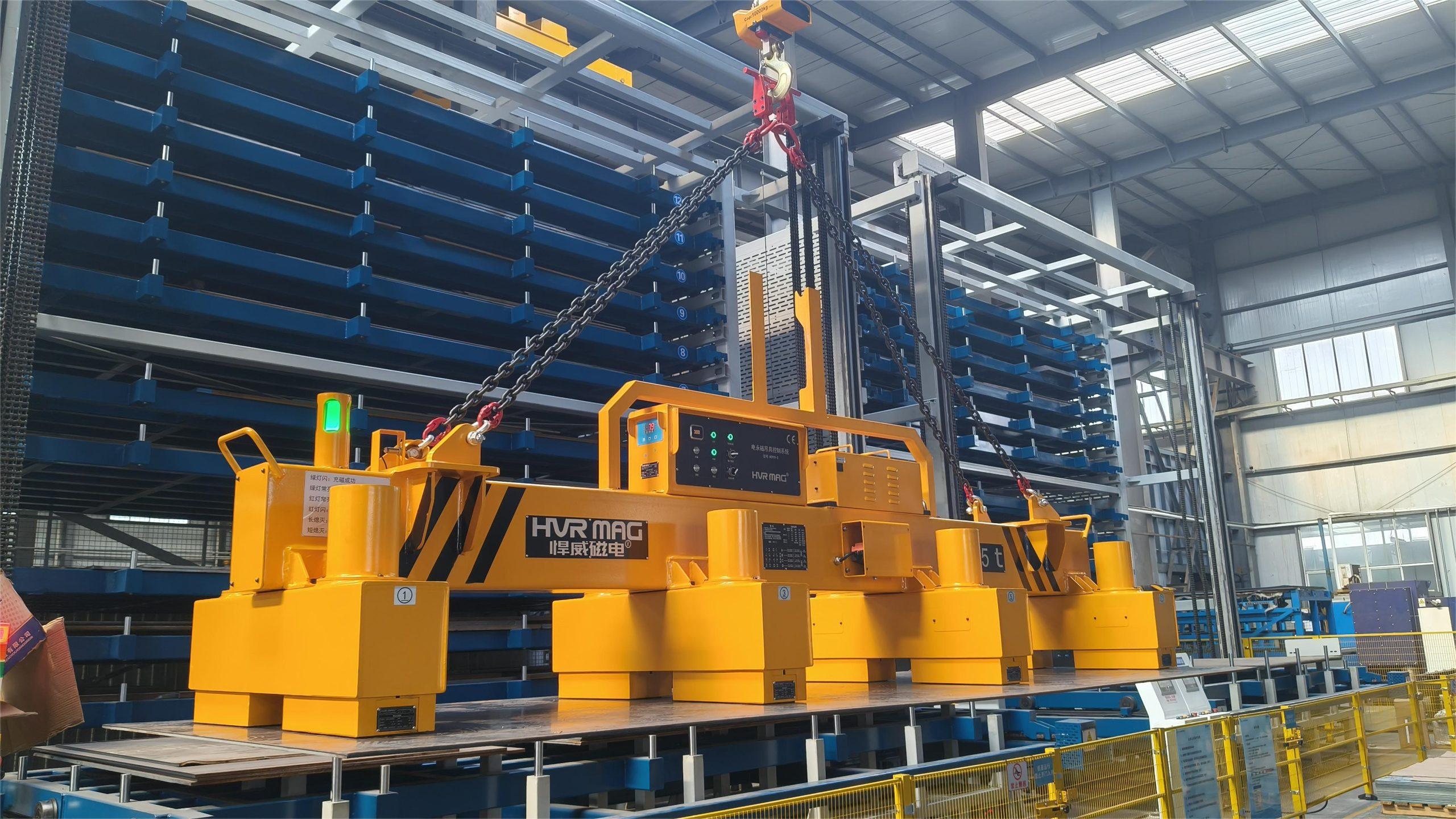

HVR MAG Battery Powered Lifting Magnet use the electro-permanent magnet technology, combines the benefits of both permanent magnets and electromagnets, powered by a built-in battery, efficiently handle ferrous heavy duty without the limitation of continuous power supply.

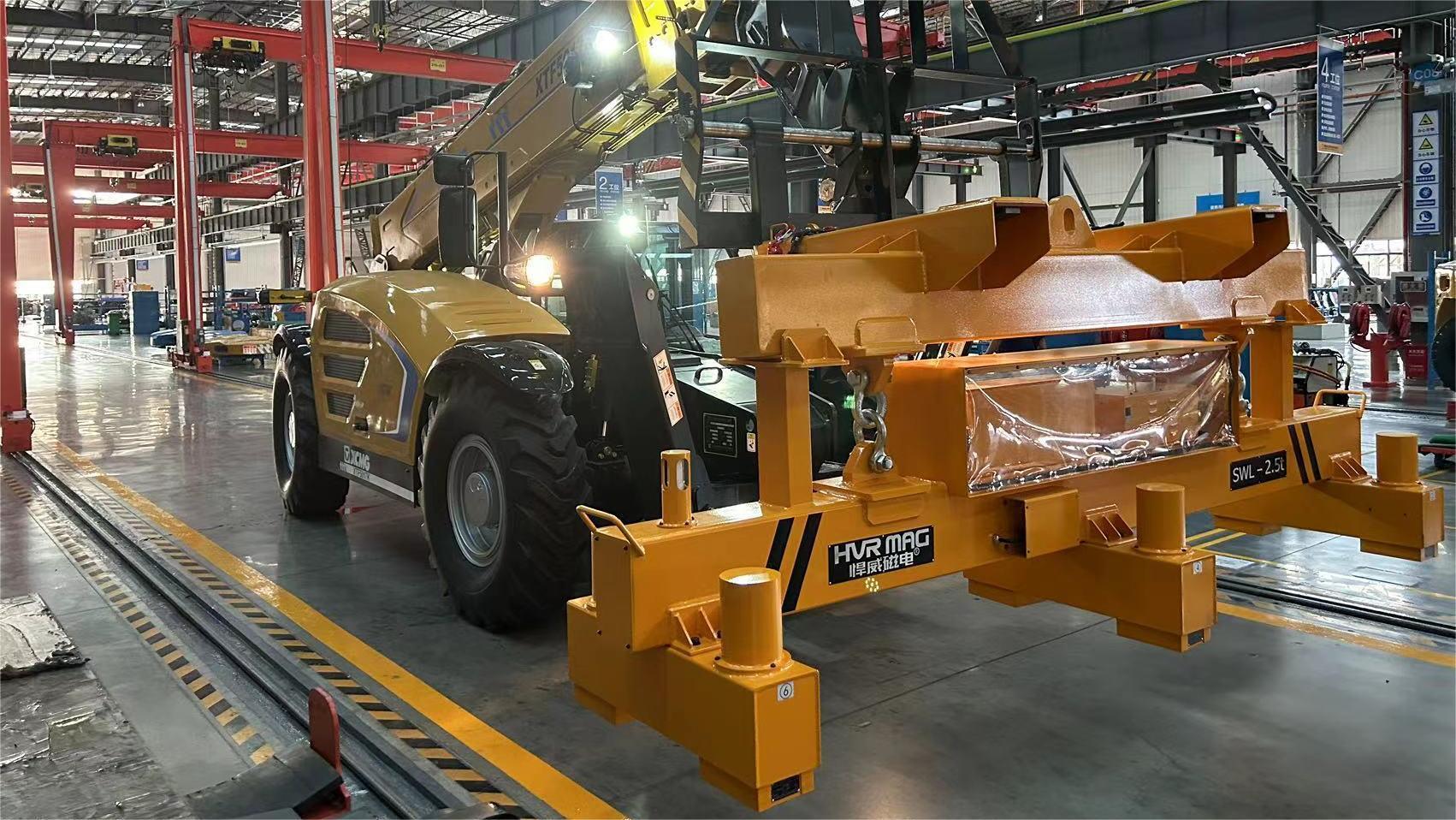

HVR MAG Electro-Permanent Battery Powered Lifting Magnet is ideal to use in outdoor where there is no access to electricity, like sea port, yard, warehouse, and cutting table,etc.
Battery Powered Lifting Magnet

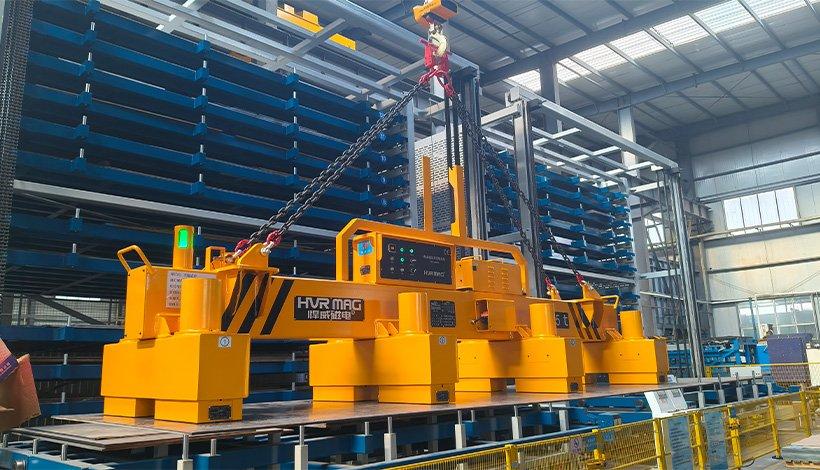

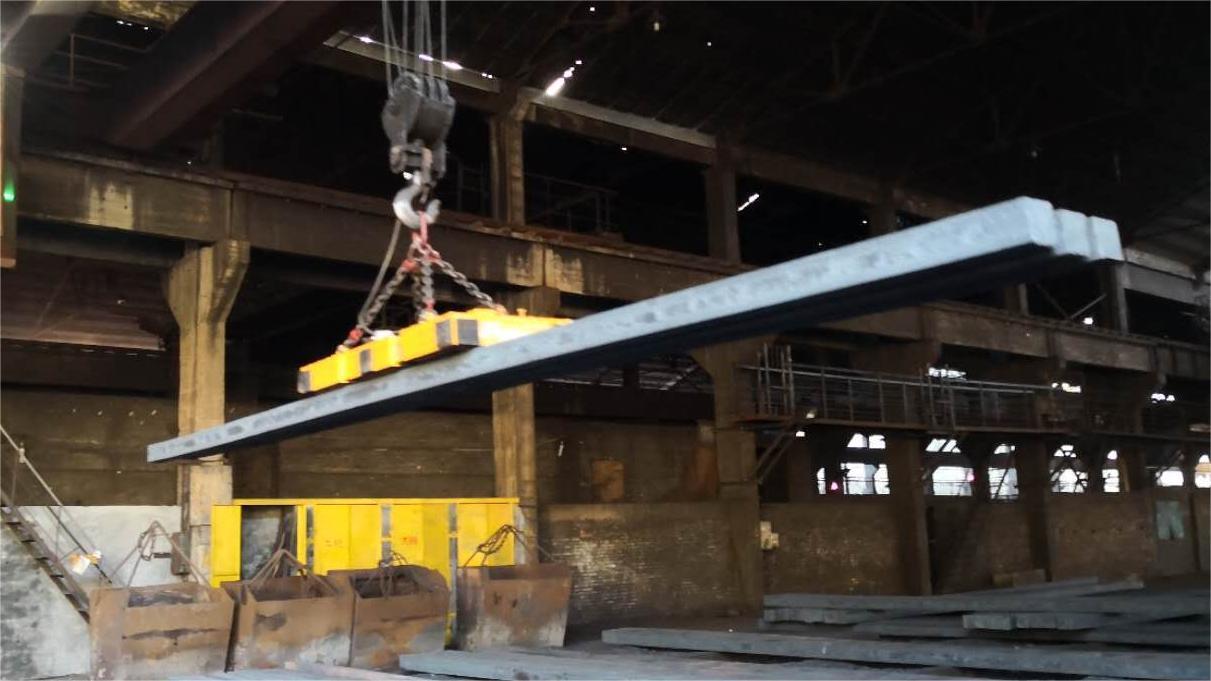

Battery Powered Lifting Magnet offers customized solutions to handle various steel materials accurately and efficiently, including tubes, plates and profiles, improving productivity and safety in various industrial environments, no matter inside or outside the plant.
Battery Powered Lifting Magnet Feature
HVR MAG Battery Powered Lifting Magnet offer flexible, portable solution to manage heavy materials independently without external power.

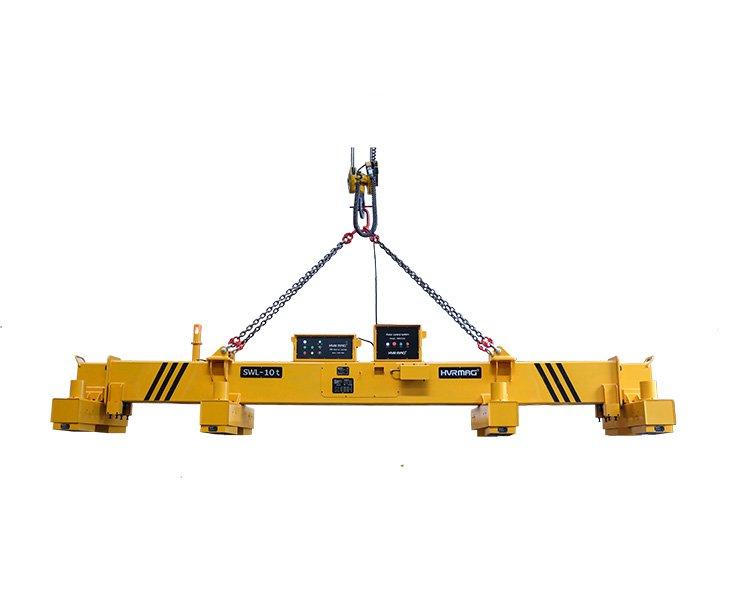

Welded with chains and lifting rings
Abnormal situation reported immediately by an error code
Adjustable magnetic force to lifting single steel plate
Prevents accidental demagnetizing in the air
Digital push buttons and radio remote control
Minimum Safety Factor of 3: 1, measured at an air gap of 0.4 mm
2 buttons (SAFE + DEMAG) must be pressed consecutively on the remote control
Electro Permanent Battery Powered Lifting Magnet perfect adaptation to the steel material
Battery Powered Lifting Magnet with Rechargeable Battery
HVR MAG Battery Powered Lifting Magnet integrates lithium battery pack, only consume electricity in MAG and DEMAG operation, the battery has an autonomy of over 500 cycles, using the built-in charger (220V / 50Hz), takes about 5 to 8 hours to charge fully, depending on the model.
Battery Powered Lifting Magnet with Level LED indicator

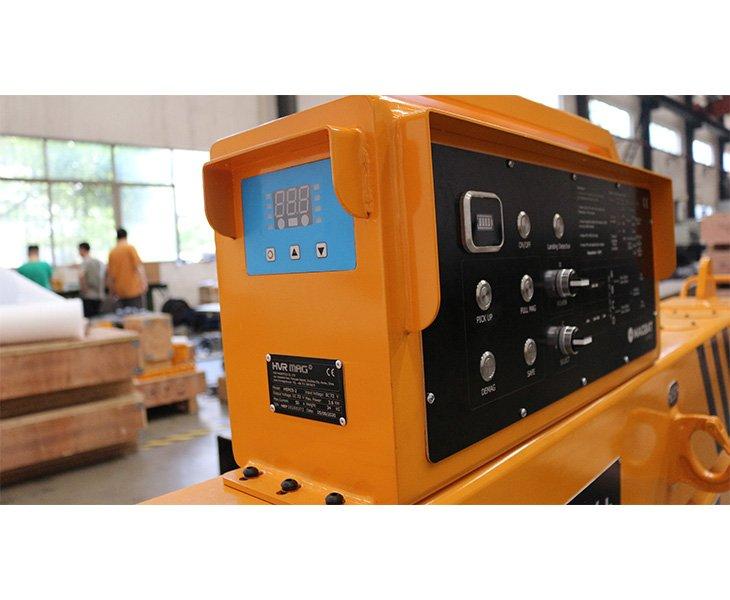

Battery Powered Lifting Magnet equipped a synoptic display which contain the specific LED indicator to show the battery power level:
-When the battery in normal condition, all the power indicator lights on
-When the battery is low and waiting to be charged, the outer frame flashes;
-When the battery fully charged, the power indicator lights flash as a whole
Please note that when the battery is low (indicated by a yellow light, a beeping alarm, and the E80 fault code), the Battery Powered Lifting Magnet will prohibit magnetization operations, only allow demagnetization operations.
Battery Powered Lifting Magnet Application
Battery Powered Lifting Magnet are used a lot in railway, shipbuilding, aerospace, and other transportation equipment manufacturing where doesn’t the condiction to connnect to the direct electricity.
Battery Powered Lifting Magnet, the HEPMSP series is admired by one of our Shipyard clientes. Help the customer lifting, loading, unloading, and feeding in their workshops, reducing downtime and enhancing productivity.

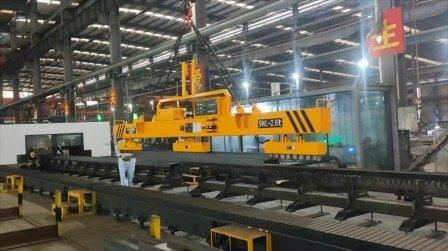

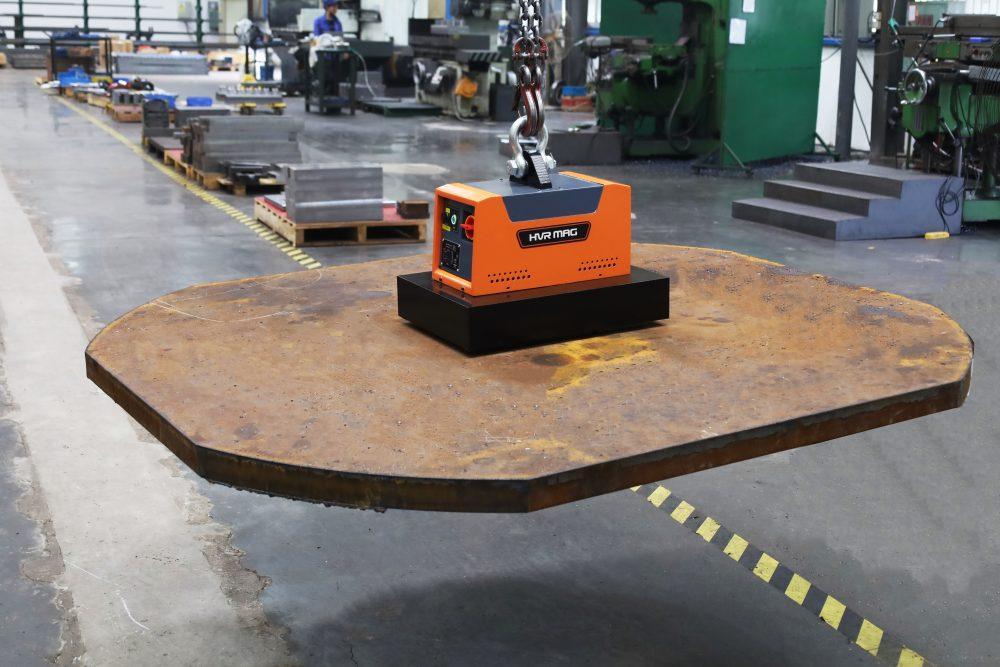

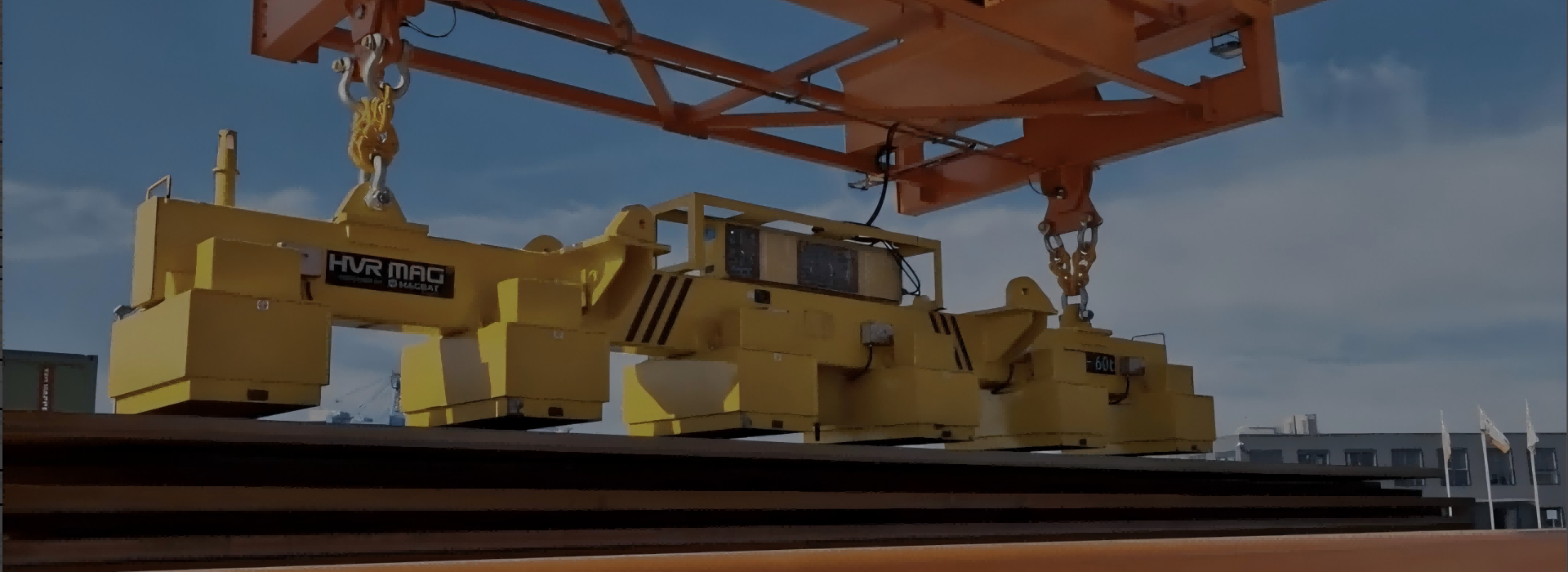

Battery Powered Lifting Magnet, the HBEP Series, is free of restricting cords and wires and have the further advantage of being usable in areas where electric power is not available – inside or outside the manufacturing plant.
For safety consideration, magnetization and demagnetization operations cannot be operated during the charging of the Battery Powered Lifting Magnet.

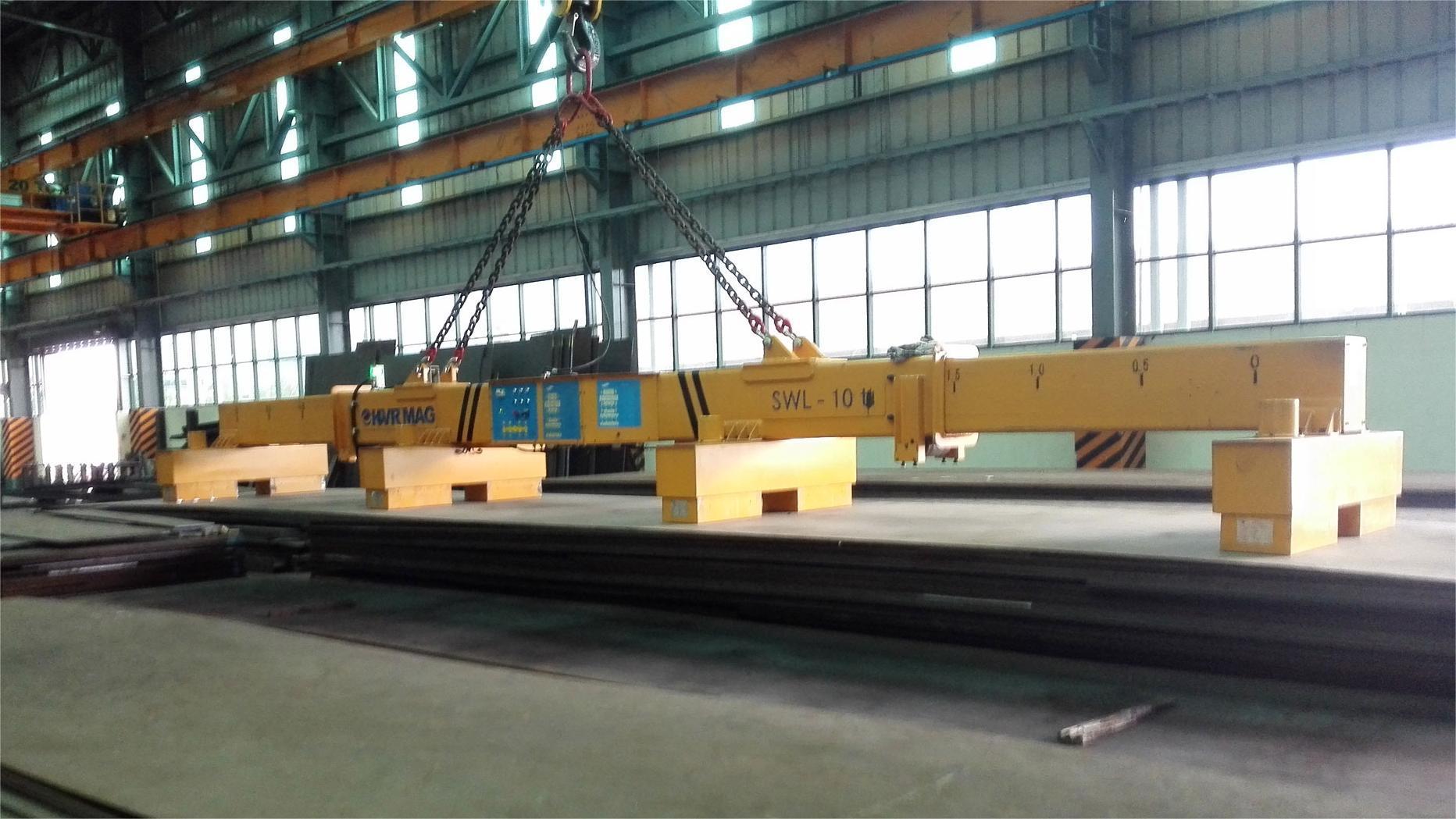

Of course, HVR MAG not only provide the customized Battery Powered Lifting Magnet, but also offer the Lifting Magnet connecting the power directly. Please refer to the page Lifting Magnet to choose your model
HVR MAG Battery Powered Lifting Magnet passed the CE certificate, now has been exported to Europe, USA, Mexico, South Africa, South America, etc, there is no problem ship the Battery Powered Lifting Magnet to your country. If there is specific import limitation for the products contain the battery, please inform us in advance.
Contact us for Battery Powered Lifting Magnet
You’ll receive exclusive access to new battery powered lifting magnet releases, technical insights, and industry achievements.
Don’t miss out on this opportunity to stay informed and ahead of the curve in the world of battery powered lifting magnet technology.
The battery powered lifting magnet only consume electricity on MAG and DEMAG, without the risk of dropping due to low battery levels.
If the battery is low, the battery powered lifting magnet only support the demagnetization operation. The battery powered lifting magnet turns on the landing detection function by default, the demagnetization operation of the electro permanent magnet must be allowed only after the battery powered lifting magnet is detected to have fallen.
If the battery powered lifting magnet shows a low voltage alarm, please charge it promptly to prevent battery damage from deep discharge.
For long-term storage of the battery powered lifting magnet without usage, keep the battery fully charged regularly to avoid damage from deep discharge.
Important Note: The battery powered lifting magnet controller operates on direct current, and both the main board and channel board contain numerous capacitors. During maintenance or wiring, it is crucial to pay special attention to the polarity of the wires; connections cannot be reversed. After reconnecting, please double-check before powering on the battery powered lifting magnet. The incorrect connections will lead to capacitor failure on the circuit board.
HVR MAG battery powered lifting magnet have 3 types of controller, HEPC9-1、HEPC9-2 、HEPC9-3.
For HEPC9-1、HEPC9-2, please move the battery powered lifting magnet to a well-ventilated area without flammable and explosive materials. Then charge the battery powered lifting magnet with the supplied power cord with a three-prong plug, by inserting the prong end into the charging port on the panel and the other end into a wall outlet.
After the charger is plugged in, if the battery is not fully charged, the digital tube will display in an increasing manner. After fully charged, the digital tube will flash full grid.
Important Note: Please make sure that the voltage of the wall outlet matches the voltage indicated below the charging port, the mismatched voltage will damage the internal circuitry.
For HEPC9-3, please use a DC charging station that complies with GB/T27930-2015 for charging:
- Open the DC charging interface cover of the battery powered lifting magnet.
- Insert the charging gun.
- Charge using the automatic charging mode of the station.
- After the battery is fully charged, please disconnect the charger promptly.
Note: Some custom battery powered lifting magnet may have multiple battery packs, and the charging lines do not go through a controller, so there is no charging indicator function.
