Electro Permanent Lifting Magnet
- No power consume during lifting
- Electric current only required to switch the magnet On/Off
- Continue holding loads in sudden power outage
- Remote control easy to use
- Mag/Demag the steel material in 0.1-2s
- Safety factor 3:1
What is Electro Permanent Lifting Magnet
HVR MAG Electro Permanent Lifting Magnet, made by electro-permanent magnet, which is the newest cutting-edge technology in magnetic handling industry, composed of two distinct magnet, a magnetically hard material, Nd-Fe-B, and a semi-hard material, Alnico.
Only need electronic current in Mag and Demag to lift heavy ferrous steel like plates, sheets, round bars, slabs, pipes and profiles, moving above loads without power consumption, totally safety and saving 95% energy compare with traditional electro magnet.

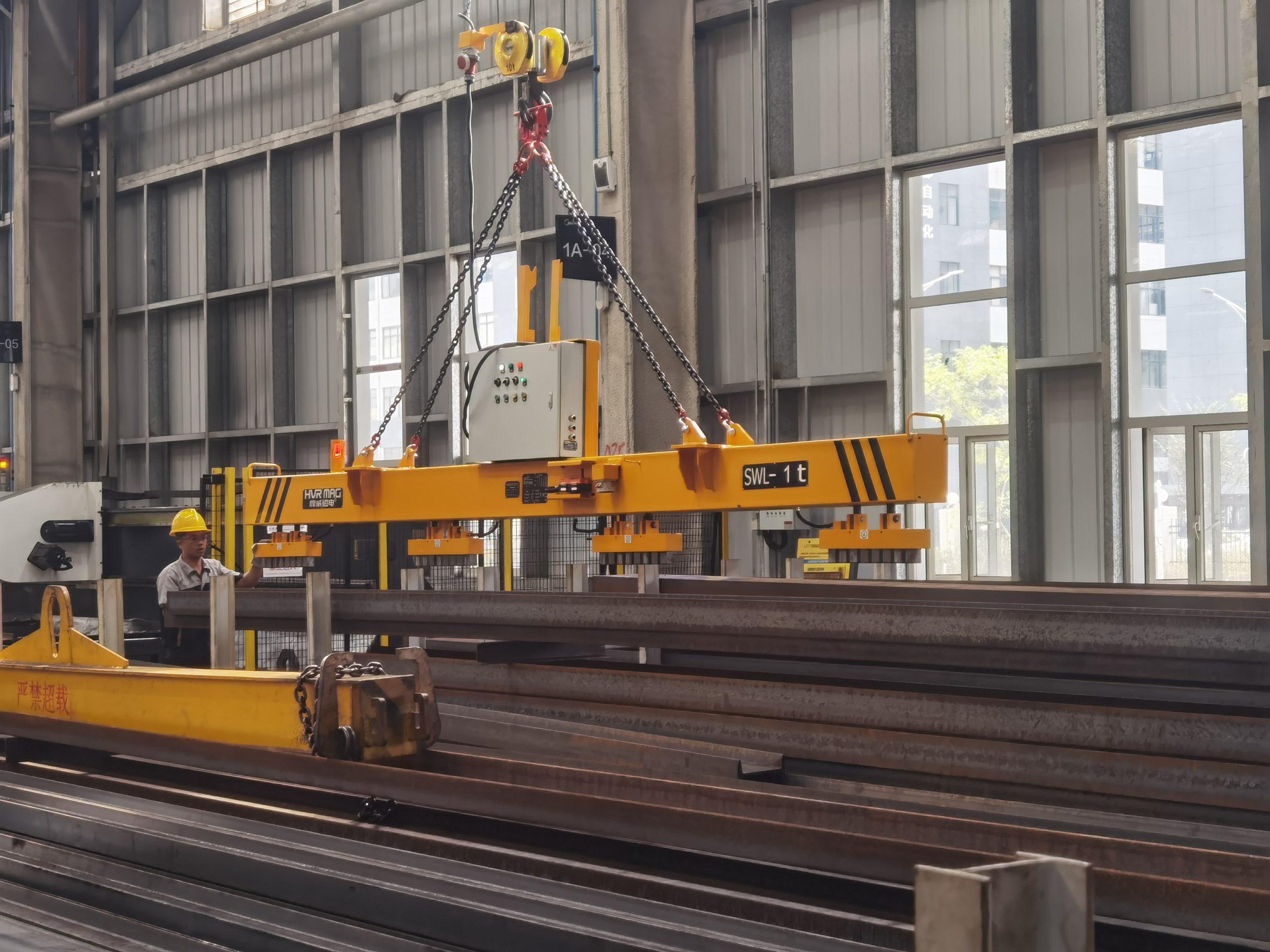

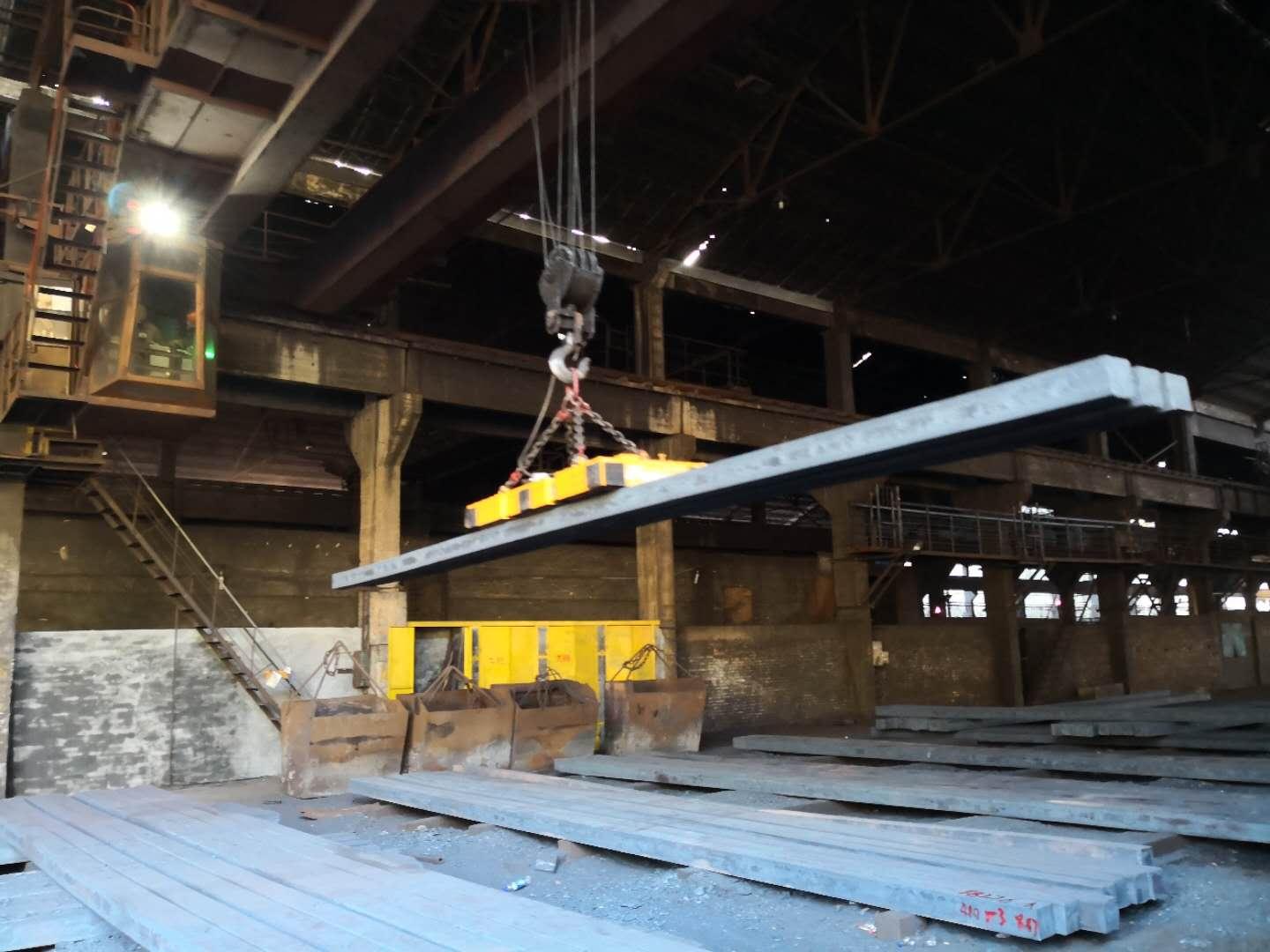

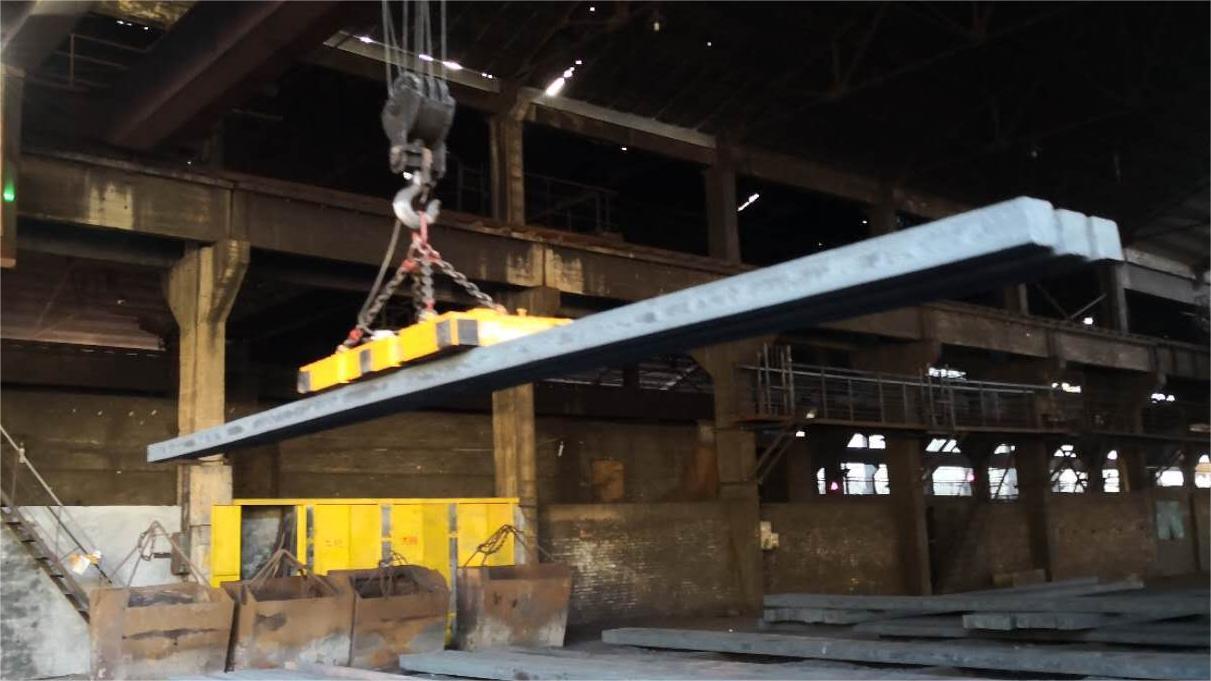

Electro Permanent Lifting Magnet By Material

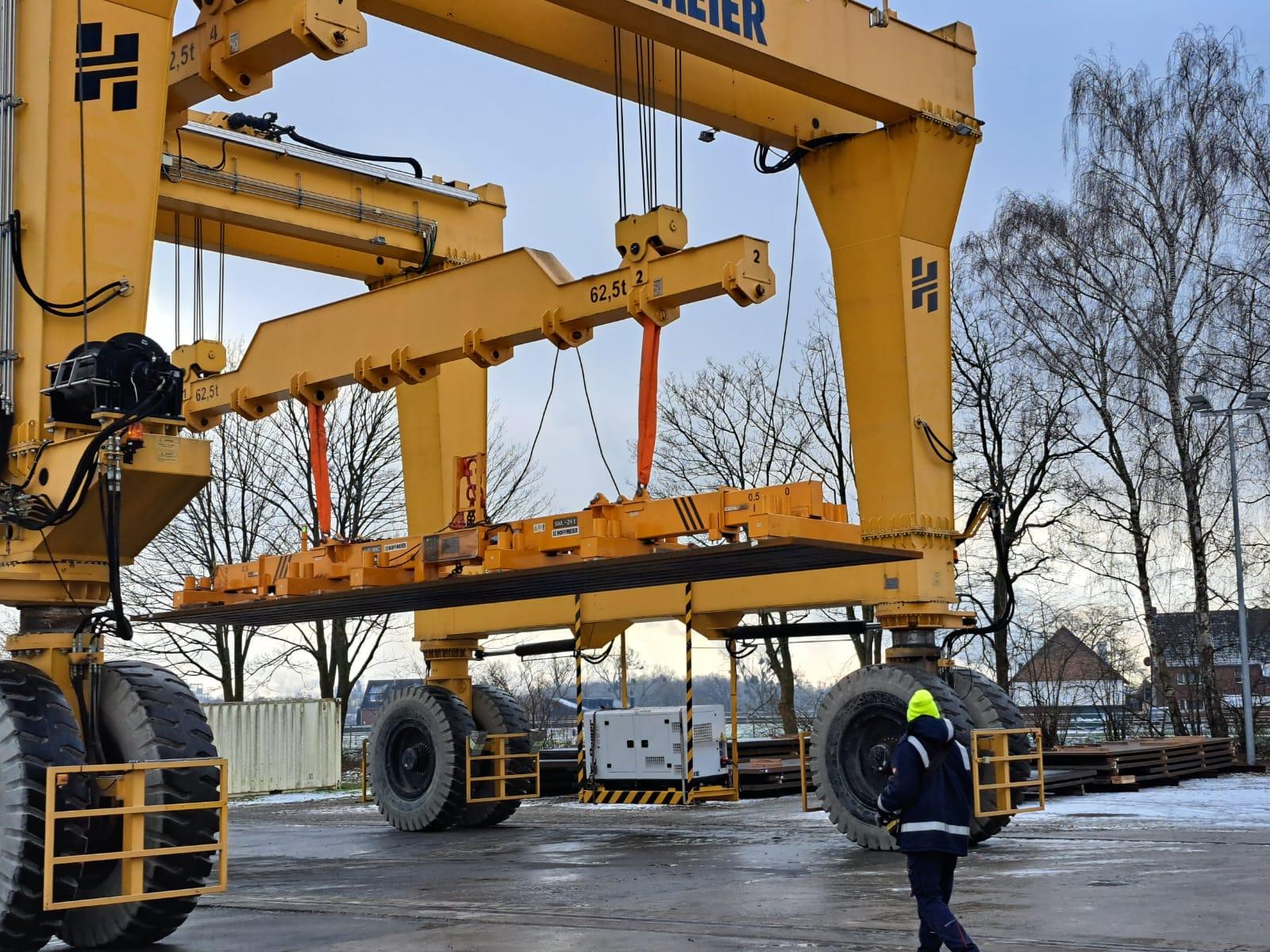

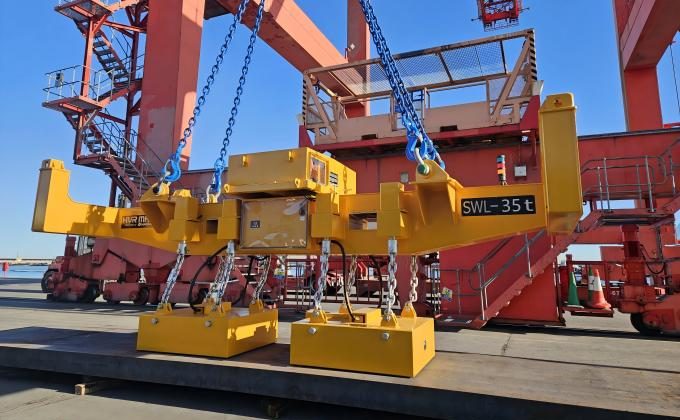

HVR MAG Electro Permanent Lifting Magnet supports to handle different ferrous loads and widely used in steel production, port, offshore, metallurgy and steel structural industry.
Electro Permanent Lifting Magnet Pluspoints
HVR MAG Electro Permanent Lifting Magnet aims to provide high standard magnetic steel lifting equipment to you!
Welded with chains and lifting rings
Abnormal situation reported immediately by an error code
Adjustable magnetic force to lifting single steel plate
Prevents accidental demagnetizing in the air
Digital push buttons and radio remote control
Minimum Safety Factor of 3: 1, measured at an air gap of 0.4 mm
2 buttons (SAFE + DEMAG) must be pressed consecutively on the remote control
Electro Permanent Lifting Magnet perfect adaptation to the steel material
HVR MAG Electro Permanent Lifting Magnet Durability
Based on new magnetic flux structure design, HVR MAG Electro Permanent Lifting Magnet only need the mains operation in Mag and Demag, without the risk of heat accumulation.
Thus, there is no problem achieving long durability and high duty cycle and a longer operation cycle. In normal temperature use, HVR MAG Electro Permanent Lifting Magnet force decay less than 5% in 10 years.

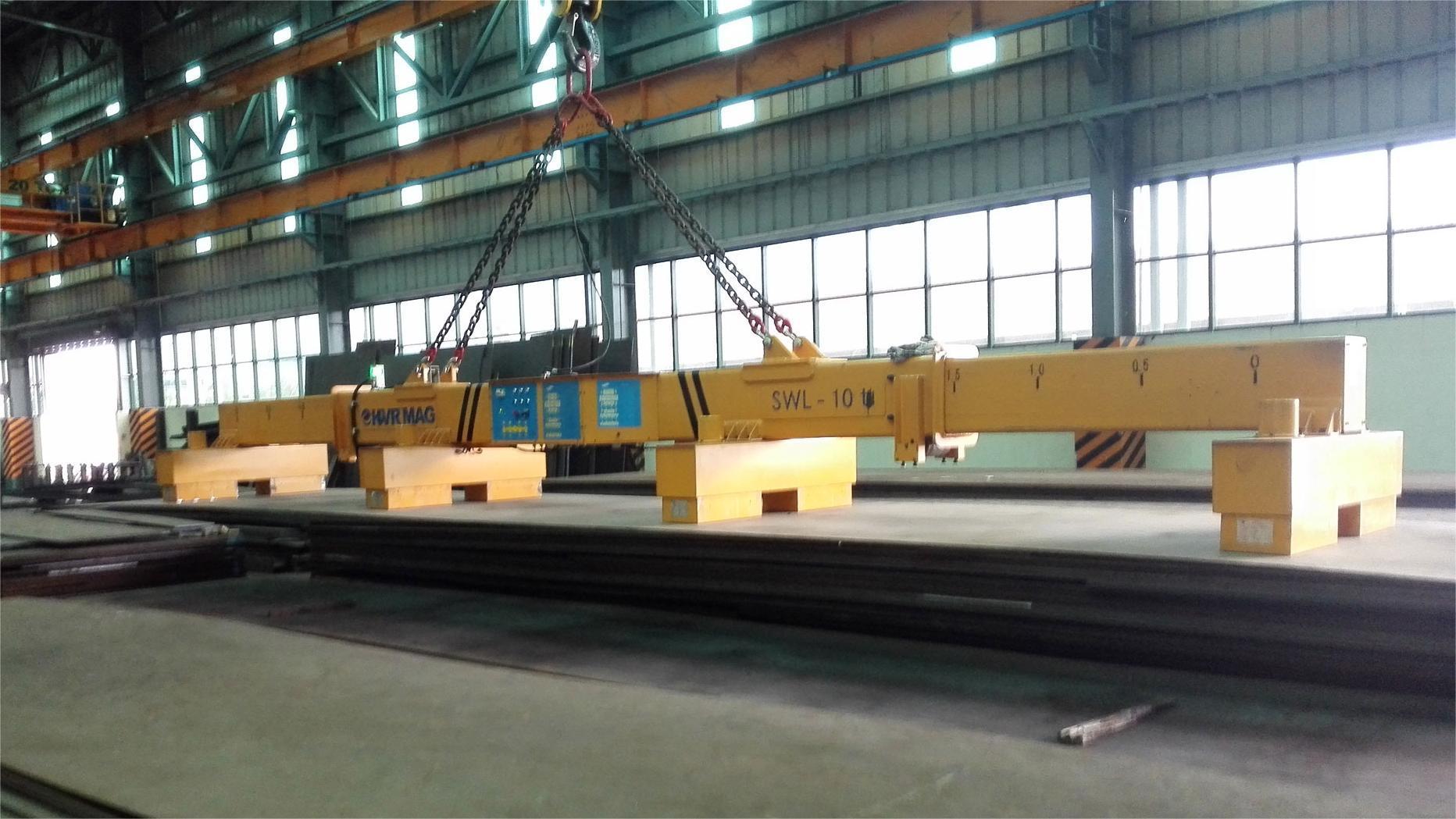

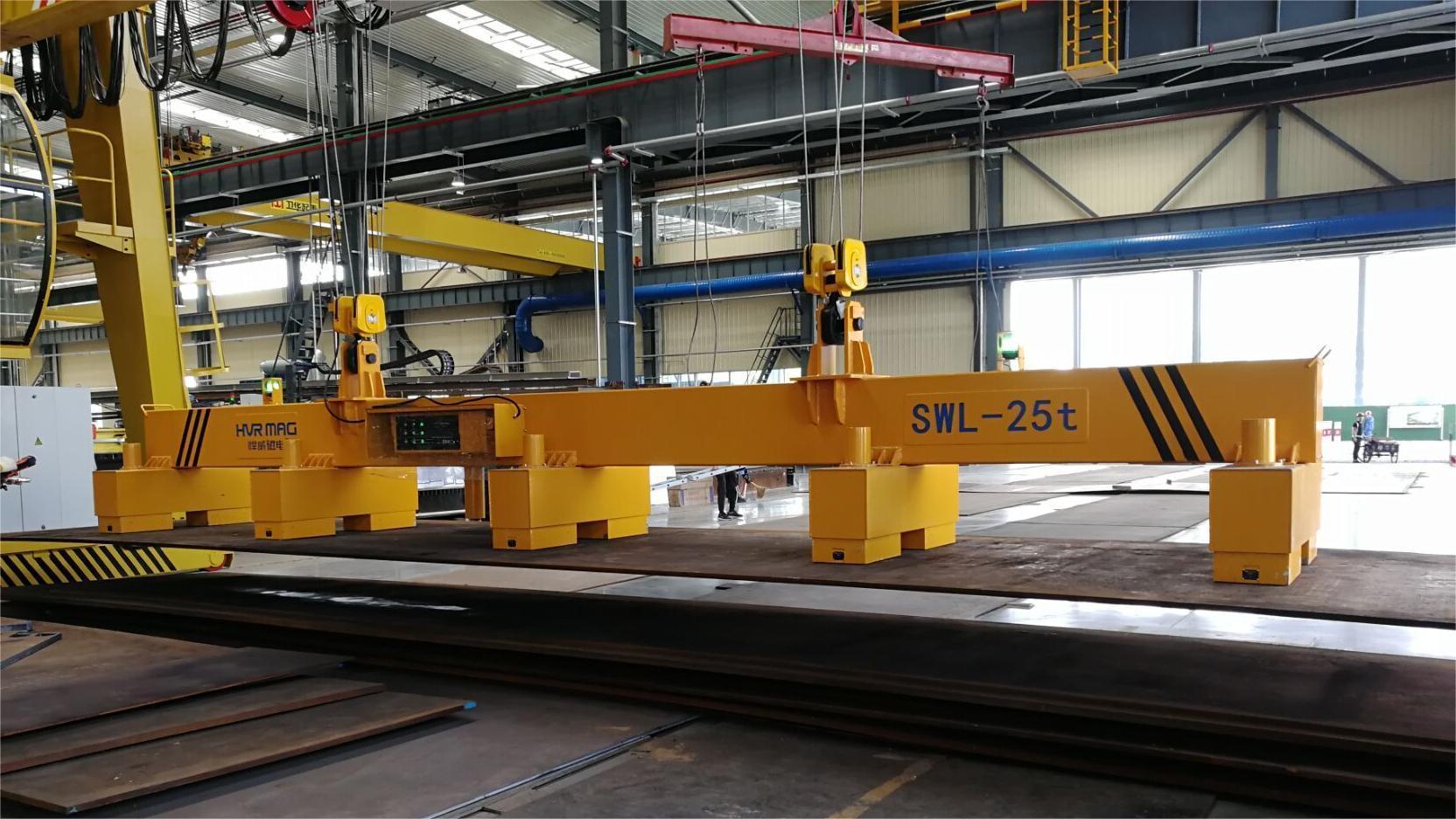

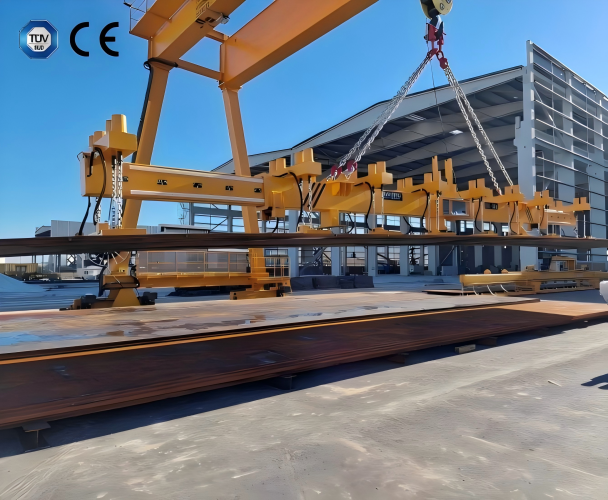

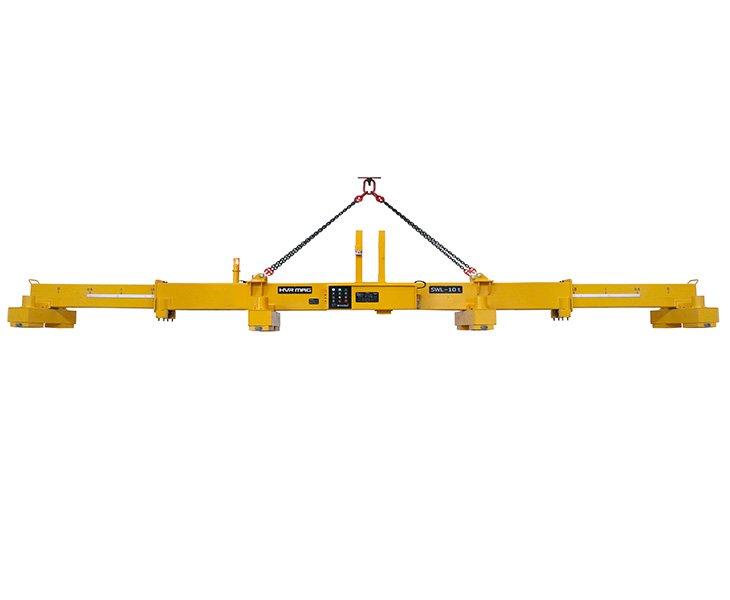

Standard HVR MAG Electro Permanent Lifting Magnet
HVR MAG standard.
As the leading Electro Permanent Lifting Magnet manufacturer in China, with 3 international patents and over 40 China patents, we provide top-tier magnetic industry solutions export 35% of output to serve the global clients.
HVR MAG Electro Permanent Lifting Magnet Application

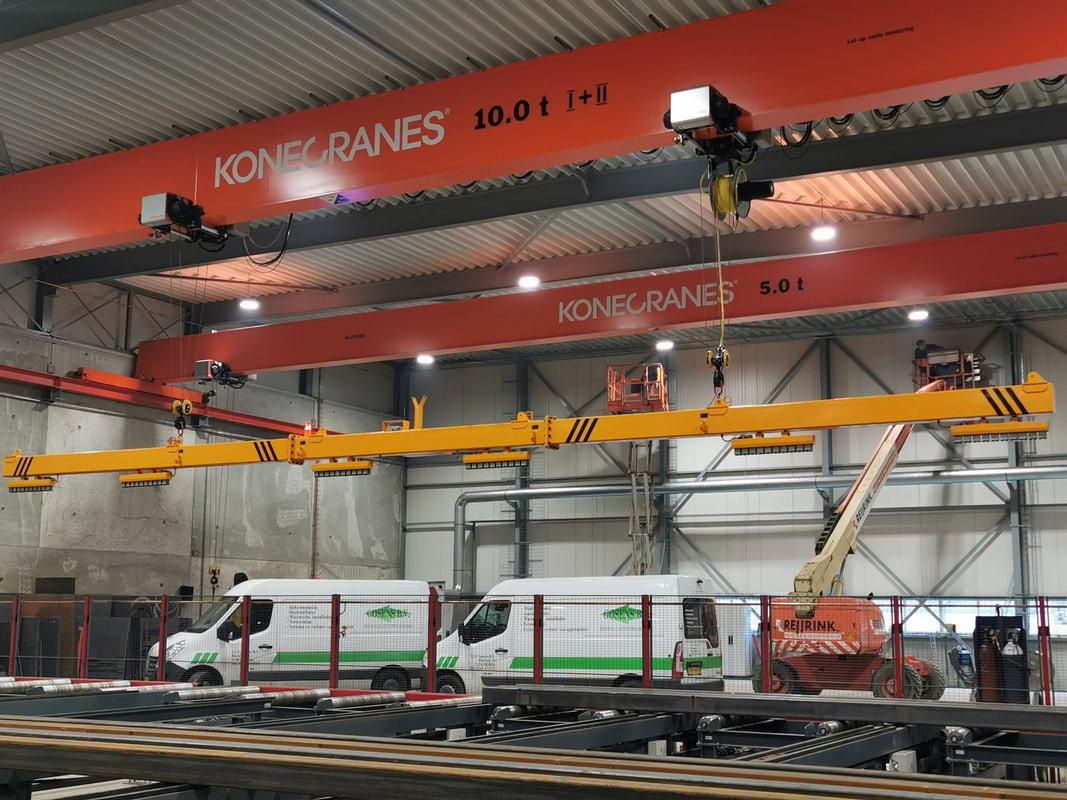

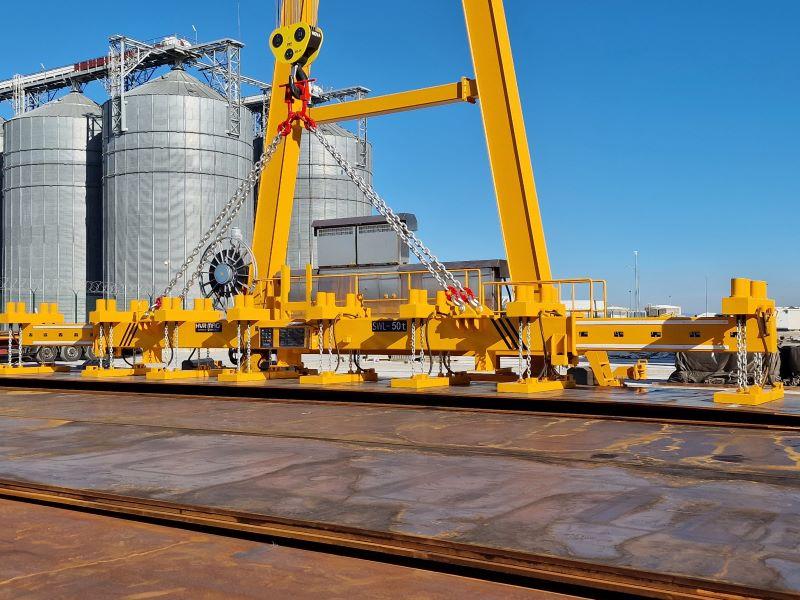

Electro Permanent Lifting Magnet are widely used in Steel Mills, Automotive, Offshore, Shipbuilding,Machinery& Equipment Manufacturing and Logistics industry.

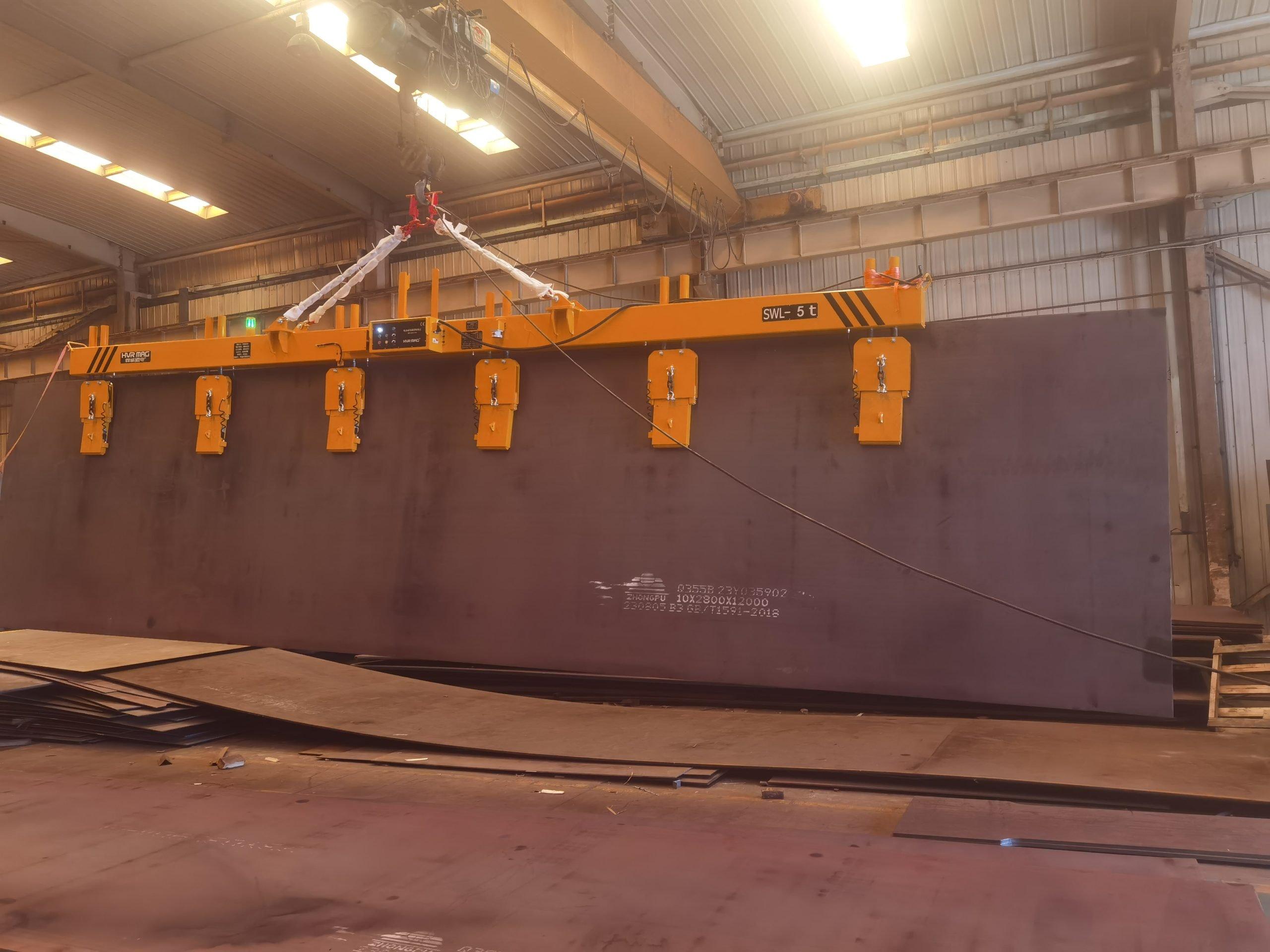

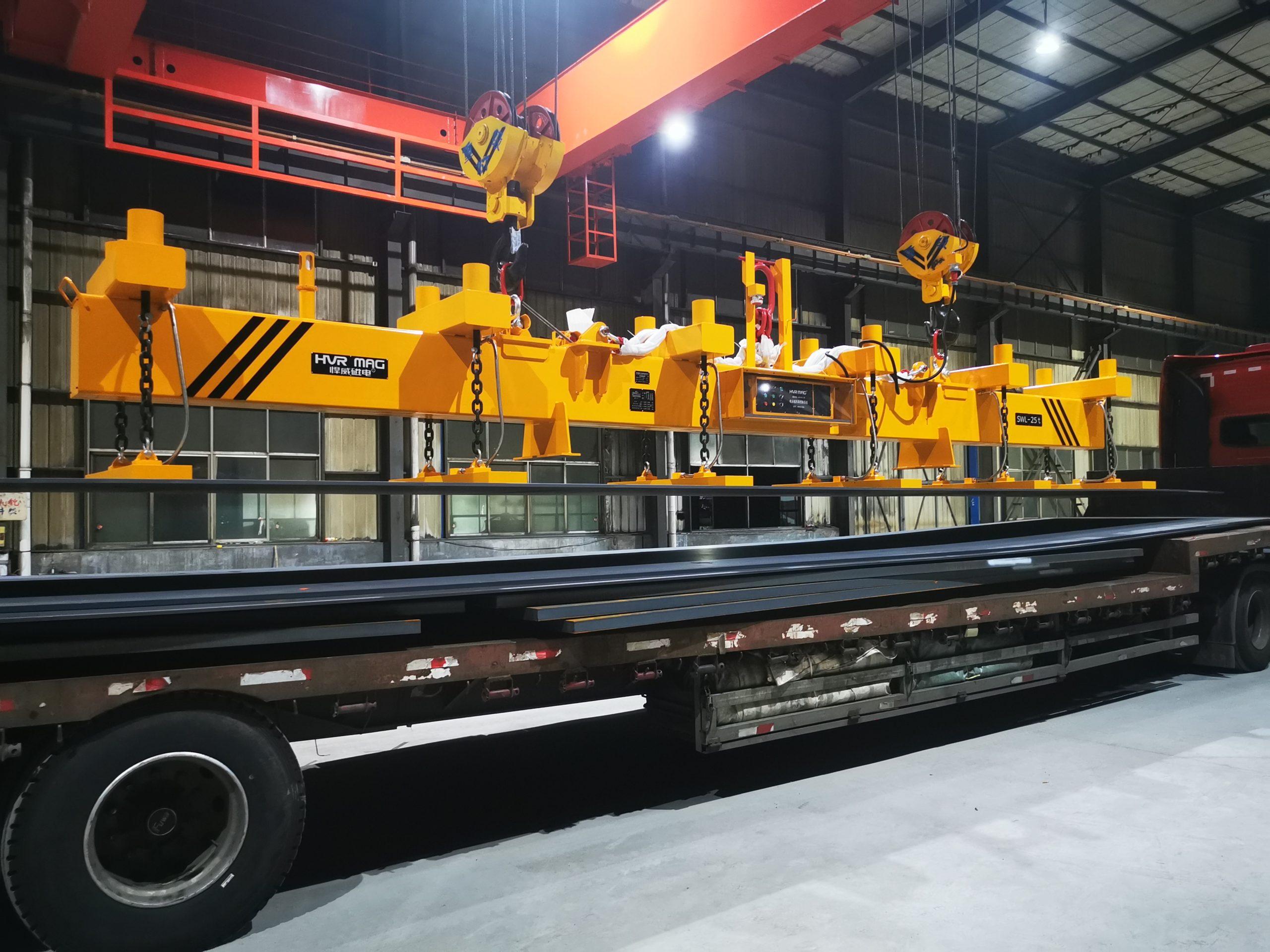

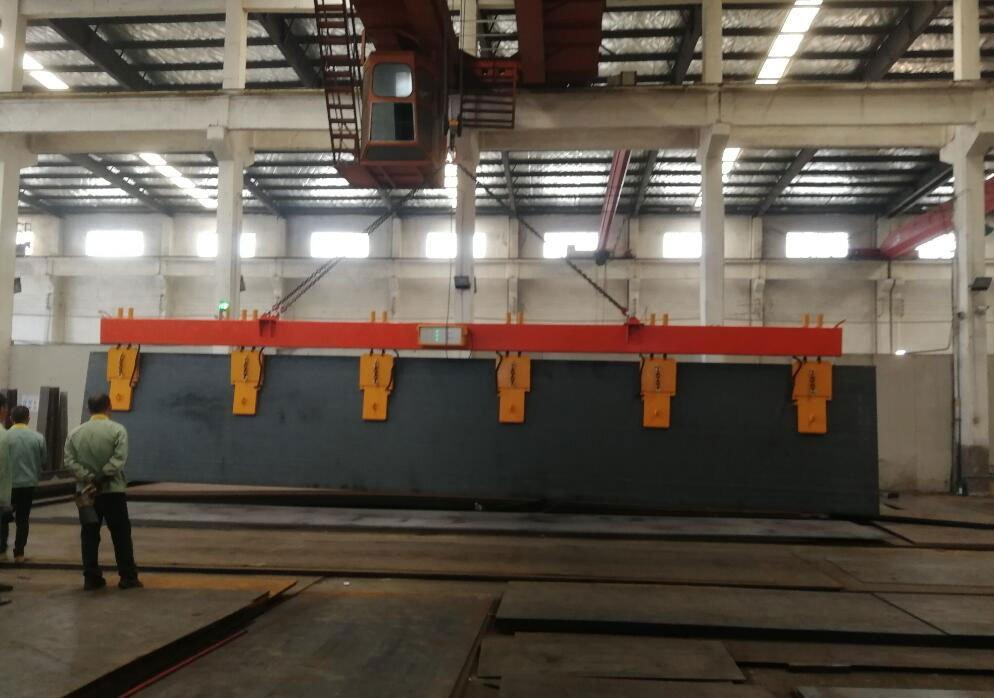

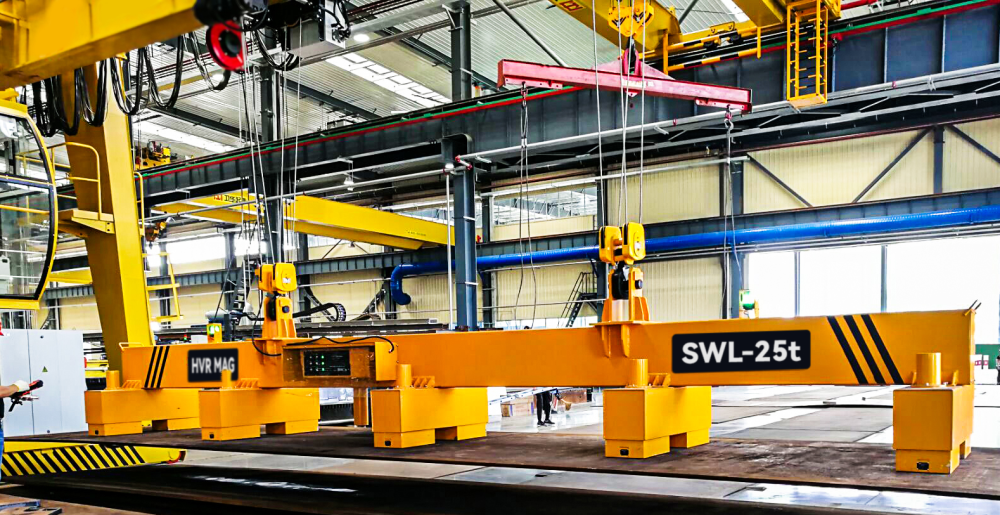

Electro Permanent Lifting Magnets, in Coal Mining Machinery Manufacturing Industry, offering high-efficiency material handling. Quickly and accurately lift single steel plates, reducing loading and unloading time. Moreover,do not cause any damage to the steel plates, ensuring the quality and integrity of the products.

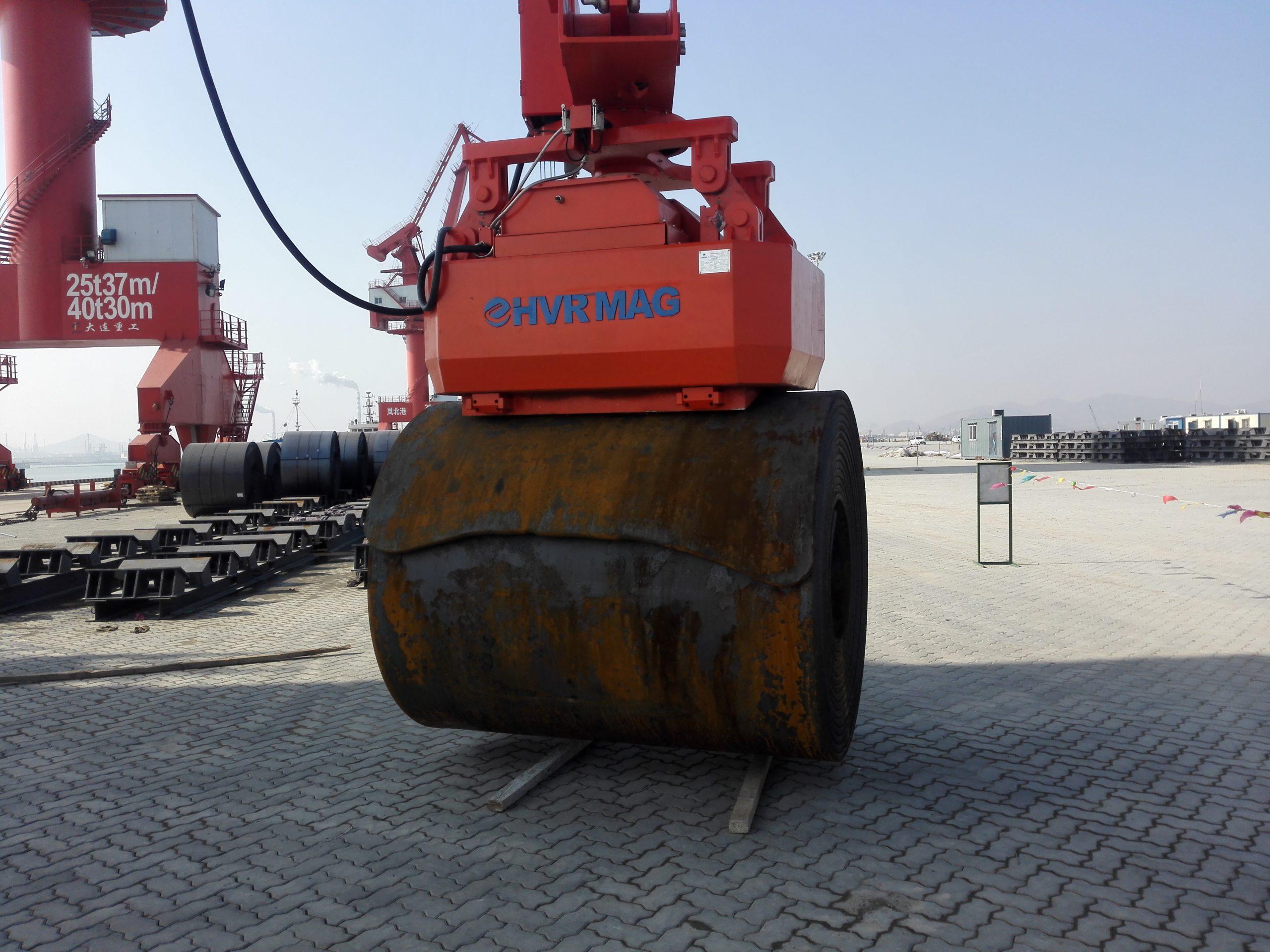

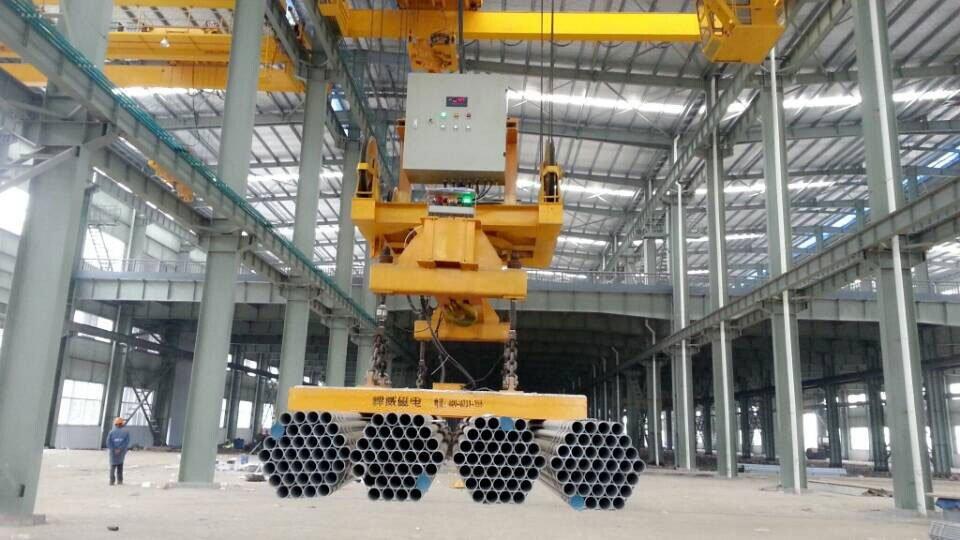

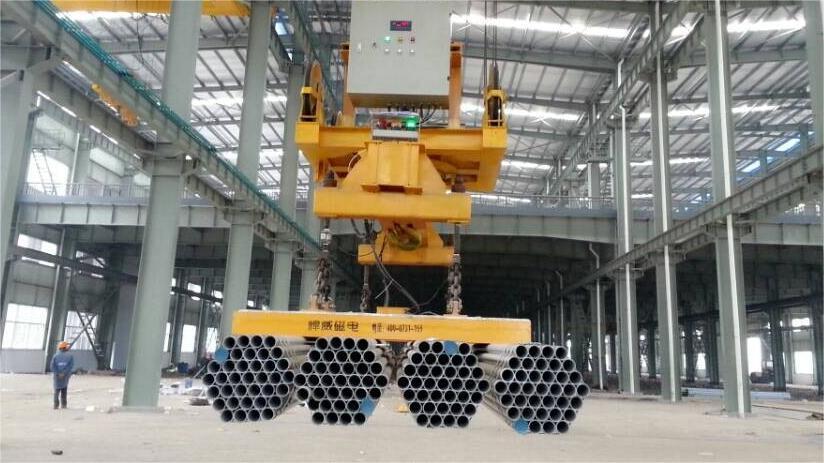

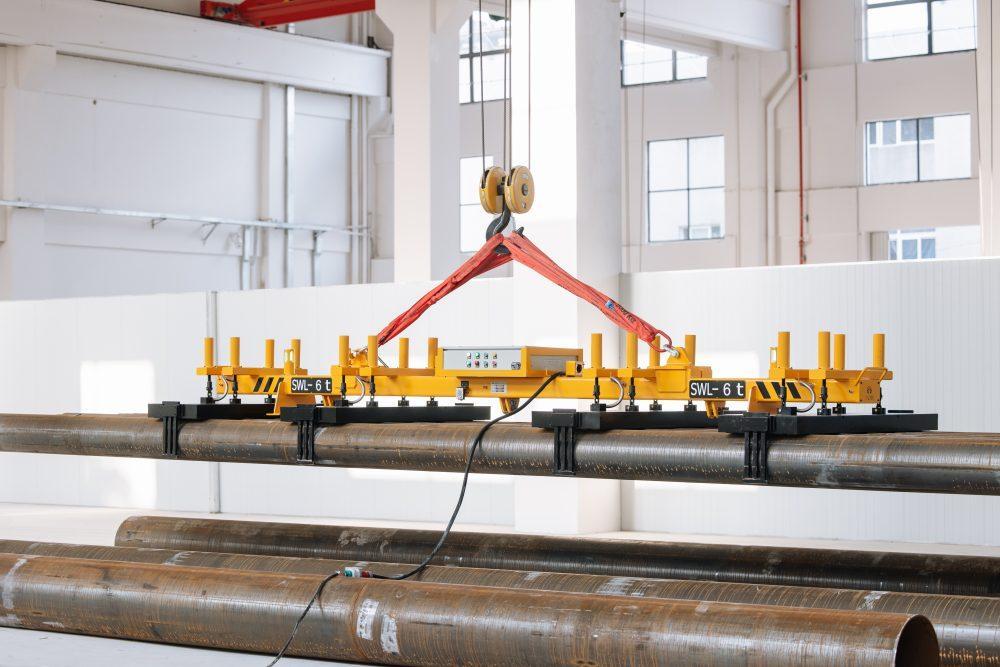

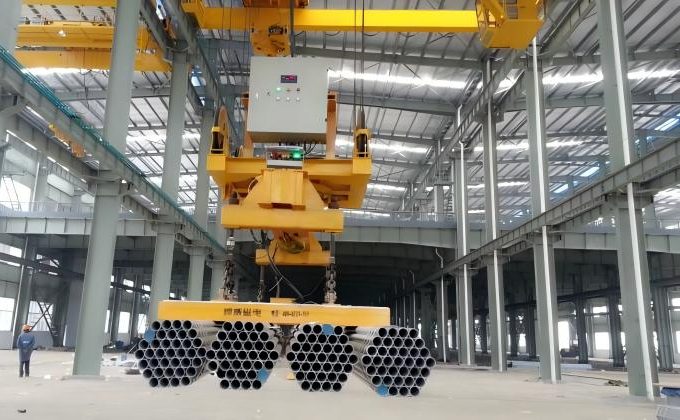

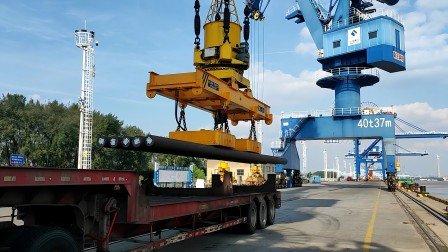

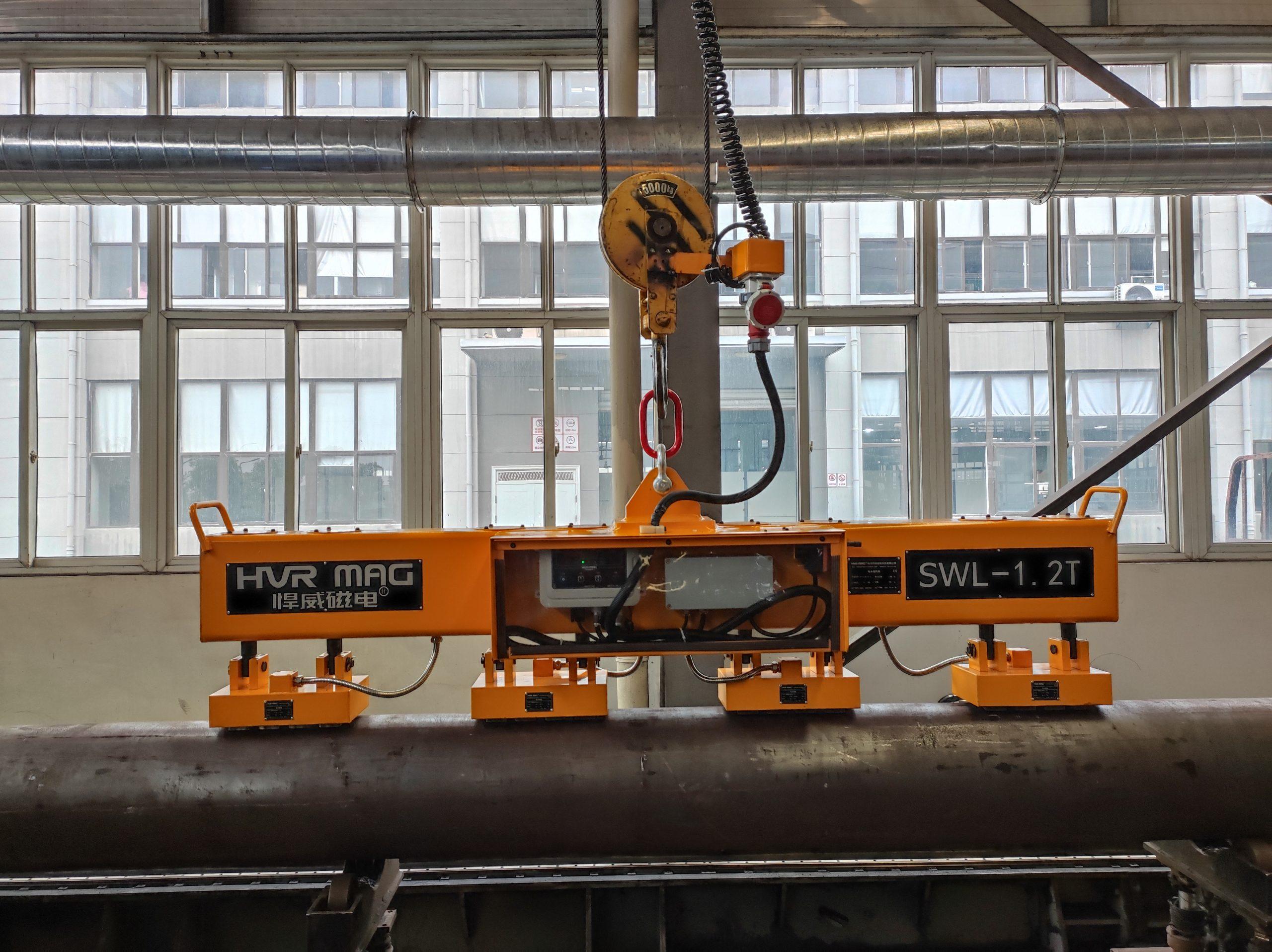

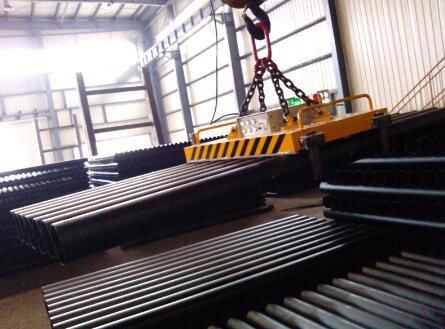

Electro Permanent Lifting Magnets, are useful in Gas, Oil, and Port projects. Suitable for lifting single, row or bundle of steel pipes without causing any damage to the surface of objects(such as paint, coating ). And able to to adapt to the wet,rainy,salty environment.
Know More about Electro Permanent Lifting Magnet
Current Economy: The electro permanent lifting magnet doesn’t require electricity during the moving process, electronic current only for short impulse, means minimal energy consumption and low operating costs, with power consumption at only about 5% of electro lifting magnet.
Maintenance Free: The magnetic force of electro permanent lifting magnet doesn’t decay with time extension after power failure. Without moving parts inside, doesn’t need additional maintenance for the magnet module, meas nearly zero maintenance cost.
Temperature: Standard working temperature of Electro Permanent Lifting Magnet is 80°C (176 °F), and specific Electro Permanent Lifting Magnet with high temperature resistance are suitable for material applications up to 650°C (1202°F).
Application: the material to be handled must have a low magnetic resistance, which means electro permanent lifting magnet is not the best option to lift such as scrap, rail coils. If you want to handle material like scrap, rail coils, please contact us for HVR MAG electro lifting magnet.
HVR MAG electro permanent lifting magnet are customized according to the customers working requirement and condition.
Please contact us through expert@hvrmagnet.com and tell us the specification of the material and requirement, then we will provide the suitable electro permanent lifting magnet solution.
In order to help our customers better us HVR MAG electro permanent lifting magnet, we have a global marketing team and a professional technical post-service team, we will reply to our customer question in 24 hours.
Yes, HVR MAG offer electro permanent lifting magnet to global clients directly or through our distributor. Currently we have partner in Europe, USA, Turkey, South America, Mexico and so on.
If you prefer a local purchase, please kindly contact us and let us know your location, we will transfer your inquiry to our partners.
Contact us for Electro Permanent Lifting Magnet Solution
You’ll receive exclusive access to new electro permanent lifting magnet releases, technical insights, and industry achievements.
Don’t miss out on this opportunity to stay informed and ahead of the curve in the world of electro permanent lifting magnet technology.
Compared with electromagnet, the electro permanent lifting magnet has improved too much whether it is from energy loss or lifting safety. Electro lifting magnet is the current through the coil to generate a magnetic field on the workpiece, power failure or coil heating influence the current is directly related to the safety of lifting.
The internal part of the electro permanent lifting magnet is composed of two permanent magnet materials. When the workpiece is absorbed, the two permanent magnet materials act on the workpiece at the same time, and the discharging state is that the magnetic fields of the two permanent magnet materials cancel each other. Only when charging and demagnetization, electric energy is used, and the lifting process is not used, and the permanent magnetic force will not decay with the extension of time.
The magnetic flux penetration of electro permanent lifting magnet can be adjusted according to the thickness of the suction and won’t stick to the second one.
Energy saving, environmental protection, safety and durability, simple operation, electro permanent lifting magnet is the first option in modern steel handling.
Our electric permanent lifting magnet controller with automatic demagnetization function, automatic demagnetization during demagnetization, medium and low carbon steel materials to zero remanence, for steel with carbon content higher than 0.45%, magnetic chuck demagnetization, the workpiece will be magnetized to cause magnetic surface. (As the carbon content increases, the remanence increases gradually.)
For workpiece that is not easily magnetized, we offer non-contact electro permanent lifting magnet to protect the workpiece surface if the surface quality request is higher. the principle of concrete, the magnet surface absorption region of poles are using soft rubber support, the adsorption after objects, there is a very small gap about 0.2 to 0.5 mm between magnet and workpiece, In this way, the magnet and the workpiece are lifted without immediate contact.
The magnetic force of electro permanent lifting magnet does not decay with time extension after power failure.Therefore, after safe lifting, the lifting material has been continuously adsorbed, so it will not fall even after 10 years of power failure.
We did a multistage insulation products processing, the controller output is instantaneous current, the product is only used electric at the moment of MAG/DEMAG, this is only a 0.6 to 2 second process, the rest of the time it is completely uncharged, and there is a leakage protection function for the controller, we will do the insulation of the strict test before delivery, ourelectro permanent lifting magnet, even work in the water for a long time, and there is no risk of leakage.
