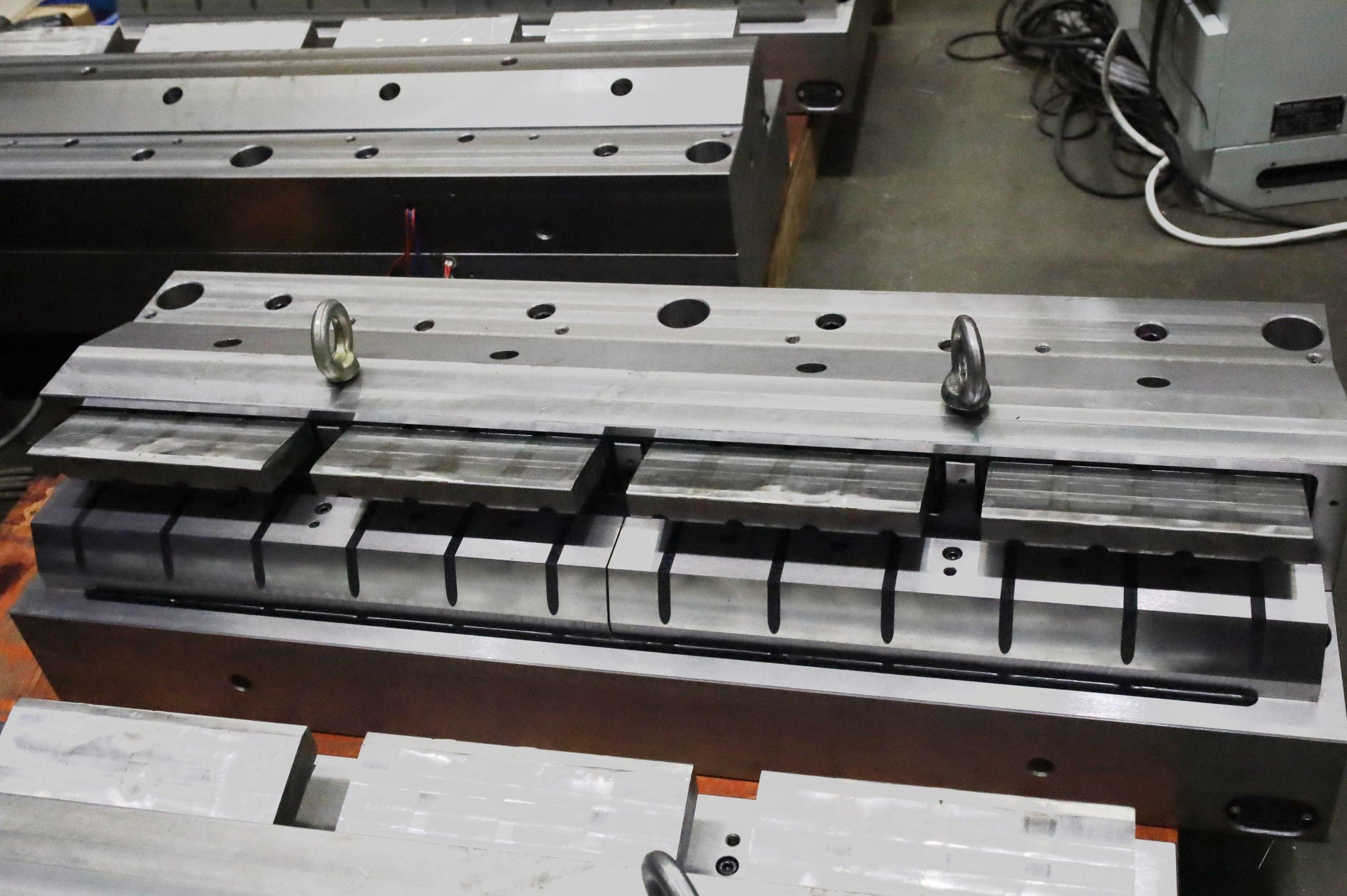

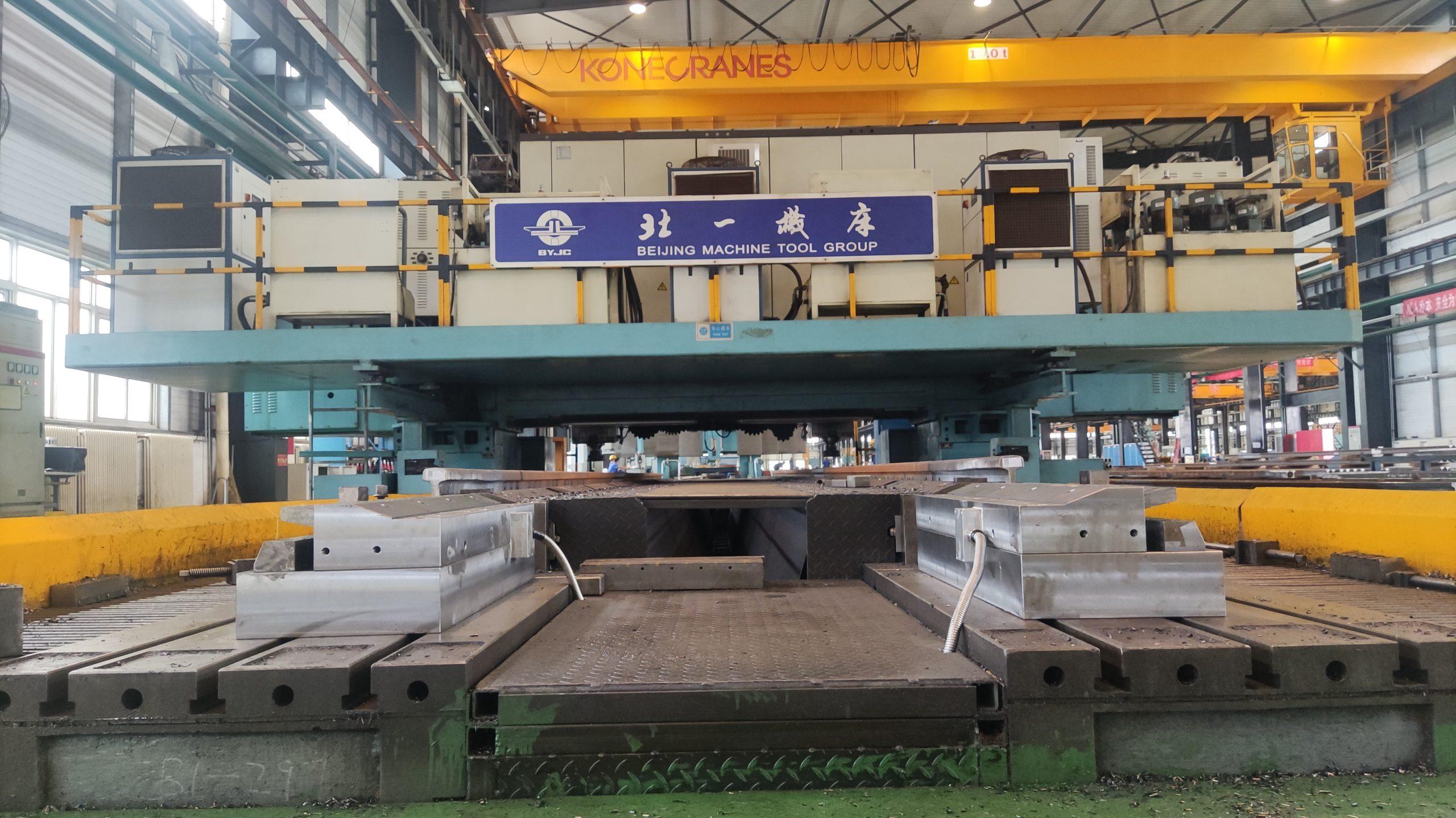

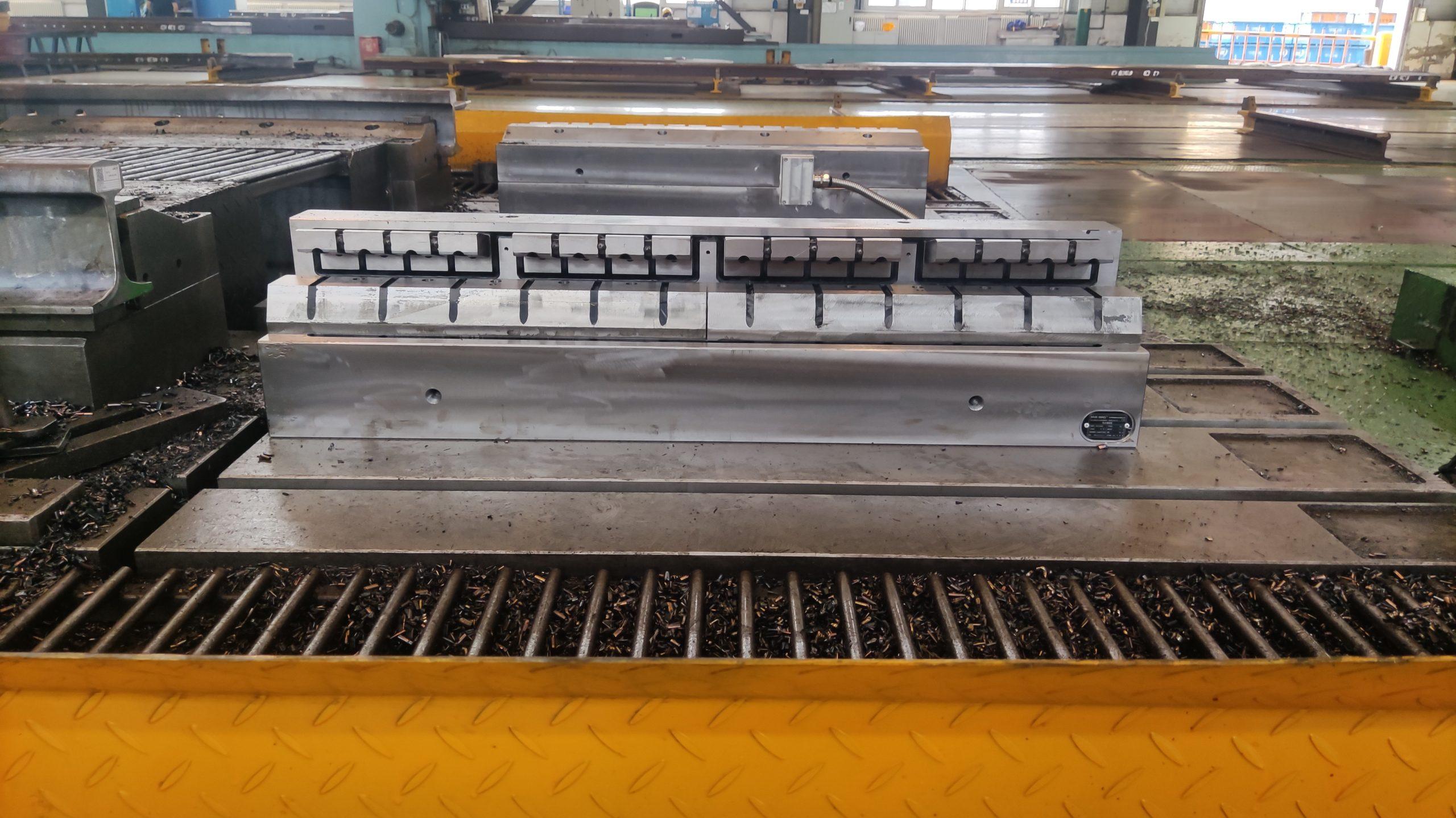

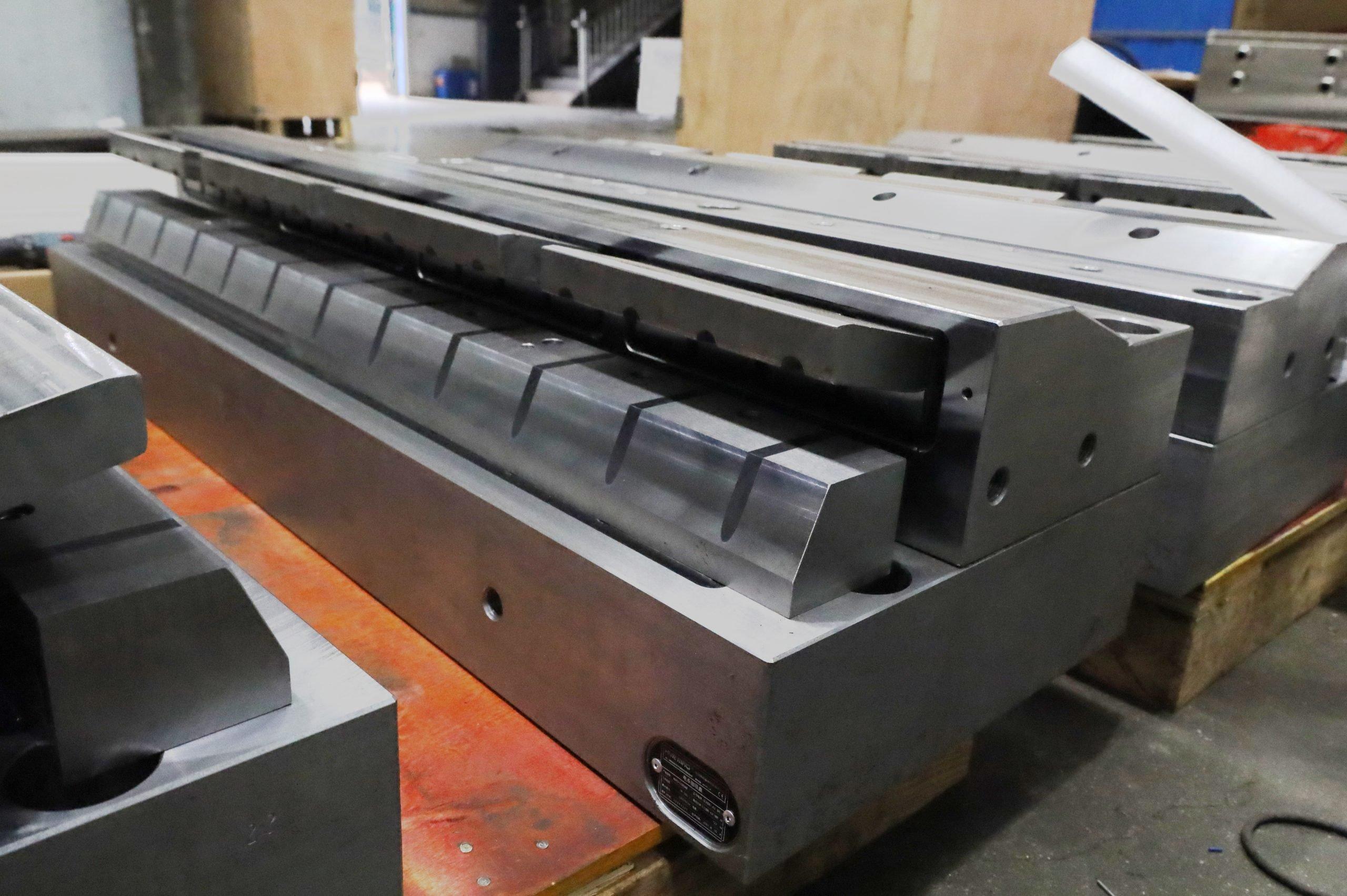

Electro Permanent Magnetic Chuck for Rail
A rail machining magnetic chuck is a device specifically designed for holding and positioning workpieces, commonly used in metalworking tasks within the railway vehicle maintenance and manufacturing industry.
Magnetic chucks utilize electro permanent magnetic principles to generate a powerful magnetic field, which is used to attract and secure metal workpieces, ensuring stability and precision during machining processes.
- Magnetic Pole Parameter
- Feature
- Specifiction
Pole size：50 ×50mm
Holding force: 12kgf/c㎡
Magnetic field depth：50mm
5 side machining
Modular, Rigid and Robust construction.
Movable T slots help to clamp the uneven work-piece.
Constant & uniform clamping and full support of work-piece
Maximum magnetic power Force up to 1600kg/100cm²;
Variable magnetic power possible.
Shortened clamping cycle and save clipping time.
Extra interlock contact equipped to make sure security
Design according to customer’s special request.
