Bending Workpiece Magnetic Gripper

In the bending process of metal workpieces, the Magnetic Gripper can stably fix the workpiece:

  • The strong magneticforce of the magnetic gripper can effectively prevent the workpiece from deviating during bending.
  • Continuous processing adaptability,improving production efficiency.
Get a Quick Quote

Magnetic Modules for Bending

Bending Workpiece Magnetic Gripper reduced clamping time. Rapid clamping shortens each bending processing cycle, allowing for the processing of more workpieces per unit time, significantly improving production efficiency.

  • Prevent workpiece displacement.
  • Improvingbending efficiency significantly.
  • Reduce the risk of manual operation.
  • Suitable for various sizesof workpieces.
  • Magnets do not change their magnetic state when power failure.
  • Control unit could be integrated to the PLC system of robot.
Request For Our Latest Price
  • For Thick plates
  • For Thin Plates
  • For Pipes&round bars
  • Round shape
ModelRated lifting force（thickness＞16mm)Applicable thicknessLWH
HEPMP-1510P50160kg≥6mm150mm100mm72mm
HEPMP-320P50320kg≥6mm180mm180mm72mm
HEPMP-500P50500kg≥6mm250mm180mm72mm
HEPMP-640P50640KG≥6mm320mm180mm72mm
HEPMP-720P50720kg≥6mm250mm250mm72mm
HEPMP-2012P70320kg≥8mm190mm110mm72mm
HEPMP-2020P70640kg≥8mm200mm200mm72mm
ModelRated lifting force（thickness＞10mm)Applicable thicknessLWH
HEPMP-30P30B30kg2-12mm100mm54mm58mm
HEPMP-60P30B60kg2-12mm100mm100mm58mm
HEPMP-100P30B100kg2-12mm140mm100mm58mm
HEPMP-200P30B200kg2-12mm260mm100mm58mm
HEPMP-300P30300KG2-12mm260mm110mm58mm
HEPMP-60P3060kg3-12mm110mm60mm58mm
HEPMP-1406P3090kg3-12mm140mm60mm58mm
HEPMP-1817P30300kg3-12mm180mm170mm58mm
HEPMP-1906P30120kg2-12mm190mm60mm58mm
HEPMP-120P30120KG2-12mm190mm60mm60mm
HEPMP-90P3090KG2-12mm150mm60mm60mm
ModelRated lifting force（thickness＞12mm)Applicable thicknessLWH
HEPMSP-60P45×2460kg≥3mm145mm90mm81mm
HEPMSP-100P45×24100kg≥3mm200mm120mm81mm
HEPMP-2811S120KG≥3mm280mm110mm80mm
HEPMSP-200P45×24200kg≥3mm370mm105mm81mm
HEPMSP-300P45×24300kg≥3mm435mm105mm81mm
ModelRated lifting forceApplicable thicknessDiameterHWeight
HEPM1-253KG≥2mm25mm35mm120g
HEPM1-4020KG≥2mm40mm48mm420g
HEPM1-5030KG≥10mm49mm45mm650g
HEPM1-6050KG≥10mm60mm50mm1kg
HEPM1-7590KG≥12mm78mm48mm1.5kg
HEPM1-100150KG≥14mm100mm55mm3.5kg

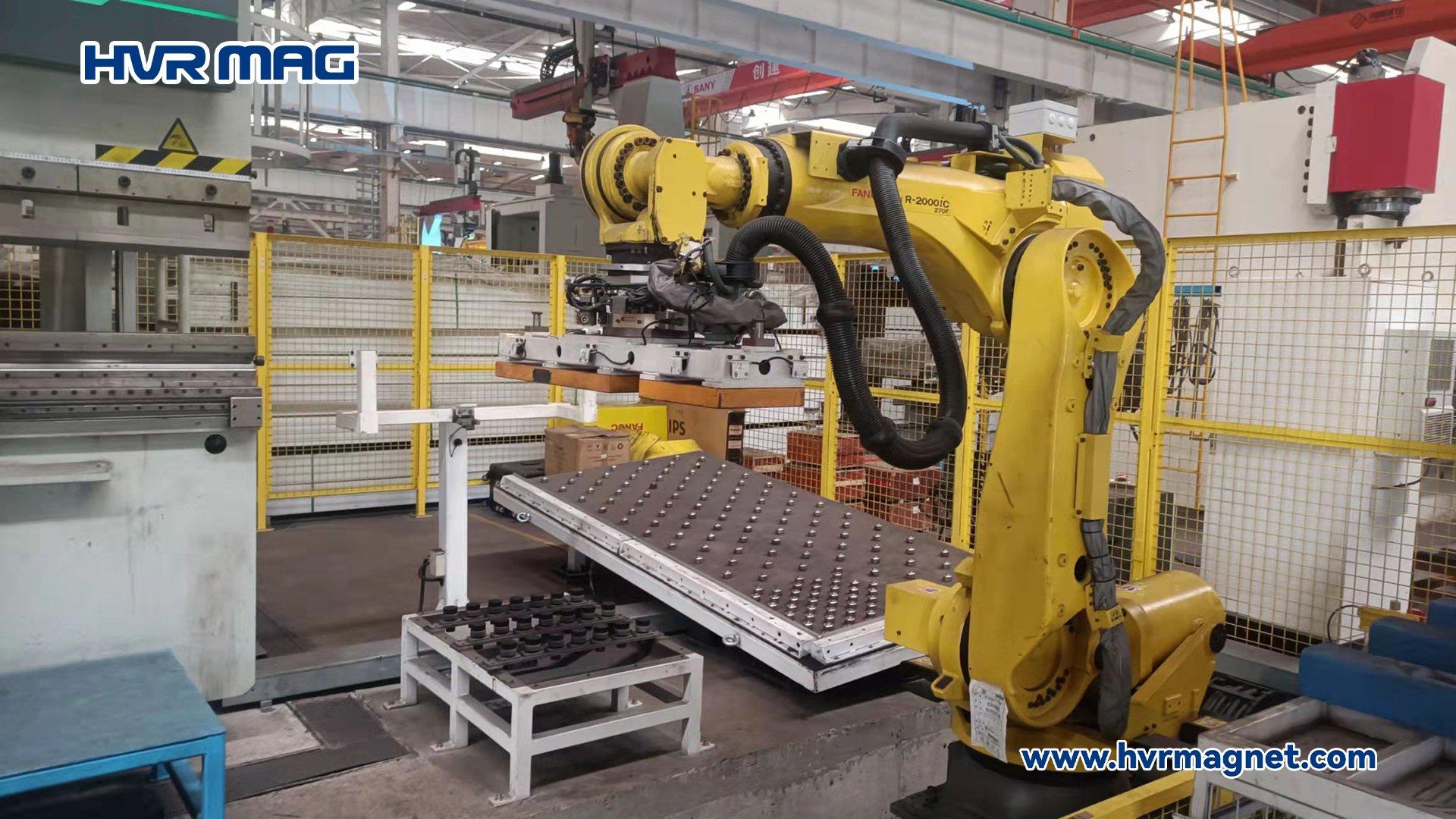

Bending Application

For bending application with complex shapes, such as the manufacturing of automotive parts or industrial equipment casings, precise starting positions are key to ensuring that the final product meets design specifications. The magnetic gripper aligns the edge of the sheet with the reference of the bending mold through its stable magnetic force, and the error can be controlled within a very small range, ensuring that each bending operation starts from the correct position.

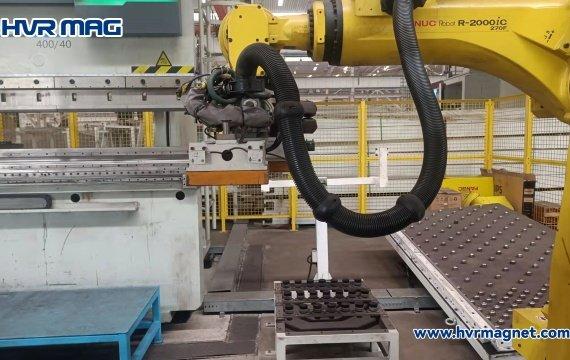

Bending Application

Magnetic grippers can tightly adhere to the plates metal, ensuring its position is fixed throughout the entire bending process, thereby ensuring the dimensional and shape accuracy of the bent workpiece.

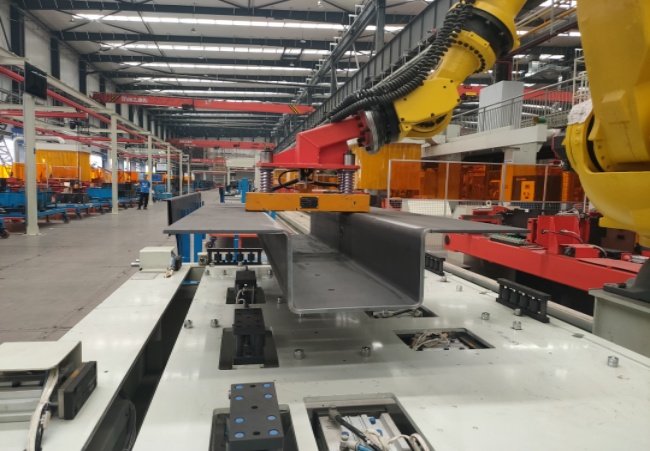

Bending Application

Compared with traditional mechanical fixtures, magnetic grippers have a faster clamping speed. This characteristic is particularly important in the bending process. For batch production bending processing, rapid clamping can significantly shorten each processing cycle, thereby improving overall production efficiency.

Your Site Related Products

One stop customized magnetic gripper manufacturer in China

  • We will provide customized solutions
  • Complete qualification certification, exported to all over the world
  • Quick response, both pre-sales and after-sales services are guaranteed
Certifications

Our products have CE certification from the European Union, product standard implementation certificate, and product patent certificate.

Is there an agent available?

Yes, we have agents in Europe, South America, Türkiye, the United States and other regions.

What is the service life of your electro permanent magnets?

Under normal use, as long as the temperature does not exceed the allowable range, the magnetic field of the electro permanent magnet will decay by no more than 5% within 10 years.

What are the raw materials used for electro permanent magnets?

Composed of neodymium iron boron, aluminum nickel cobalt, coils, magnetic poles, and other components. The most important thing is our technology.
