End-of-Arm Tool for Pick and Place in Automation Line
End-of-Arm Tool provides diverse and efficient solutions for the pick and place application, driving the automation and intelligence development of modern manufacturing.
- End-of-Arm Tool can handle a variety of material sizes and shapes.
- Improvingproduction efficiency significantly.
- Special magnetic pole is available for taking care any kinds of steel load.
- Suitable for various types of workpieces (Plates,H-beam blanks, angle iron,square tubes, pipes etc.)
- Magnets do not change their magnetic state when power failure.
- Control unit could be integrated to the PLC system of robot.
- For Thick plates
- For Thin Plates
- For Pipes&round bars
- Round shape magnent
| Model | Rated lifting force（thickness＞16mm) | Applicable thickness | L | W | H |
| HEPMP-1510P50 | 160kg | ≥6mm | 150mm | 100mm | 72mm |
| HEPMP-320P50 | 320kg | ≥6mm | 180mm | 180mm | 72mm |
| HEPMP-500P50 | 500kg | ≥6mm | 250mm | 180mm | 72mm |
| HEPMP-640P50 | 640KG | ≥6mm | 320mm | 180mm | 72mm |
| HEPMP-720P50 | 720kg | ≥6mm | 250mm | 250mm | 72mm |
| HEPMP-2012P70 | 320kg | ≥8mm | 190mm | 110mm | 72mm |
| HEPMP-2020P70 | 640kg | ≥8mm | 200mm | 200mm | 72mm |
| Model | Rated lifting force（thickness＞10mm) | Applicable thickness | L | W | H |
| HEPMP-30P30B | 30kg | 2-12mm | 100mm | 54mm | 58mm |
| HEPMP-60P30B | 60kg | 2-12mm | 100mm | 100mm | 58mm |
| HEPMP-100P30B | 100kg | 2-12mm | 140mm | 100mm | 58mm |
| HEPMP-200P30B | 200kg | 2-12mm | 260mm | 100mm | 58mm |
| HEPMP-300P30 | 300KG | 2-12mm | 260mm | 110mm | 58mm |
| HEPMP-60P30 | 60kg | 3-12mm | 110mm | 60mm | 58mm |
| HEPMP-1406P30 | 90kg | 3-12mm | 140mm | 60mm | 58mm |
| HEPMP-1817P30 | 300kg | 3-12mm | 180mm | 170mm | 58mm |
| HEPMP-1906P30 | 120kg | 2-12mm | 190mm | 60mm | 58mm |
| HEPMP-120P30 | 120KG | 2-12mm | 190mm | 60mm | 60mm |
| HEPMP-90P30 | 90KG | 2-12mm | 150mm | 60mm | 60mm |
| Model | Rated lifting force（thickness＞12mm) | Applicable thickness | L | W | H |
| HEPMSP-60P45×24 | 60kg | ≥3mm | 145mm | 90mm | 81mm |
| HEPMSP-100P45×24 | 100kg | ≥3mm | 200mm | 120mm | 81mm |
| HEPMP-2811S | 120KG | ≥3mm | 280mm | 110mm | 80mm |
| HEPMSP-200P45×24 | 200kg | ≥3mm | 370mm | 105mm | 81mm |
| HEPMSP-300P45×24 | 300kg | ≥3mm | 435mm | 105mm | 81mm |
| Model | Rated lifting force | Applicable thickness | Diameter | H | Weight |
| HEPM1-25 | 3KG | ≥2mm | 25mm | 35mm | 120g |
| HEPM1-40 | 20KG | ≥2mm | 40mm | 48mm | 420g |
| HEPM1-50 | 30KG | ≥10mm | 49mm | 45mm | 650g |
| HEPM1-60 | 50KG | ≥10mm | 60mm | 50mm | 1kg |
| HEPM1-75 | 90KG | ≥12mm | 78mm | 48mm | 1.5kg |
| HEPM1-100 | 150KG | ≥14mm | 100mm | 55mm | 3.5kg |

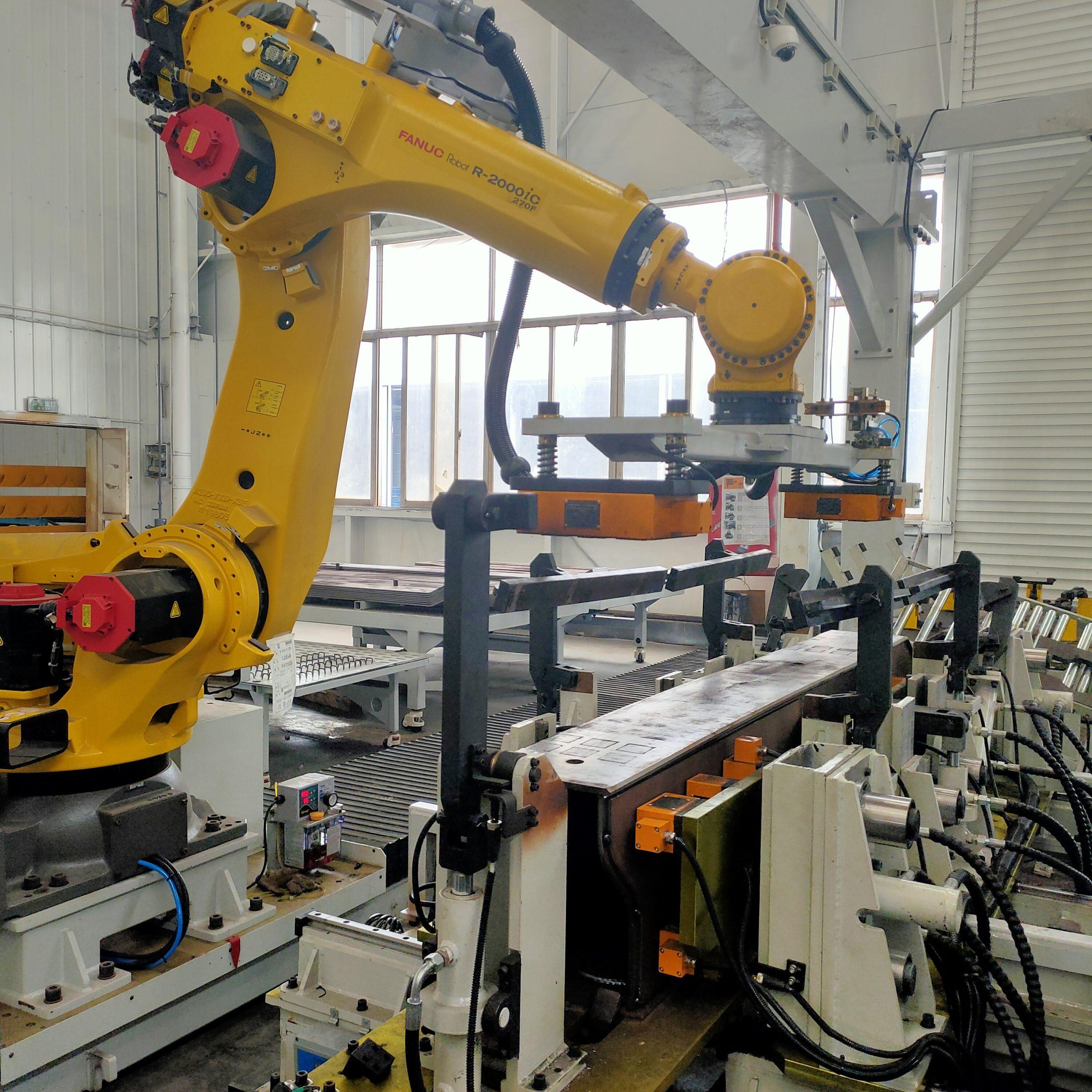

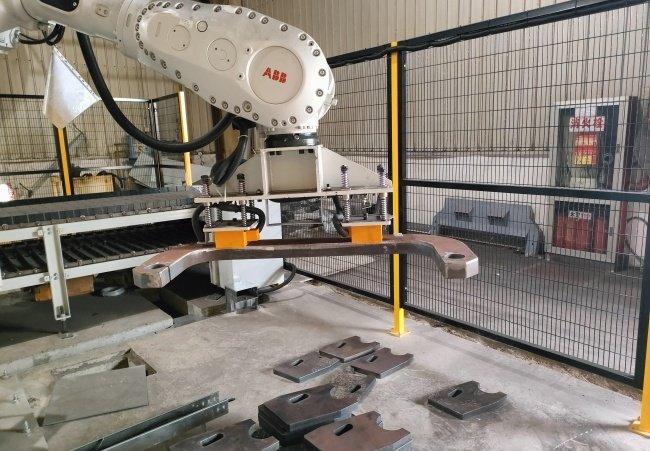

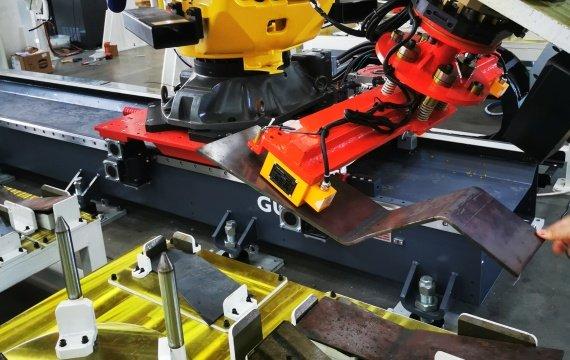

Pick and Place for Steel Plates
End-of-Arm Tool ensures a strong hold on steel plates, allowing for quick and reliable in steel plates pick and place applications.
This innovative solution not only boosts productivity but also enhances workplace safety, making it an ideal choice for industries that require efficient steel handling.

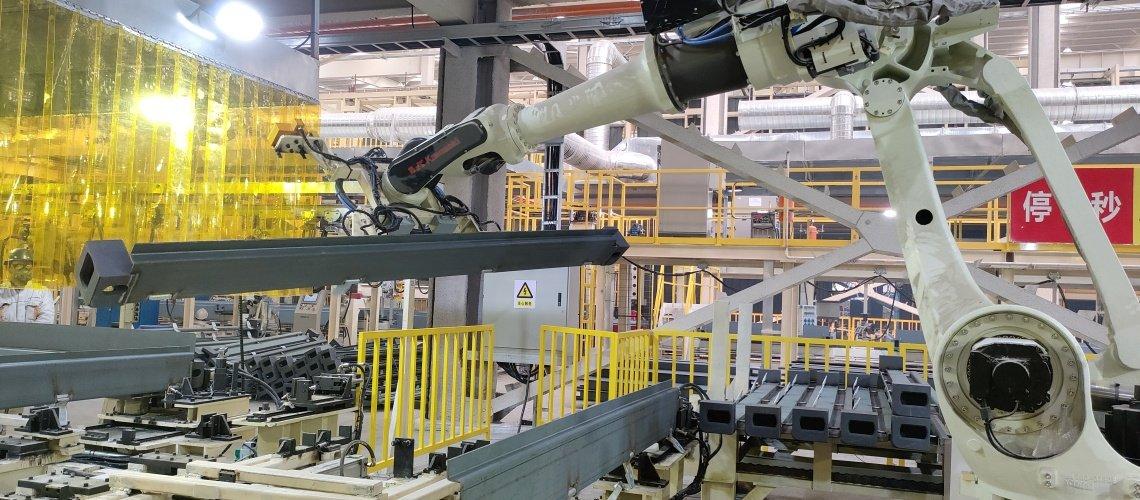

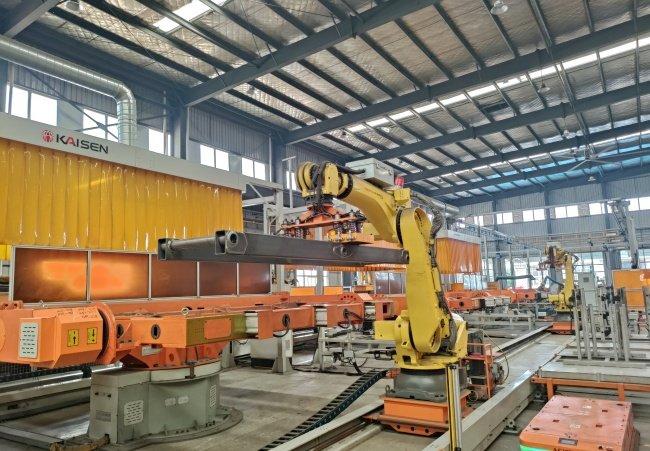

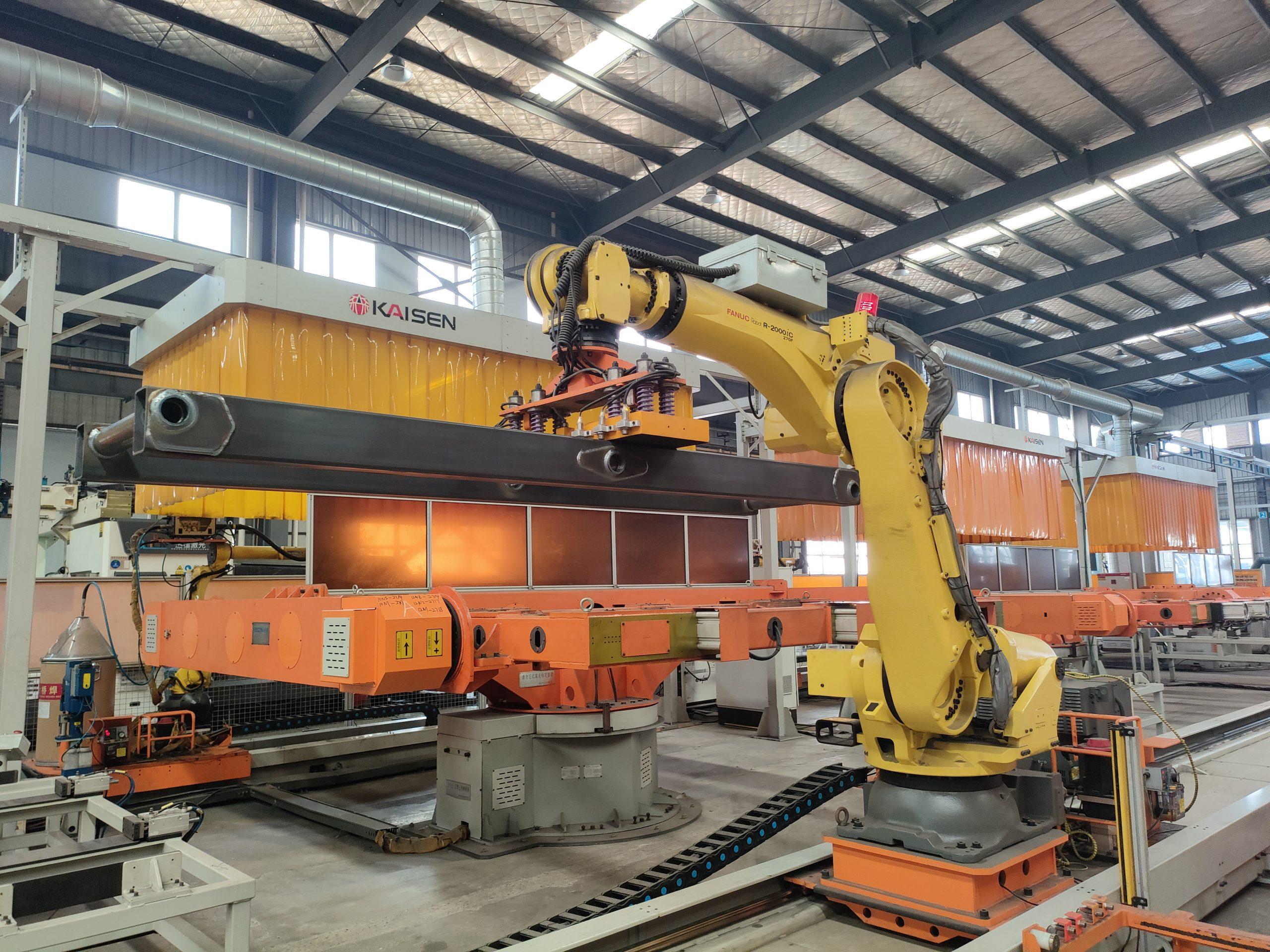

Pick and Place for Profile
The automated picking and placing system can quickly complete the handling of items, greatly improving production efficiency and reducing manual intervention.
Adapt to different types of profiles and meet diverse operational requirements.

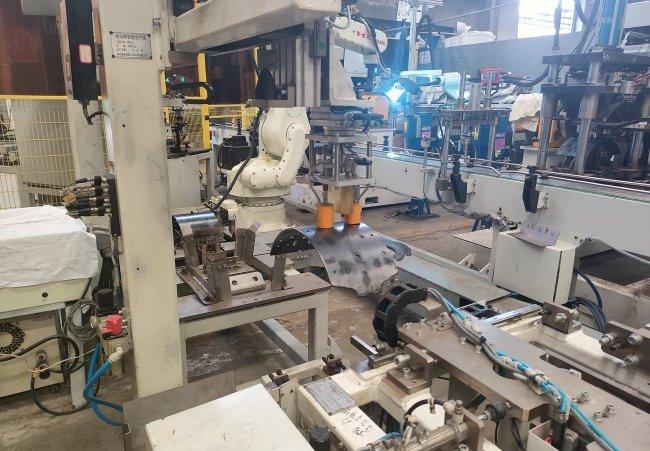

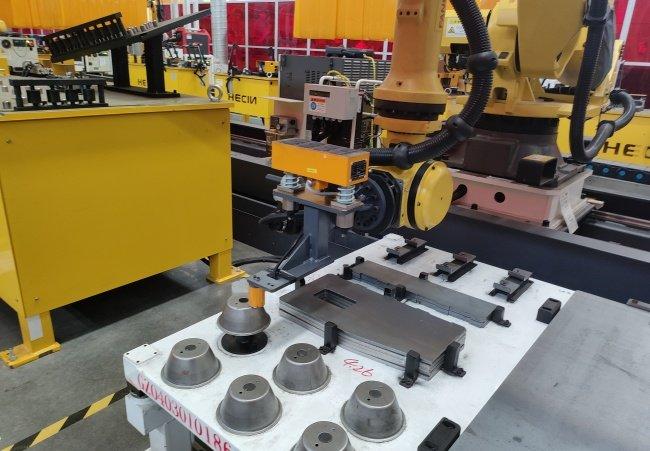

Pick and Place For Small Parts
End-of-Arm Tool for robot arms ensures a strong hold on small parts, allowing for quick and reliable loading and unloading in various applications.
This innovative solution not only boosts productivity but also enhances workplace safety, making it an ideal choice for industries that require efficient steel handling.
Your Site Related Products
One Stop Customized End-of-Arm Tool manufacturer in China
- We will provide customized solutions
- Complete qualification certification, exported to all over the world
- Quick response, both pre-sales and after-sales services are guaranteed
Theoretically, 16kg/CM2
The universal voltage used for our controller is AC380V and AC220V, with a frequency of 50/60HZ. If there are any other special voltage levels, please let us know first, and we can also customize it.
Sure, our company’s controllers are equipped with automatic control interfaces, which can be connected to your company’s control system through signal lines.
Our products are widely used in the field of automation, mainly including robot handling, gantry robot handling, positioning machine fixing, welding clamping, assembly fixtures, etc
