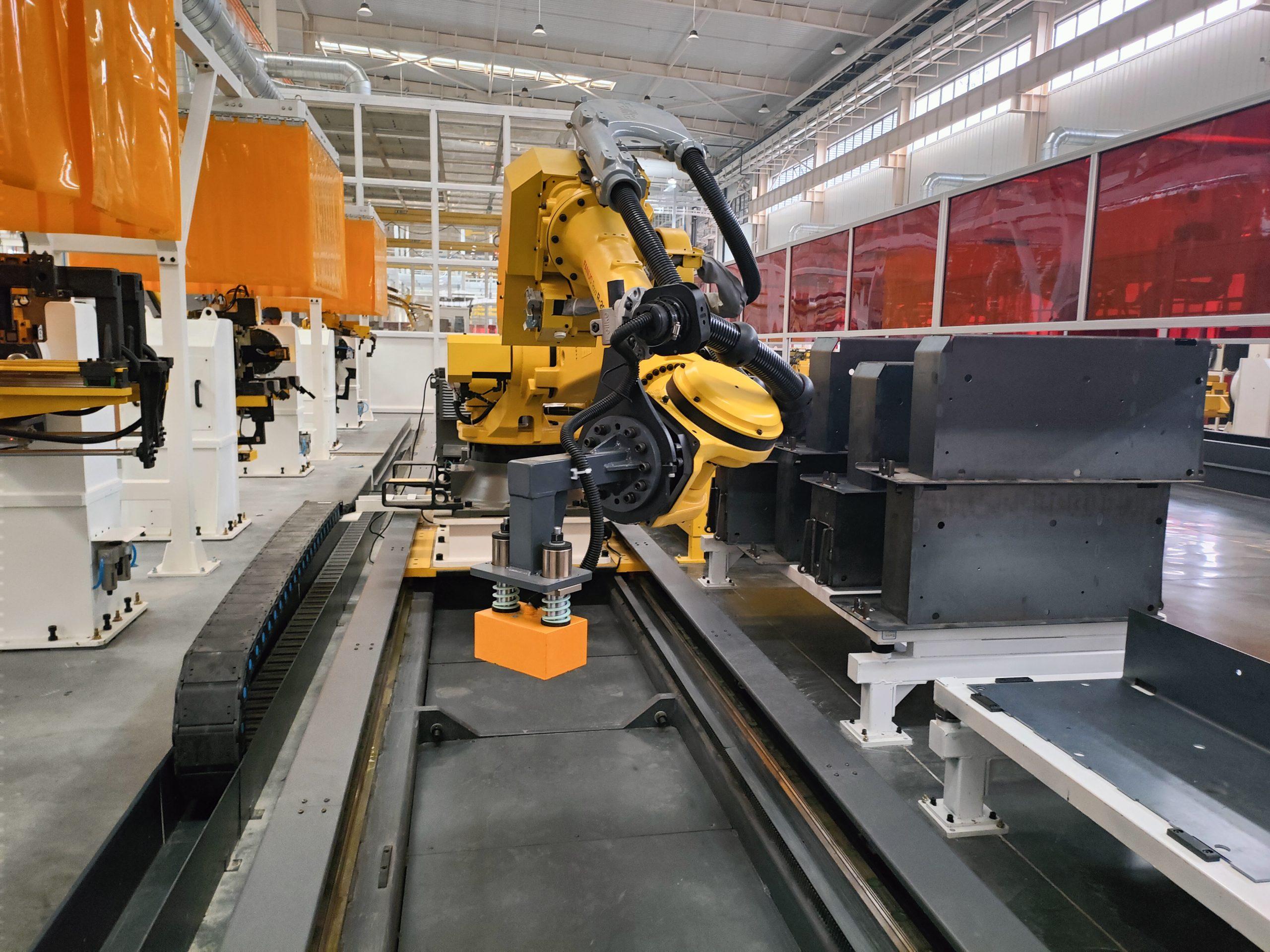

Bending Workpiece Magnetic Gripper in Automation Line
The stable fixation provided by magnetic grippers helps ensure that stamping molds can accurately process parts. It enables precise control of key parameters such as stamping depth and shape according to design requirements.
- Operating by automated control system, the labor intensity of operators has been reduced.
- Improvingproduction efficiency significantly.
- Strong magnetic force to prevent workpiece displacement.
- Ensure the reference edge of the part is closely aligned with the positioning edge of the mold.
- Magnets do not change their magnetic state when power failure.
- Control unit could be integrated to the PLC system of robot.
- For Thick plates
- For Thin Plates
- For Pipes&round bars
- Round shape magnent
| Model | Rated lifting force（thickness＞16mm) | Applicable thickness | L | W | H |
| HEPMP-1510P50 | 160kg | ≥6mm | 150mm | 100mm | 72mm |
| HEPMP-320P50 | 320kg | ≥6mm | 180mm | 180mm | 72mm |
| HEPMP-500P50 | 500kg | ≥6mm | 250mm | 180mm | 72mm |
| HEPMP-640P50 | 640KG | ≥6mm | 320mm | 180mm | 72mm |
| HEPMP-720P50 | 720kg | ≥6mm | 250mm | 250mm | 72mm |
| HEPMP-2012P70 | 320kg | ≥8mm | 190mm | 110mm | 72mm |
| HEPMP-2020P70 | 640kg | ≥8mm | 200mm | 200mm | 72mm |
| Model | Rated lifting force（thickness＞10mm) | Applicable thickness | L | W | H |
| HEPMP-30P30B | 30kg | 2-12mm | 100mm | 54mm | 58mm |
| HEPMP-60P30B | 60kg | 2-12mm | 100mm | 100mm | 58mm |
| HEPMP-100P30B | 100kg | 2-12mm | 140mm | 100mm | 58mm |
| HEPMP-200P30B | 200kg | 2-12mm | 260mm | 100mm | 58mm |
| HEPMP-300P30 | 300KG | 2-12mm | 260mm | 110mm | 58mm |
| HEPMP-60P30 | 60kg | 3-12mm | 110mm | 60mm | 58mm |
| HEPMP-1406P30 | 90kg | 3-12mm | 140mm | 60mm | 58mm |
| HEPMP-1817P30 | 300kg | 3-12mm | 180mm | 170mm | 58mm |
| HEPMP-1906P30 | 120kg | 2-12mm | 190mm | 60mm | 58mm |
| HEPMP-120P30 | 120KG | 2-12mm | 190mm | 60mm | 60mm |
| HEPMP-90P30 | 90KG | 2-12mm | 150mm | 60mm | 60mm |
| Model | Rated lifting force（thickness＞12mm) | Applicable thickness | L | W | H |
| HEPMSP-60P45×24 | 60kg | ≥3mm | 145mm | 90mm | 81mm |
| HEPMSP-100P45×24 | 100kg | ≥3mm | 200mm | 120mm | 81mm |
| HEPMP-2811S | 120KG | ≥3mm | 280mm | 110mm | 80mm |
| HEPMSP-200P45×24 | 200kg | ≥3mm | 370mm | 105mm | 81mm |
| HEPMSP-300P45×24 | 300kg | ≥3mm | 435mm | 105mm | 81mm |
| Model | Rated lifting force | Applicable thickness | Diameter | H | Weight |
| HEPM1-25 | 3KG | ≥2mm | 25mm | 35mm | 120g |
| HEPM1-40 | 20KG | ≥2mm | 40mm | 48mm | 420g |
| HEPM1-50 | 30KG | ≥10mm | 49mm | 45mm | 650g |
| HEPM1-60 | 50KG | ≥10mm | 60mm | 50mm | 1kg |
| HEPM1-75 | 90KG | ≥12mm | 78mm | 48mm | 1.5kg |
| HEPM1-100 | 150KG | ≥14mm | 100mm | 55mm | 3.5kg |

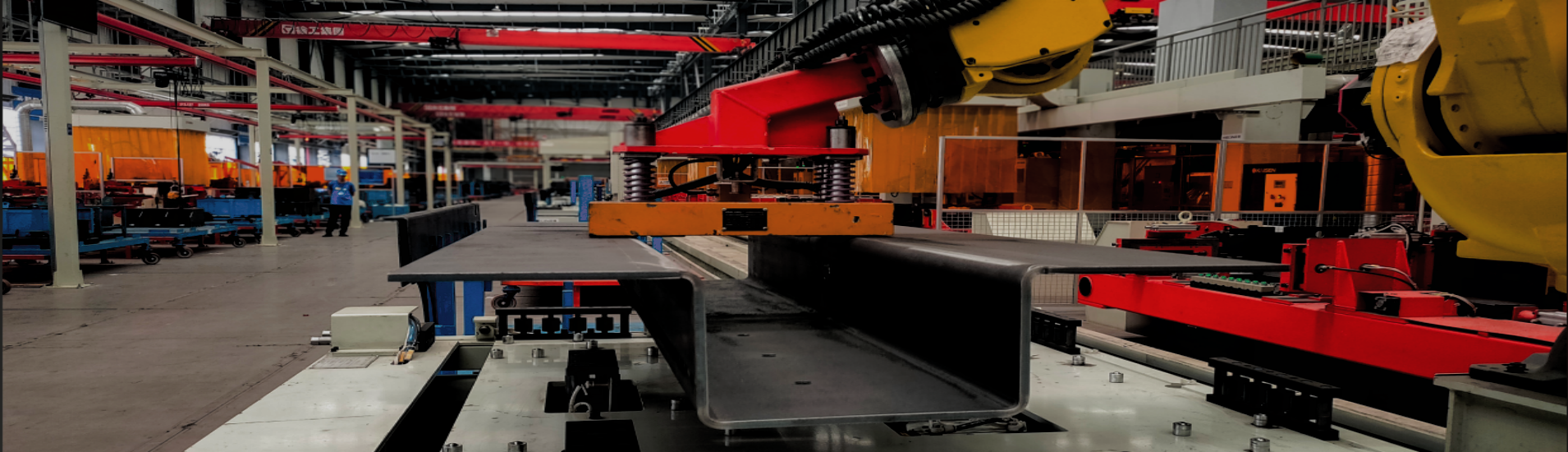

Stamping Part Holding Application

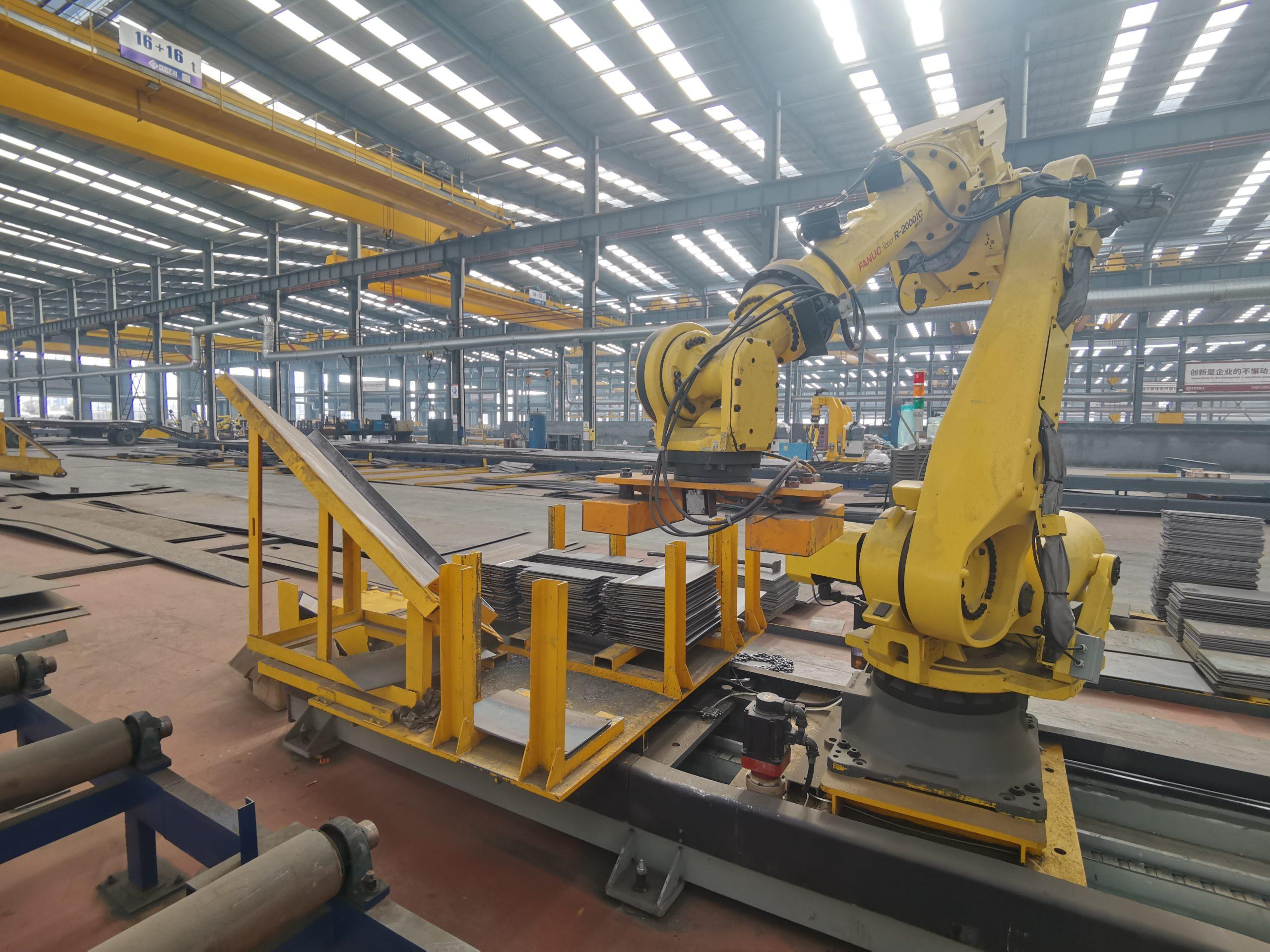

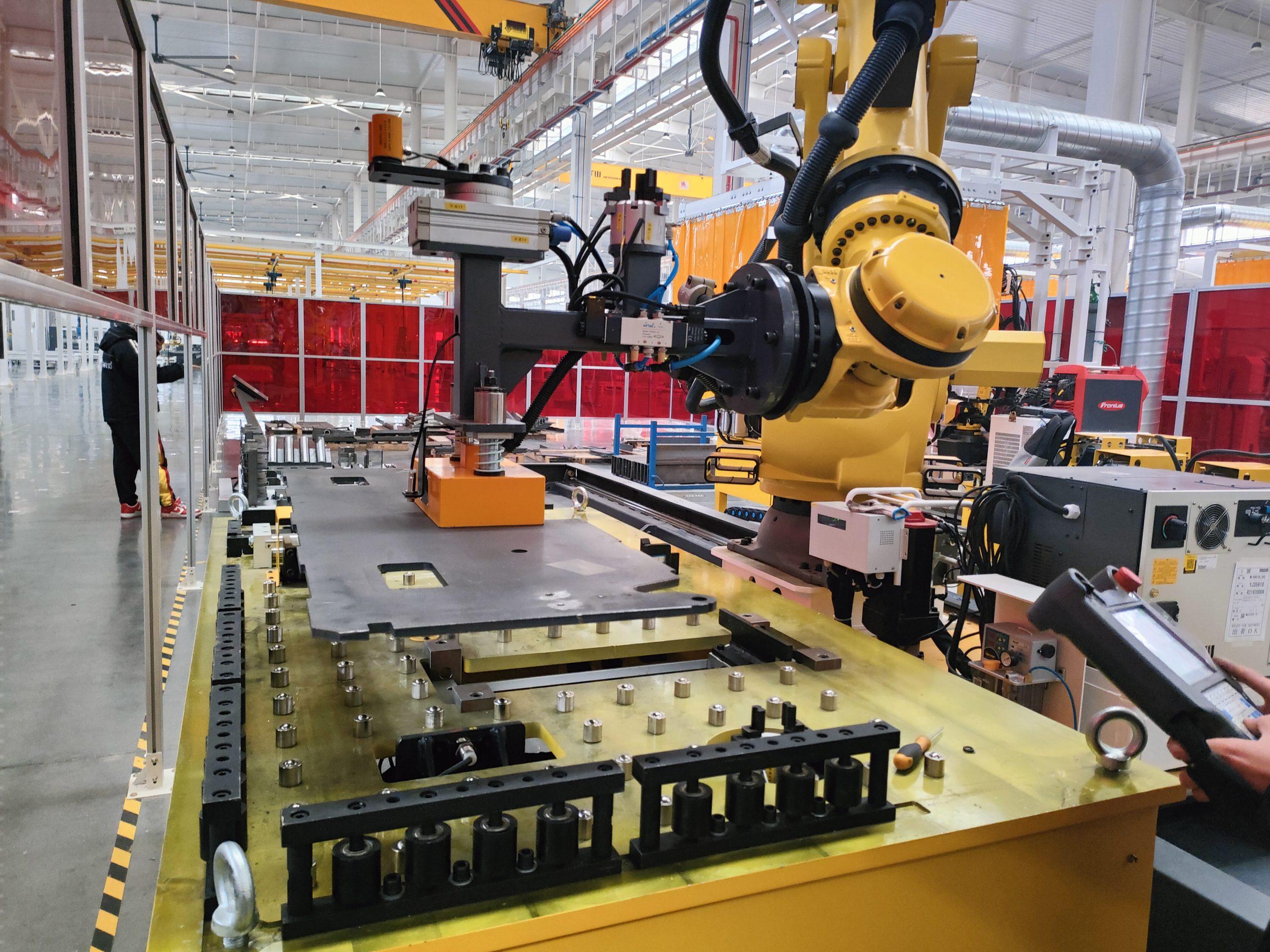

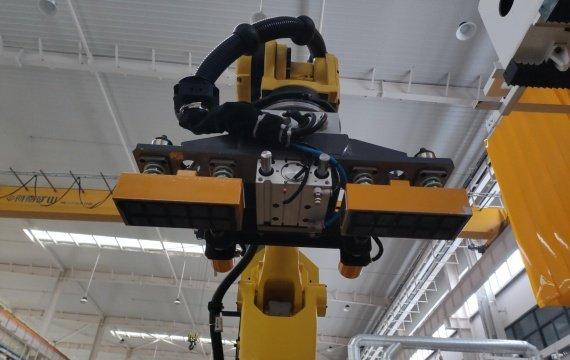

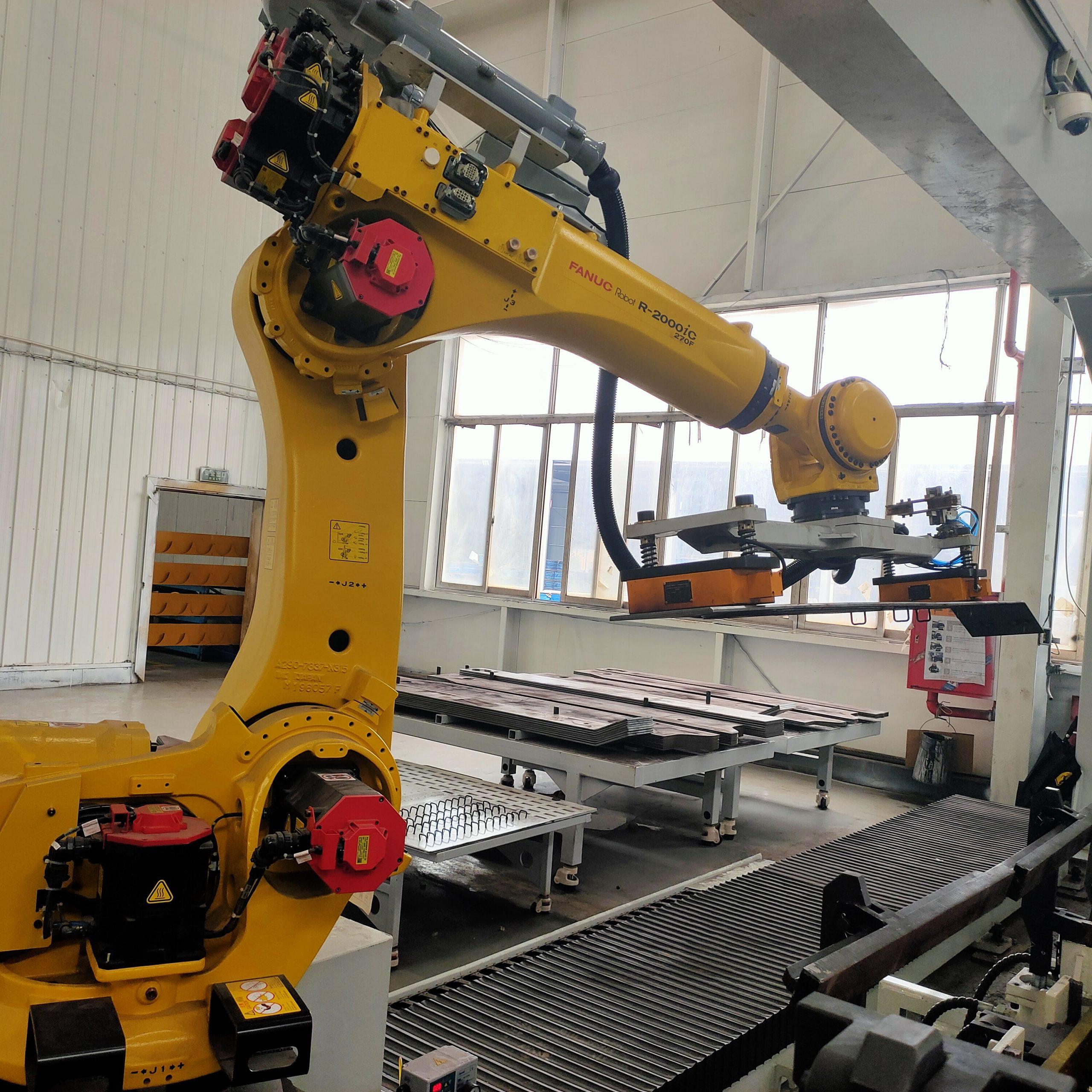

End-of-Arm Tool ensures a strong hold on steel plates, allowing for quick and reliable loading and unloading in various applications.
This innovative solution not only boosts productivity but also enhances workplace safety, making it an ideal choice for industries that require efficient steel handling.
Your Site Related Products
One Stop Customized Magnetic Gripper manufacturer in China
- We will provide customized solutions
- Complete qualification certification, exported to all over the world
- Quick response, both pre-sales and after-sales services are guaranteed
Under normal use, as long as the temperature does not exceed the allowable range, the magnetic field of the electro permanent magnet will decay by no more than 5% within 10 years.
Composed of neodymium iron boron, aluminum nickel cobalt, coils, magnetic poles, and other components. The most important thing is our technology.
Our company’s product standard maximum working temperature is 80 ° C. If it exceeds 80 ° C, it will have an impact on the electric permanent magnet magnetic force. Special high-temperature design is required.
Yes. Control unit could be integrated to the PLC system of robot.
No,Less energy consumption.Because it only uses electricity in MAG & DEMAG phase, saving energy up to 95%
