Magnetic Gripper for Automation Palletizing
Magnetic Gripper can be integrated with automated palletizing systems and robots to form efficient automation solutions and optimize production processes.
- Efficient continuous palletizing process, suitable for continuous operation requirements.
- Improvingpalletizing efficiency significantly.
- Less energy con
- Compact and powerful.
- Magnetic grippercan remain force even in a sudden power failure.
- For Thick plates
- For Thin Plates
- For Pipes&round bars
- Round shape
| Model | Rated lifting force（thickness＞16mm) | Applicable thickness | L | W | H |
| HEPMP-1510P50 | 160kg | ≥6mm | 150mm | 100mm | 72mm |
| HEPMP-320P50 | 320kg | ≥6mm | 180mm | 180mm | 72mm |
| HEPMP-500P50 | 500kg | ≥6mm | 250mm | 180mm | 72mm |
| HEPMP-640P50 | 640KG | ≥6mm | 320mm | 180mm | 72mm |
| HEPMP-720P50 | 720kg | ≥6mm | 250mm | 250mm | 72mm |
| HEPMP-2012P70 | 320kg | ≥8mm | 190mm | 110mm | 72mm |
| HEPMP-2020P70 | 640kg | ≥8mm | 200mm | 200mm | 72mm |
| Model | Rated lifting force（thickness＞10mm) | Applicable thickness | L | W | H |
| HEPMP-30P30B | 30kg | 2-12mm | 100mm | 54mm | 58mm |
| HEPMP-60P30B | 60kg | 2-12mm | 100mm | 100mm | 58mm |
| HEPMP-100P30B | 100kg | 2-12mm | 140mm | 100mm | 58mm |
| HEPMP-200P30B | 200kg | 2-12mm | 260mm | 100mm | 58mm |
| HEPMP-300P30 | 300KG | 2-12mm | 260mm | 110mm | 58mm |
| HEPMP-60P30 | 60kg | 3-12mm | 110mm | 60mm | 58mm |
| HEPMP-1406P30 | 90kg | 3-12mm | 140mm | 60mm | 58mm |
| HEPMP-1817P30 | 300kg | 3-12mm | 180mm | 170mm | 58mm |
| HEPMP-1906P30 | 120kg | 2-12mm | 190mm | 60mm | 58mm |
| HEPMP-120P30 | 120KG | 2-12mm | 190mm | 60mm | 60mm |
| HEPMP-90P30 | 90KG | 2-12mm | 150mm | 60mm | 60mm |
| Model | Rated lifting force（thickness＞12mm) | Applicable thickness | L | W | H |
| HEPMSP-60P45×24 | 60kg | ≥3mm | 145mm | 90mm | 81mm |
| HEPMSP-100P45×24 | 100kg | ≥3mm | 200mm | 120mm | 81mm |
| HEPMP-2811S | 120KG | ≥3mm | 280mm | 110mm | 80mm |
| HEPMSP-200P45×24 | 200kg | ≥3mm | 370mm | 105mm | 81mm |
| HEPMSP-300P45×24 | 300kg | ≥3mm | 435mm | 105mm | 81mm |
| Model | Rated lifting force | Applicable thickness | Diameter | H | Weight |
| HEPM1-25 | 3KG | ≥2mm | 25mm | 35mm | 120g |
| HEPM1-40 | 20KG | ≥2mm | 40mm | 48mm | 420g |
| HEPM1-50 | 30KG | ≥10mm | 49mm | 45mm | 650g |
| HEPM1-60 | 50KG | ≥10mm | 60mm | 50mm | 1kg |
| HEPM1-75 | 90KG | ≥12mm | 78mm | 48mm | 1.5kg |
| HEPM1-100 | 150KG | ≥14mm | 100mm | 55mm | 3.5kg |

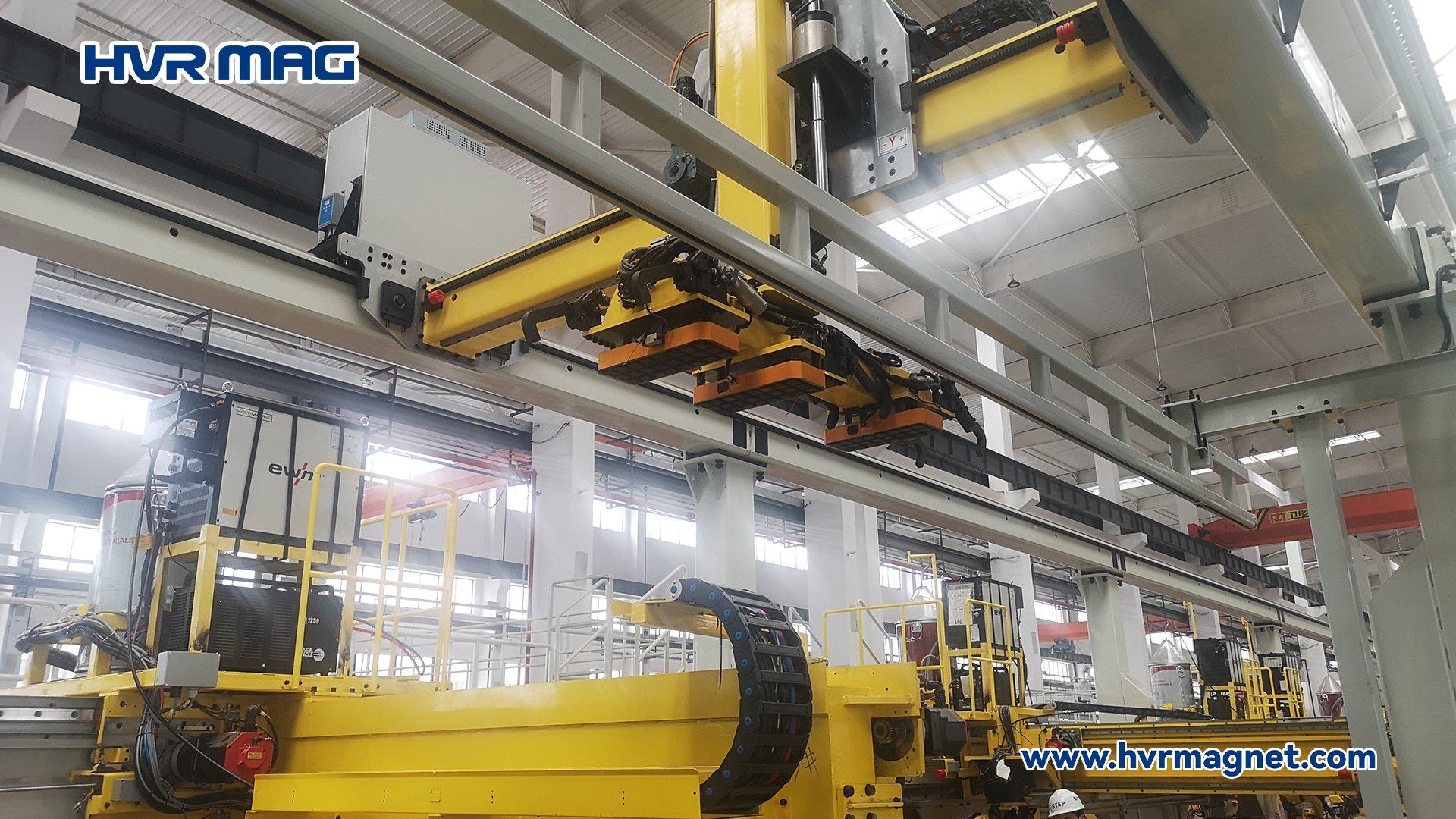

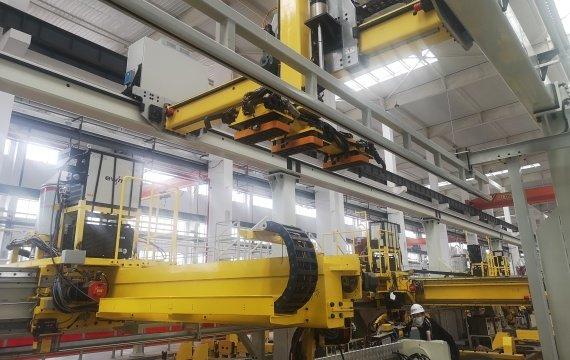

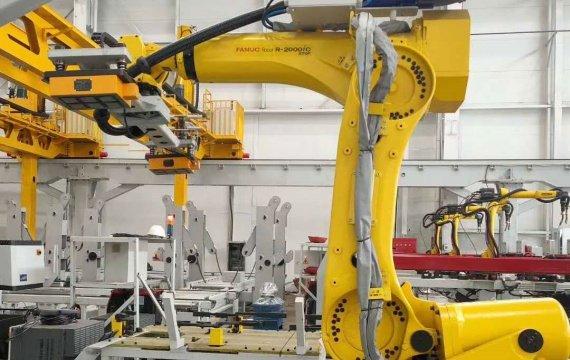

Palletizing Application
Automated magnetic gripper reduce reliance on manual labor, lower labor intensity, and improve production efficiency. And it can ensure the accurate positioning of items during the stacking process, improving the overall neatness and stability of the stack.

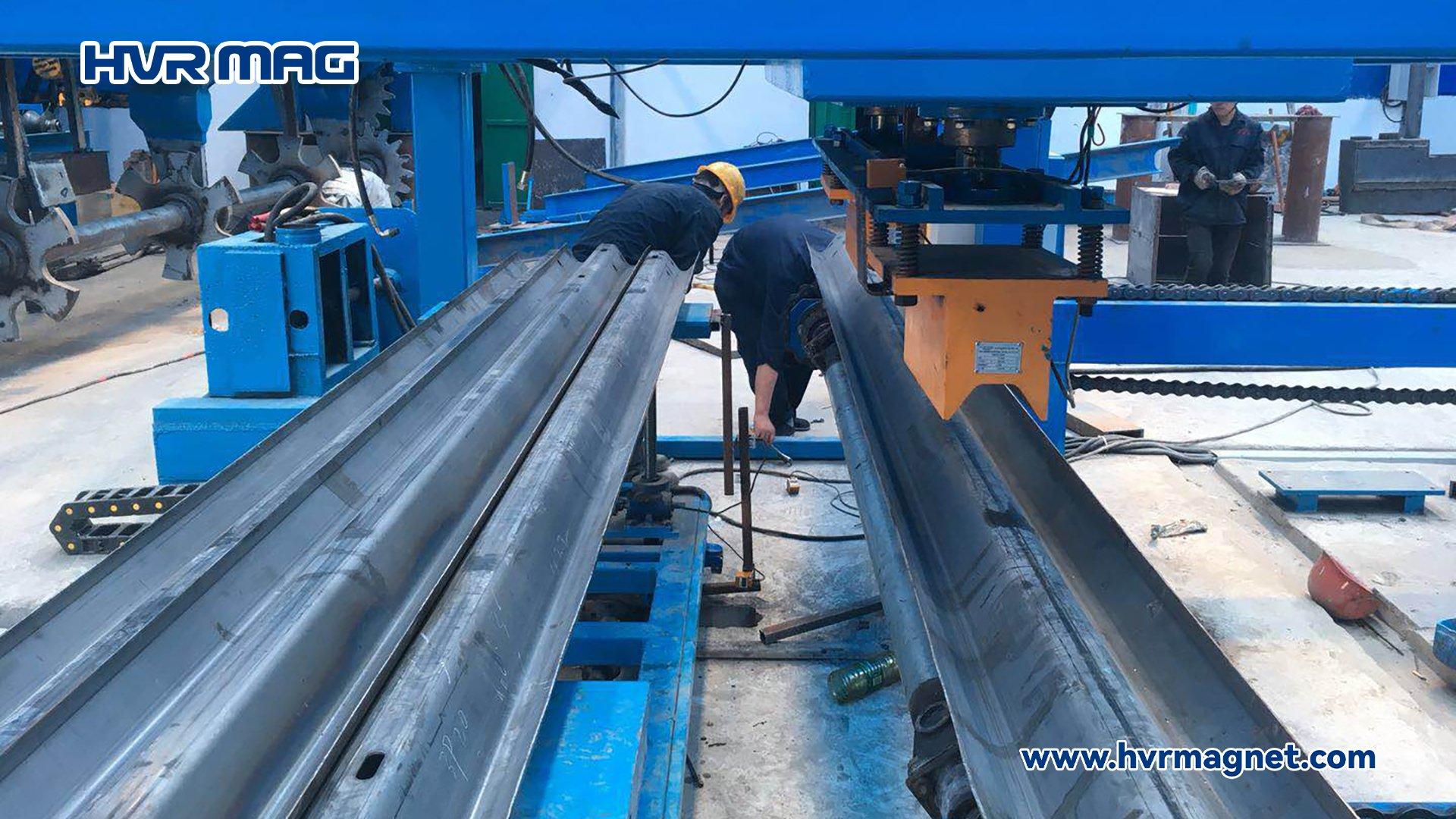

Palletizing Application
Magnetic gripper can ensure accurate positioning of items during stacking, improving the overall neatness and stability of the stack.Develop efficient automation solutions and optimize production processes.

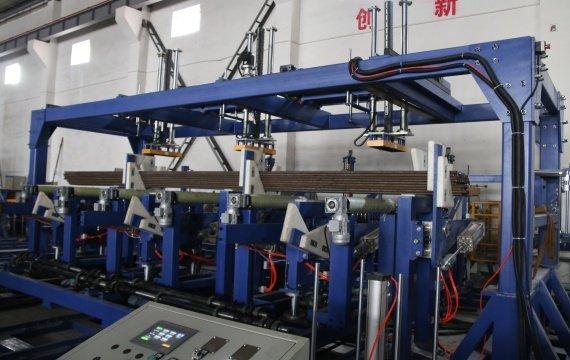

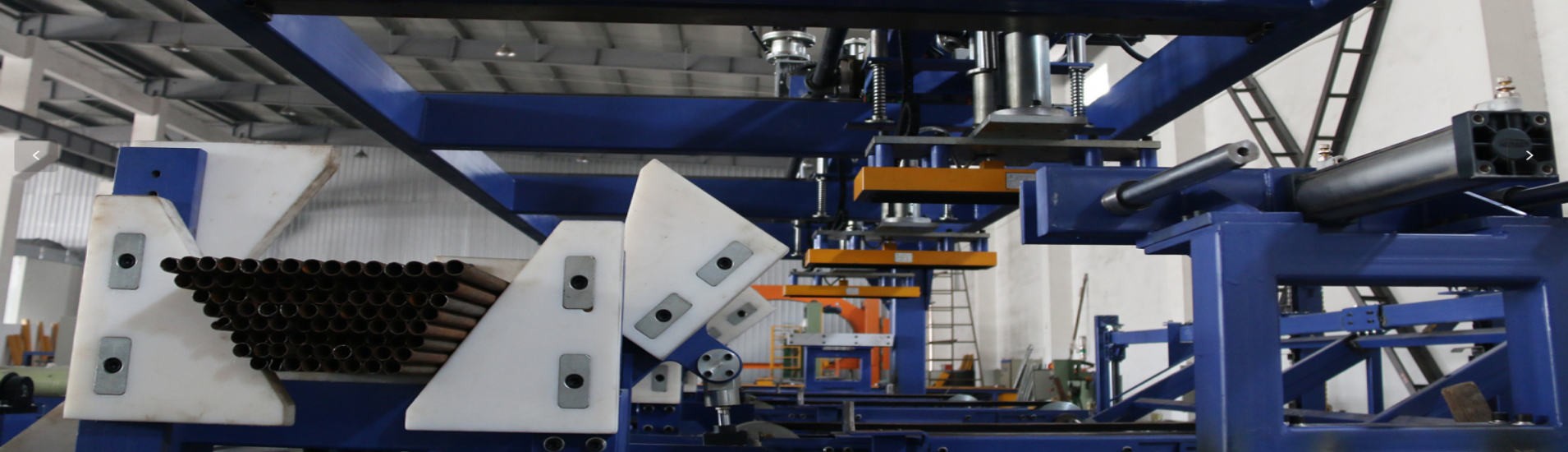

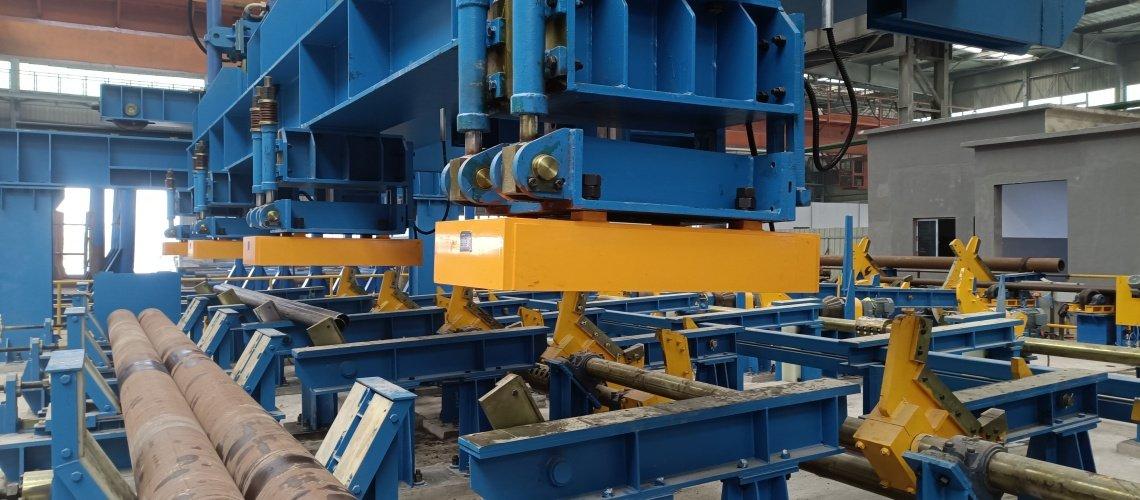

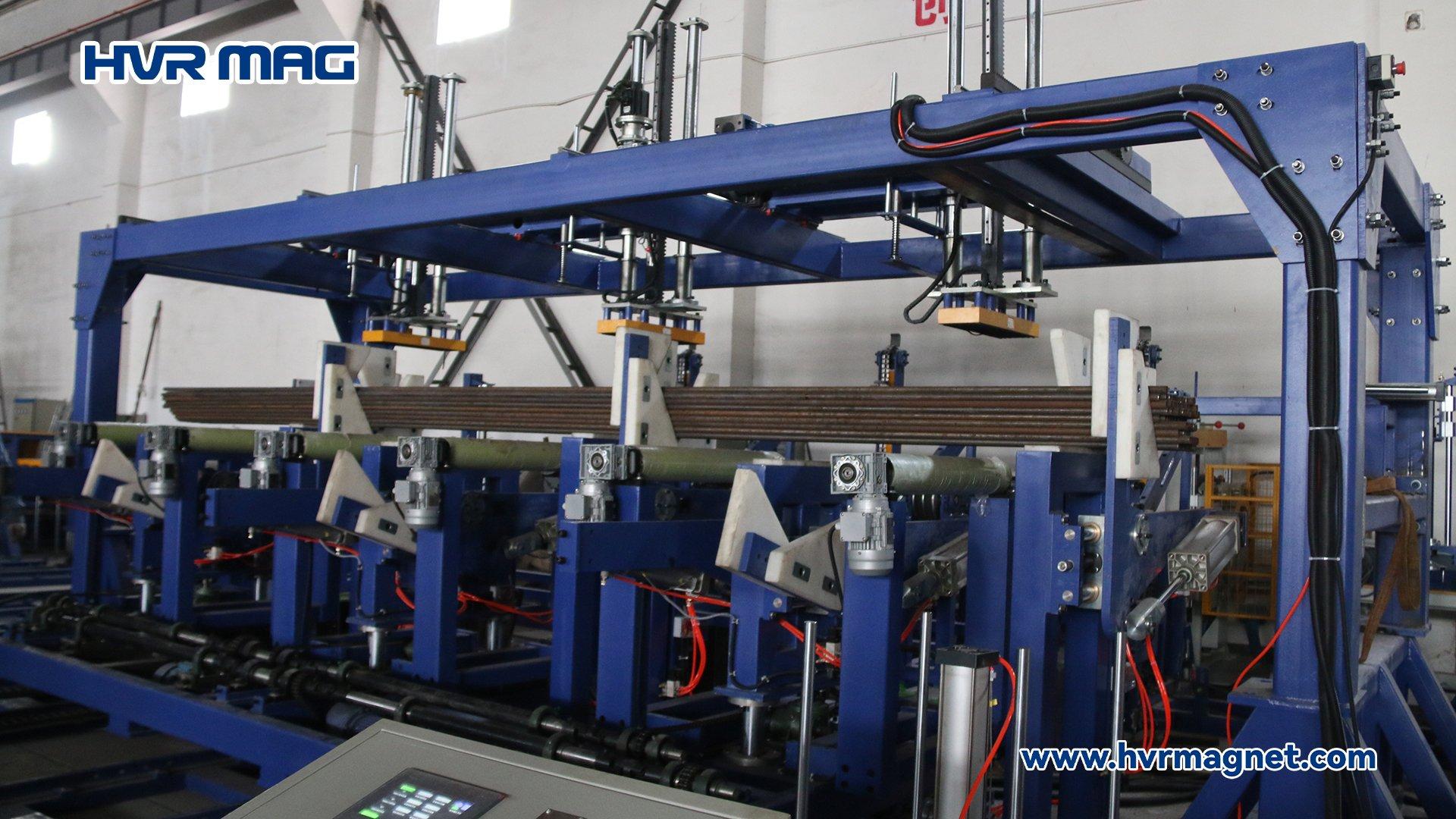

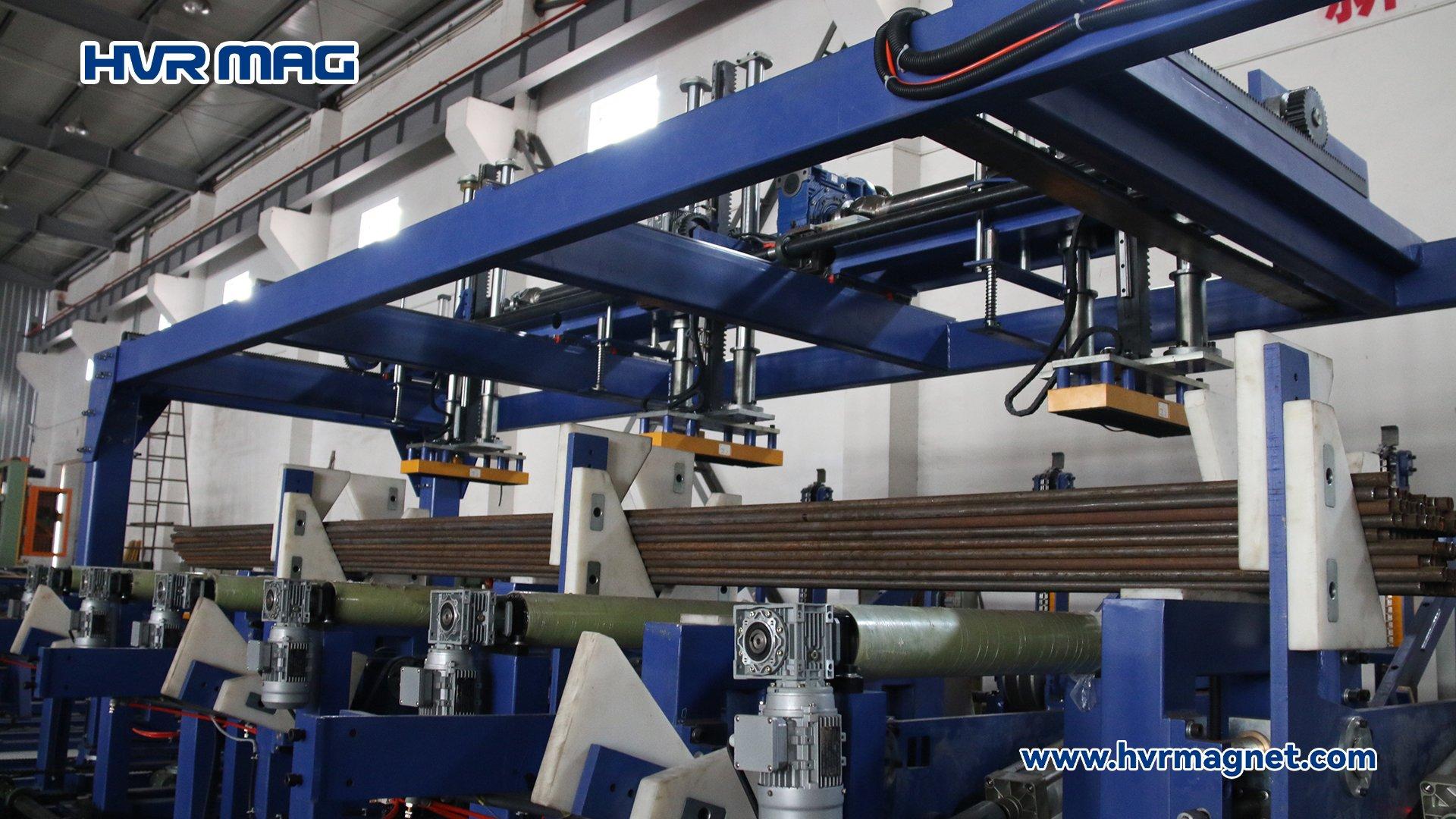

Tubes Palletizing Application
Magnetic Gripper is also suitable for tubes palletizing applications.Accurate positioning during the stacking process improves the overall neatness and stability of the stack.
Your Site Related Products
One Stop Customized Palletizing Magnetic Gripper manufacturer in China
- We will provide customized solutions
- Complete qualification certification, exported to all over the world
- Quick response, both pre-sales and after-sales services are guaranteed
- Detailed working applicationrequirements (whether there are special working application such as:Â turn over)
- The quantity of workpieces that need to be transported at once
- Dimensional information of the workpiece
- Range of weight of the workpiece
- The handlingFrequency(how long for a cycle)
NO,low-maintenance. There are no moving parts inside the magnet Just need to keep it clean and maintain the electric circuit well.
Yes. Control unit could be integrated to the PLC system of robot.
No,Less energy consumption.Because it only uses electricity in MAG & DEMAG phase, saving energy up to 95%
